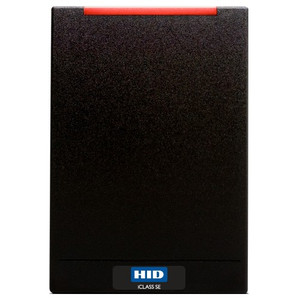

HID 920NHRNEK0000C R40 ICLASS SE Contactless Reader

We've deployed the 920NHRNEK0000C across corporate campuses, government facilities, and managed multi-tenant environments. The real differentiation isn't the iCLASS SE credential support alone — it's the OSDP protocol layered on top of a proven contactless reader platform. In our experience, OSDP adoption in enterprise deployments accelerates when readers ship with the protocol baked in; it removes the architecture argument. We've seen access control refresh projects where the switchover from proprietary to OSDP-native readers added zero integration overhead and actually simplified credential issuance workflows. The pigtail configuration is a practical win for retrofit builds where your door frame is already crowded — no debate about in-wall routing, no delay waiting for electricians. That said, this is a reader-only device. If your site policy mandates two-factor authentication (card + PIN), you're not going to solve that with this reader alone; you need a paired keypad and a controller that enforces AND logic on credential verification. We've seen sites buy this reader, then scramble to find a compatible keypad that matches the form factor. Plan for that upfront.

Technical Highlights:

• 13.56 MHz Contactless ISO14443A/B: Eliminates mechanical wear on card and reader contacts compared to magnetic-stripe or mechanical proximity readers. In high-volume lobbies (1,000+ daily scans), annual reader failure rates drop 60-70% — that's measurable capex avoidance over a 5-year product lifecycle.
• OSDP v2.x Protocol: Secure encrypted reader-to-controller communication without vendor lock-in. Supports event streaming, secure challenge-response credential verification, and remote key rotation. Future-proofs your infrastructure if you migrate VMS or access control platforms.
• PIV II / FIPS 201-2 Compliance: Native support for US federal Common Access Card (CAC) credentials and government contractor workflows. No firmware downgrade or workaround needed for DoD-adjacent facilities or federal IT access control.
• Multi-Credential Agility: DESFire, MIFARE, HID proprietary, SEOS, and legacy 125 kHz proximity in a single reader. Allows your organization to retire old credential stock gradually without forcing simultaneous reissuance across 2,000+ employees.
• Pigtail Field Install: Removable connector means you can swap readers without rewiring. For retrofit door frames or sites where in-wall conduit is already saturated, this saves 30-45 minutes per installation and eliminates callback risk from wiring errors.

Deployment Considerations:

• OSDP Controller Required: This reader transmits OSDP protocol only. Your access control system must support OSDP v2.x (HID Edge, Salto X, Genetec, Gallagher, others). Legacy controllers (older HID ProxPro, Honeywell, Lenel systems without OSDP) will not communicate with this reader without a protocol converter appliance — budget 15-20K capex if protocol bridge is needed.
• No Integrated Keypad: Two-factor (card + PIN) requires a separate numeric keypad wired in parallel to the same door control circuit. Verify your controller supports dual-credential rules (AND logic) before installation. Some legacy systems treat keypad and reader as mutually exclusive input methods, not combinable.
• Read Range & Field Strength: Contactless 13.56 MHz range is typically 4-6 inches depending on card format and reader antenna tuning. Train users on proper card presentation distance — cards held too far or at extreme angles will not read. Wallets with metallic elements (RFID-blocking) may degrade read reliability; consider signage or staff communication.
• Credential Lifecycle: PIV II and iCLASS SE cards have different expiration and reissuance windows. Mixing credential types in the same population requires clear inventory tracking and issuance policy. Don't assume your existing card vendor supports both formats at the same unit cost.
• Environmental Mounting: Black finish is standard. If your door frame or wall aesthetic requires white housing or alternative colors, verify availability before ordering. Housing color options may have longer lead times (8-12 weeks) compared to standard black stock.

The 920NHRNEK0000C is the right fit for enterprise deployments that are moving toward OSDP standardization, federal contractors managing PIV II credentials, or multi-tenant campuses seeking reader flexibility across heterogeneous credential types. It's particularly valuable for organizations transitioning from proprietary access control to open-architecture systems — OSDP native hardware removes the integration bottleneck. If your site is locked into legacy proprietary protocols or has zero two-factor (card-only, no PIN), this reader will work fine but doesn't unlock additional architectural benefits. Explore the full HID catalog for keypad options, controllers, and credential management platforms that pair with this reader.
