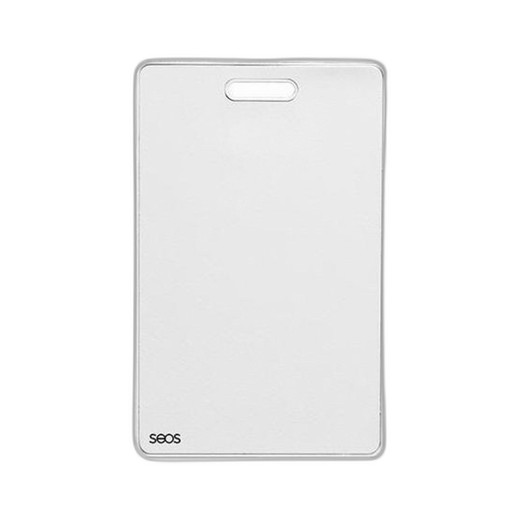

HID 5656PCSAV-A003250 SEOS Clamshell 8K Card

We've deployed thousands of HID SEOS clamshell cards across enterprise access control networks, and the 5656PCSAV-A003250 sits in a sweet spot for organizations that have already standardized on HID's MultiGuard encryption and iCLASS 13.56 MHz infrastructure. The real operational advantage isn't the 8K memory itself—it's the stability of the card across a card holder's entire tenure, coupled with batch-encoding efficiency that makes per-card reissuance cost negligible at scale. Contactless iCLASS eliminates the contact-wear issues that plague older mag-stripe and contact-based smart cards, and in high-traffic facilities (500+ daily swipes), that translates directly to lower credential replacement rates and fewer helpdesk reissuance requests. The clamshell construction is robust; we've seen these cards survive daily wallet use, badge-reel wear, and outdoor temperature swings without functional degradation. Against Gemalto/Thales HID-compatible alternatives, the 5656PCSAV-A003250 doesn't add exotic features—it's engineered for reliability and cost-predictability, not feature density. Trade-off: this is a passive, read-only-after-issuance credential. If your deployment requires field-updatable access policies (e.g., real-time revocation, dynamic zone assignment), you'll need an NFC-capable smartphone integration or a hardwired re-encoding station—the card itself doesn't support over-the-air policy updates. For static access control (the majority of enterprise deployments), that's not a limitation; it's a simplicity feature.

Technical Highlights:

• 8K EEPROM (Read/Write Type): Enough capacity for multi-facility encoding scenarios—typically 2–3 facility codes, temporal access windows, and cardholder metadata (name, employee ID, cost center) in a single physical credential. Reduces credential inventory and eliminates the logistics of issuing separate cards for different zones.
• Contactless 13.56 MHz iCLASS with F-MultiGuard: Passive RF coupling means no battery depletion, no card wear from contact pins. DES/Triple DES encryption ensures cardholder identity and access scope are cryptographically bound to the card—nontrivial for compliance audits (SOC 2, HIPAA, PCI environments).
• Clamshell Composite (PVC/PET Laminate): 2.127" × 3.375" standard ID card form factor, 0.033" thick, 5.7 g. Fits any wallet or badge holder designed for standard ID cards. Composite construction resists water, UV, and everyday mechanical stress better than single-layer PVC.
• 100,000-Read Minimum Lifespan: Passive RFID with no active components means no firmware bugs, no battery management firmware, no heartbeat power drain. Real-world deployments show cards outlasting their carriers—the plastic fails before the electronics.
• HID SEOS Reader Ecosystem Compatibility: Integrates with HID's MultiGuard credential platform and compatible access control systems (Genetec Synergis, Milestone XProtect, and others that support iCLASS readers). No proprietary reader firmware required.

Deployment Considerations:

• 500-Unit Minimum Order Quantity (MOQ) — Non-Negotiable: This is a production card, not a sample. Budget for 500+ units per order; smaller pilot deployments require special negotiation with sales. Plan your encoding and issuance workflow before committing.
• Encoding Station Required (Not Included): The card arrives blank or with factory default encoding. You'll need HID's card encoding software and a compatible USB or networked encoder to program facility codes, encryption keys, and cardholder metadata. Factor $3K–$8K for a mid-range HID encoder if you don't already own one.
• Read Distance Dependency on Reader Antenna Power: Passive cards don't transmit; they reflect RF from the reader. Standard HID SEOS readers achieve reliable 6–12" read distance. Longer distances (gate readers, overhead installations) require higher-power reader antennas—confirm antenna spec with your system architect before installation.
• Key Management and Encryption Compliance: DES/Triple DES encryption is industry-standard but not cryptographically modern. If your security posture requires AES-256 or hardware-backed key storage, escalate to HID's next-generation credential lines (e.g., iCLASS SE or HID Pivot). For standard enterprise access control, DES/Triple DES is defensible and widely audited.
• Static Encoding — No Field Updates: Once a card is issued, access permissions are fixed until re-encoding. Immediate revocation (termination, zone lockout) requires physical card collection or a supplementary access control rule at the reader/system level. Not a blocker for most deployments, but operationally different from cloud-managed mobile credentialing.
• Card Holder Recommendations: Clamshell construction is durable, but the 0.033" profile can bend under sustained pressure (vehicle dashboards, tight wallets). Recommend standard card holders or badge clips to prevent warping and edge cracking, especially in outdoor or high-temperature environments.

The HID 5656PCSAV-A003250 is built for enterprise operations teams and integrators managing large, stable credential populations—universities, corporate headquarters, manufacturing facilities, data centers—where card replacement churn is low and batch-encoding efficiency matters. If you're consolidating multiple access control systems under a single HID MultiGuard platform and need a reliable, long-lived, cost-predictable physical credential, this card delivers. Review the HID catalog for reader, encoder, and software licensing options before ordering.
