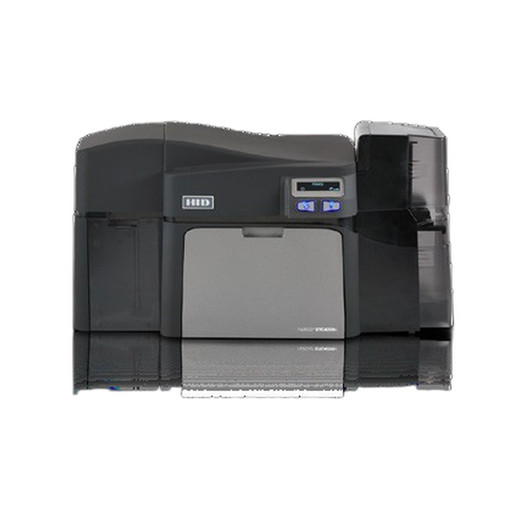

HID 52210 DTC4250e Card Printer-Encoder
The HID 52210 is a single-side card printer-encoder designed for enterprise credential production environments requiring integrated magnetic stripe encoding. This desktop-class system combines direct-to-card printing with ISO magnetic stripe encoding in a compact form factor, supporting USB and Ethernet connectivity for flexible network deployment.
Overview
The DTC4250e 52210 delivers straightforward card personalization for organizations managing access credentials, employee badges, and visitor identification. Single-side printing with simultaneous ISO magnetic stripe encoding eliminates multi-station workflows, reducing operational complexity and production time. The unit supports standard input and output card handling, making it suitable for mid-volume credential operations in security integrations, corporate identity programs, and institutional badge systems.
Key Features
- Single-Side Printing: Direct-to-card printing on one side per pass
- ISO Magnetic Stripe Encoder: Integrated MAG encoder for encoded credential data
- USB Connectivity: Direct connection to workstations and credential management systems
- Ethernet Connectivity: Network-based printing and encoding for multi-user environments
- Standard Input/Output: Single-side input and output card management
- Desktop Form Factor: Compact design for integration into existing badge offices and credential centers
Integration & Compatibility
The HID 52210 supports both USB and Ethernet interfaces, enabling integration with credential management platforms, badge software suites, and identity verification systems. USB connectivity serves direct workstation printing, while Ethernet deployment supports centralized credential production facilities managing multiple badge stations. The integrated ISO magnetic stripe encoder writes track 1, track 2, and track 3 data, supporting common access control and identification protocols used across door readers, time and attendance systems, and point-of-sale terminals.
Security integrators deploying the 52210 benefit from compatibility with standard Windows-based credential applications and industry-standard card formats. The single-side printing model simplifies credential design workflows, reducing the design-to-production cycle for organizations requiring rapid badge issuance or badge replacement programs.
Physical Specifications
The DTC4250e 52210 is engineered as a desktop production unit suitable for badge offices, security operations centers, and credential management facilities. Its compact footprint minimizes space requirements while maintaining robust card handling and encoding reliability. The system processes standard ISO/IEC 7810 ID-1 cards (3.375 × 2.125 inches) and supports plastic card stocks commonly used in enterprise credential programs.
Organizations implementing the HID 52210 should verify compatibility with their existing credential management software, card stock specifications, and IT network infrastructure. Deployment of Ethernet-connected units requires standard network access and DHCP or static IP configuration. USB-connected installations require Windows-compatible drivers and credential application software licensed for the intended badge volume.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the HID 52210 during credential system assessments for mid-sized security integrations, particularly where clients needed to consolidate badge printing and magnetic encoding into a single production unit. The 52210 eliminates the operational friction of managing separate printers and encoders, which matters significantly when throughput is measured in hundreds of badges per week rather than thousands.
Technical Highlights:
- Single-Side Printing with Integrated MAG Encoding: The 52210 combines direct-to-card printing and ISO magnetic stripe encoding in one pass, reducing card handling cycles and speeding badge issuance.
- Dual Connectivity (USB + Ethernet): USB deployment serves small badge offices; Ethernet enables centralized credential production for larger facilities or multi-location environments.
- ISO MAG Encoder Compatibility: Support for standard track data encoding ensures integration with existing access control readers and identity verification infrastructure.
Deployment Considerations:
- The single-side format requires careful credential design—verify that your badge template fits the available print area and accommodates security features (holograms, microprinting) on the reverse side if needed.
- Network deployment of the 52210 in multi-user environments benefits from print queue management and access logging; ensure your credential management software supports these functions.
- Magnetic stripe encoding requires regular maintenance and cleaning of the encoder head to prevent data read failures at door readers and time clocks; factor preventive service into your operational plan.
The 52210 is a solid choice for integration into credential programs where consolidation, simplicity, and reliable magnetic encoding are priorities. It's not positioned for ultra-high-volume environments or complex dual-side designs, but for standard badge production it performs as expected. I'd recommend it for security integrators managing credential refresh cycles and for organizations standardizing their badge infrastructure.
