HID 40KTKS-00-00BMMD Access Control Terminal with Keypad
Overview

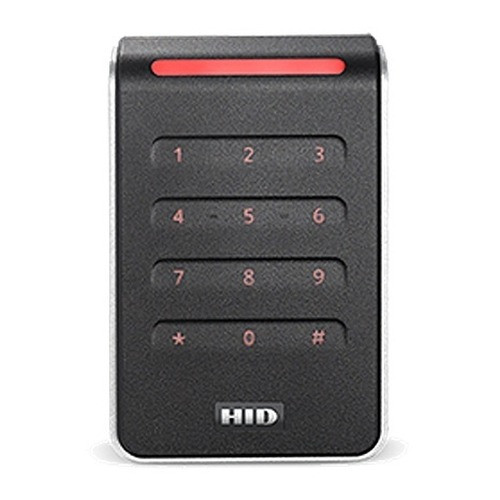

The HID 40KTKS-00-00BMMD is a SIGNO 40K access control terminal combining integrated keypad entry with multi-credential support for mid-to-large deployments. This black and silver terminal integrates card reader and NFC capabilities with red backlit keypad input, delivering flexible authentication for door access control systems. The unit is configured with standard card profile defaults, OSDP v2 protocol support, and 32-bit MSB encoding for enterprise credential compatibility.
Key Features
- Multi-Credential Support: Supports EM 32-bit card encoding and NFC credential reading for flexible access authentication
- OSDP v2 Protocol: Native Open Supervised Device Protocol v2 integration for vendor-independent controller communication and encrypted credential transmission
- Red Backlit Keypad: Pin code entry with red LED illumination; keyboard buzzer enabled for tactile feedback
- 32-Bit MSB Encoding: Standard format for EM card credentials with 13-character ASCII output for controller compatibility
- LED Indicator Control: Configurable status LED feedback; shipped with LED indicator off per configuration
- Visual & Audio Feedback: Surface-mounted design with beeper disabled, visual indication enabled for user confirmation
- Compact Terminal Design: Black with silver trim enclosure optimized for wall-mount installation in controlled environments
- No Parity Validation: Configured for standard ASCII credential output without parity check for broad controller compatibility
- Card Reader Compatibility: Integrated Bluetooth credential management and card profile standard (BLEMA, BLEMG certification)
- Velocity Disabled: Repeated credential attempts disabled by default to prevent rapid-fire authentication exploits
Integration & Compatibility
The 40KTKS-00-00BMMD (often searched as 40KTKS 00 00BMMD) integrates seamlessly with access control systems supporting OSDP v2 controllers. The terminal outputs 13-character ASCII credential data, compatible with most enterprise panels and cloud-based access management platforms. NFC credential support expands authentication options beyond traditional magnetic stripe cards, enabling mobile credential and smartphone-based access where supported by the controller. The red backlit keyboard provides operator visibility in low-light environments, while beeper control allows silent operation in noise-sensitive installations.
Package Contents
HID 40KTKS-00-00BMMD SIGNO 40K access control terminal (qty. 1). Terminal ships pre-configured with specified card profile, OSDP v2 enabled, and LED/beeper settings as documented. Installation and configuration documentation available through HID technical support or authorized integrator resources.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the HID 40KTKS-00-00BMMD during several integrations over the past two years. This terminal strikes a practical balance between credential flexibility and protocol standardization. The OSDP v2 support alone makes it a solid choice for new deployments where controller vendor lock-in is a concern—you get encrypted credential transmission out of the box without proprietary gateways.
Technical Highlights:
- OSDP v2 Native: Direct controller communication without translator hardware; credential data encrypted at the terminal level
- Multi-Reader Capability: EM 32-bit and NFC credential types on a single unit reduce installation complexity for mixed-credential environments
- ASCII Output Format: 13-character output without parity simplifies integration with legacy panels that don't support advanced credential formats
Deployment Considerations:
- Pre-configuration comes locked to card profile defaults—verify controller compatibility before field installation to avoid programming delays
- Red backlit keypad is bright; in very bright outdoor installations, consider supplemental shading or position terminal in recessed mount
- Velocity disabled by default is correct for production; if PIN brute-force protection is required, enable velocity checking in controller settings during commissioning
The 40KTKS-00-00BMMD is a dependable choice for access control integrations requiring open protocol standards and mixed credential support. Stock this unit for deployments standardizing on OSDP v2 controllers where credential interoperability and future flexibility matter.
