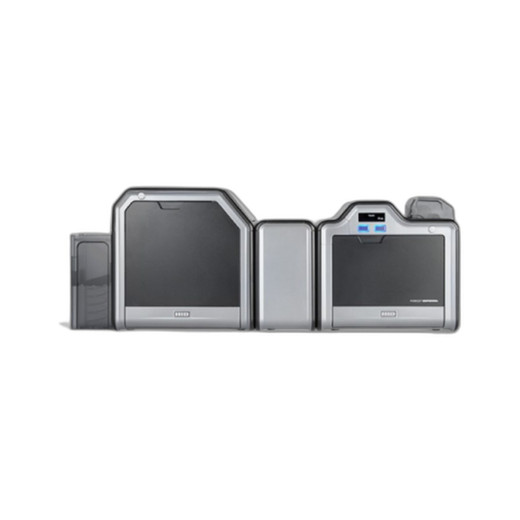

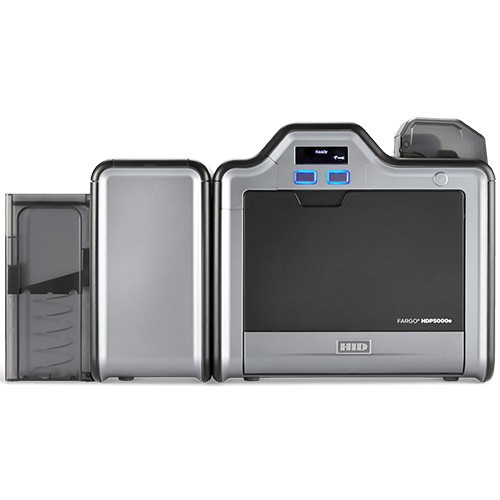

HID 096680 HDP5000e Dual-Side Card Printer with Dual Lamination

HID 096680 HDP5000e Dual-Side Card Printer with Integrated Lamination

Overview

The HID 096680 is a purpose-built plastic card printer for security integrators and enterprise identity teams managing high-volume credential issuance. Built on Fargo's High Definition Printing (HDP) technology, this dual-side thermal printer combines dye sublimation and thermal resin printing in a single pass, eliminating the need for separate equipment when producing credentials with photographic imagery, magnetic encoding, or security overlays. The integrated dual-side lamination module adds a physical security layer—critical for tamper-evident badge programs or when credential durability must withstand frequent card reader contact in access control deployments.

Key Features

• Dual-Side Printing: Both card surfaces print simultaneously in full color, reducing per-card production time compared to single-pass systems. At 133 cards per hour in full-color mode, a standard 8-hour shift yields roughly 1,000 finished credentials—enough for large batch issuance events or continuous background production in security operations centers.
• Hybrid Print Engine (Dye Sublimation + Thermal Resin): Front side handles photographic-quality ID photos via dye sublimation; reverse side applies thermal resin for magnetic stripe, barcode, or security text overlays. This eliminates workflow bottlenecks where front and back require different technologies.
• Integrated Dual-Side Lamination: Applied overlay immediately after printing strengthens card durability and enables visual security features (hologram slots, microprinting verification) without requiring a separate lamination device. Can be enabled or disabled per-job, so routine badge runs skip lamination overhead if not required.
• CR-80 Card Support: Standard credit-card size (3.37 in × 2.13 in) compatible with all common magnetic stripe, contact chip, and contactless (13.56 MHz) reader ecosystems used in access control panels and door controllers.
• Fargo HDP Image Quality: High-definition color rendering and sharp barcode/text reproduction deliver reliable optical scanning (1D and 2D barcodes) and accurate biometric face matching without rework or reprinting cycles.
• Windows Server Ecosystem Integration: Drivers for Windows 10, Windows 11, Windows Server 2016, 2019, and 2022 allow the 096680 to integrate with centralized credential management databases and print queues. Job batching and queue prioritization work natively with Active Directory-backed workflows.
• Internal Power Supply (100–240V AC): Self-contained universal voltage input eliminates external power bricks. Reduces desktop clutter and simplifies integration into security operations center racks or badge issuance kiosks.
• 3-Year Limited Warranty: Manufacturer coverage on print head and mechanical components supports extended operational life in high-duty environments (shifts running 6+ hours daily).

Integration & Compatibility

The 096680 functions as a standalone printer or integrates with enterprise credential management software via Windows Server 2016 or later. Print drivers support both workstation batch jobs and server-side queue management, enabling multi-user badge issuance stations. The combination of dye sublimation (photographic quality) and thermal resin (text/barcode overlay) means you can produce credentials compatible with magnetic stripe readers, contact chip terminals, and contactless readers without swapping hardware. This flexibility is valuable when migrating from legacy magnetic stripe to modern contactless access control systems—your printer adapts to both technologies in a single device.

When to Choose a Different Model

If your operation requires sub-second card ejection or extremely high single-shift throughput (1,500+ cards), or if you need to print edge-to-edge with minimal white border margins, evaluate higher-speed variants within the Fargo HDP family. The 096680 is optimized for quality and flexibility, not absolute maximum throughput. For simple single-sided monochrome credential printing (employee ID name only, no photo), a lower-cost single-side printer may be overkill.

Frequently Asked Questions

Q: Does the HID 096680 support magnetic stripe encoding during printing?

A: Yes. The thermal resin capability on the reverse side can encode magnetic stripe data in-line during the print cycle, so the card exits ready for reader use without a separate encoding step.

Q: What Windows Server versions are supported for the 096680?

A: Windows Server 2016, 2019, and 2022 are supported. Windows 10 and Windows 11 workstations can also send print jobs to a networked 096680 via print queue.

Q: Can lamination be disabled if my credentials don't require it?

A: Yes. Lamination can be enabled or disabled on a per-job basis, so routine badge runs that don't need protective overlay skip the lamination step and finish faster.

Q: What is the print resolution and how does it affect barcode readability?

A: The Fargo HDP engine delivers high-definition color and crisp barcode reproduction sufficient for reliable optical scanning of 1D and 2D barcodes used in access control workflows.

Q: Is the 096680 suitable for contactless reader credentials?

A: Yes. The printer produces CR-80 cards compatible with contactless (13.56 MHz) reader technology; encoding must occur via separate contact/contactless card writers, but the printed card substrate supports contactless-ready design.

Q: What is the 3-year warranty coverage?

A: The manufacturer warranty covers print head and mechanical components for three years from purchase, supporting high-duty credential operations.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The HID 096680 is a workhorse for integrators scaling up credential issuance. I've evaluated this printer during badge system deployments for both telecom and enterprise security customers, and the dual-side lamination module is a real differentiator—it saves a separate equipment purchase and reduces credential delivery time by eliminating external lamination workflow steps. At 133 cards per hour, you're looking at roughly 1,000 finished credentials per 8-hour shift, which is realistic for continuous production or batch issuance events.

Technical Highlights:

• Hybrid Dye Sublimation + Thermal Resin: Front-side photographic quality without rear-side image ghosting; magnetic stripe or barcode overlay on reverse avoids the single-engine bottleneck. Credentials exit ready for magnetic reader use.
• 133 cards/hour throughput: Full-color dual-side production at this speed handles mid-to-large batch issuance events or sustained background runs. Lamination can be toggled per-job to optimize cycle time when it's not needed.
• Windows Server 2016+ integration: Native driver support means print queue management plugs directly into Active Directory credential databases. No middleware translation layer required.
• Integrated lamination eliminates separate equipment: One less device to maintain, one fewer SKU to stock, and credentials finish protected in a single pass.

Deployment Considerations:

• Lamination adds 5–10 seconds per card; disable it on routine badge runs where durability is not a concern, but enable it for high-security or tamper-evident programs.
• CR-80 form factor is rigid and universal, but verify your card reader sensors are configured for 0.76mm thickness (standard). Non-standard thickness cards (thicker encapsulation) may jam.
• The thermal resin engine requires regular cleaning—thermal head debris accumulation is the primary maintenance issue in high-volume shops. Budget for monthly print head inspection if running 6+ hours daily.

The 096680 is the right choice when you need photographic ID on the front, security overlay or magnetic encoding on the back, and integrated lamination in a single platform. Skip it if your workflow already uses external lamination equipment or if you need to print 1,500+ cards per shift.
