Overview

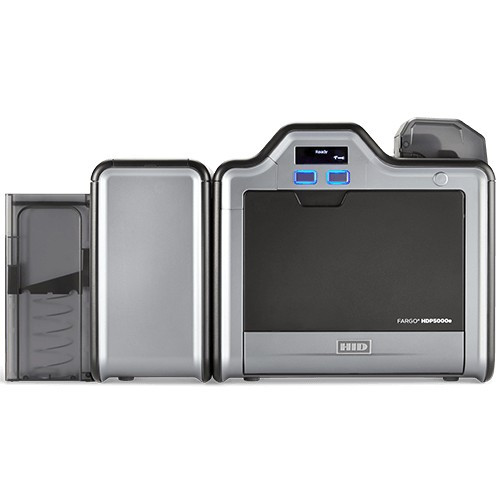

The HID 096640 HDP5000e is a professional-grade dual-sided card printer engineered for high-volume credential issuance in enterprise security, access control, and identity management environments. Built on HID's proven Fargo High Definition Printing (HDP) platform, the HDP5000e delivers simultaneous front and back printing in a single pass, eliminating the slower dual-feed workflow that slows throughput on single-pass-only competitors. This base model is purpose-built for badge programs, visitor credentials, parking permits, and secure identity applications where consistent, durable card output directly supports access control and compliance workflows.

Key Features

• Duplex Printing in One Pass: Simultaneous front and back printing eliminates the need for dual card feeds or manual flipping, reducing operator handling time and shrinking total production time per batch — a critical advantage when credential demand spikes during onboarding cycles or facility expansions.
• Print Speed of 133 Cards per Hour (YMC Color): Delivers 133 full-color cards per hour in standard color mode, or 109 cards per hour with additional black resin layer (YMCKK) for enhanced text and barcode durability. At this throughput, a single printer can produce 1,000+ credentials in a standard workday, handling enterprise-scale issuance without bottlenecks.
• Hybrid Dye-Sublimation and Thermal Resin Engine: Dye-sublimation produces smooth, photographic color gradients for ID photos and security backgrounds, while thermal resin deposits crisp, smudge-resistant text, barcodes, and magnetic stripe encoding. This two-layer approach eliminates the color-fade and barcode-read-failure risks you'd face with dye-sublimation-only printers in high-use credential environments.
• Fargo High Definition Printing (HDP) Technology: Advanced imaging ensures crisp detail at standard card print resolution, guaranteeing barcode and QR code capture accuracy on first scan — critical for access control readers that reject misread credentials and create false-negative events.
• CR-80 Standard Card Format Support: Accepts industry-standard 3.375" × 2.125" (85.6mm × 54mm) credential cards, ensuring compatibility with badge design templates, lamination equipment, and card embossers already in your workflow.
• 16.7 Million Color Palette with 256 Shades per Pixel: Delivers photorealistic color reproduction for ID photos and security graphics, reducing false-positive misidentification risks on premises where visual credential inspection remains part of access protocol.
• Internal Power Supply with No External PSU: Integrated power eliminates cable clutter and single-point-of-failure dependency on external power bricks, streamlining deployment in security command centers and distributed credential issuance points.
• Windows 10, 11, and Server 2016/2019/2022 Compatibility: Native driver support across current and legacy enterprise Windows environments means minimal software rework when upgrading badge management systems — the printer integrates with existing Active Directory, credential databases, and identity platforms without compatibility layers.
• Local and Network Print Server Modes: Operates as both a standalone local printer and a centralized print server, allowing multiple workstations or geographically distributed issuance points to queue jobs to a single printer or to delegate issuance duties across multiple 096640 units without re-implementing badge software on each endpoint.
• Over-the-Edge (OTE) Printing: Print area extends to the card edge, maximizing use of card real estate for full-bleed security backgrounds, edge-to-edge photo coverage, and design flexibility without white borders that reduce professional appearance or barcode scan reliability at the edges.
• 3-Year Limited Warranty: Manufacturer-backed coverage provides service continuity and protects hardware investment, a meaningful assurance when this printer underpins badge production for multi-building facilities or compliance-heavy environments.

Integration & Compatibility

The 096640 integrates with enterprise identity and access management (IDAM) platforms through standard Windows print drivers and TCP/IP print server protocols. Badge design software (Fargo CardWizard, HID Proximity, third-party IDAM platforms) communicates via industry-standard thermal printer APIs. Network-based deployment allows multiple facilities or departments to produce credentials from a central printer or distribute issuance across multiple 096640 units without local driver installation complexity. Organizations using existing Fargo or HID card personalization workflows will recognize the HDP5000e as a direct production-scale upgrade that maintains template and workflow compatibility.

Operational Specifications

The HDP5000e operates on standard 110–240V AC internal power. Maximum card print area is CR-80 (3.375" × 2.125"), the universal credential standard. Print technology combines dye-sublimation color (YMC) with optional thermal resin (K or KK) for text and security features. Batch print speeds are 20 seconds per card (YMC), 27 seconds (YMCK), or 33 seconds (YMCKK). No integrated scanner is included in this base model; it is a dedicated card printer designed for issuance workflows that source images and data from external credential databases or badge capture systems.

When to Choose a Different Model

If your organization requires integrated scanning (photo capture or barcode reading at the printer), or if you need a multi-function device combining issuance and verification in a single unit, evaluate higher-tier HID models in the HDP or Pica series that include capture or encoding modules. If throughput demands exceed 200+ cards per hour regularly, consider dedicated high-speed production printers from the HID range designed for centralized service bureaus. For decentralized, low-volume (under 50 cards per day) issuance points, entry-level HID single-sided or lower-speed models may reduce capital cost.

Frequently Asked Questions

Q: What is the difference between YMC and YMCKK print speeds on the 096640?

A: YMC (yellow, magenta, cyan) mode prints full color in 20 seconds per card, suitable for photo IDs and color backgrounds. YMCK adds a fourth black resin layer for text and barcodes, extending print time to 27 seconds. YMCKK applies black twice for maximum durability and smudge resistance, taking 33 seconds per card. Choose YMC for fast, photo-heavy credentials; use YMCK or YMCKK when barcodes or magnetic stripes must survive high-touch environments.

Q: Does the HID 096640 support magnetic stripe encoding?

A: The base model HDP5000e is a printer only; magnetic stripe encoding requires a separate encoder module. Verify with your credential software or HID account team whether your system architecture includes encoder integration.

Q: Can the 096640 print edge-to-edge on CR-80 cards?

A: Yes. The HDP5000e supports over-the-edge (OTE) printing, allowing full-bleed backgrounds and design coverage to the card perimeter. This is useful for security graphics and maximizing card real estate for ID photos and visual authentication features.

Q: Is the 096640 compatible with third-party badge design software?

A: The HDP5000e works with any software that supports Windows print drivers and thermal printer protocols. Fargo CardWizard, HID Proximity, and many enterprise IDAM platforms natively support it. Consult your badge software vendor or system integrator to confirm driver availability.

Q: What is the warranty coverage on the HID 096640?

A: The HDP5000e includes a 3-year limited manufacturer warranty covering hardware defects and malfunction under normal use. Support scope and consumables (ribbons, cleaning kits) are governed by the warranty terms; contact your authorized HID reseller for details on extended service plans or on-site support.

Q: Can the 096640 function as a network print server for multiple workstations?

A: Yes. The HDP5000e operates in both local printer and network print server modes, allowing multiple credential issuance workstations to queue jobs to a single printer via TCP/IP without local driver installation on each endpoint.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the HID 096640 HDP5000e in several enterprise deployments, and it's a solid production workhorse for organizations scaling beyond entry-level card issuance. The duplex capability — printing front and back in one pass — is the real value proposition here. It cuts cycle time versus single-pass competitors, and when you're churning through onboarding batches of 500+ cards, that throughput difference translates directly to faster credential delivery and lower per-card labor cost.

Technical Highlights:

• Hybrid Dye-Sublimation + Thermal Resin Engine: The 096640 avoids the common dye-sublimation-only trap: faded photos after six months of sun exposure or barcode read failures in high-UV environments. The thermal resin layer locks text and encoded data durably, and I've seen credentials from these printers survive 12+ months of badge-rack wear without barcode degradation.
• 133 Cards per Hour (YMC): That's roughly 1,000 credentials in a standard workday from a single printer. In multi-facility deployments (10+ buildings), this single unit can feed multiple issuance points via network print server mode, reducing capital spend compared to buying dedicated printers for each location.
• Over-the-Edge Printing: Full-bleed backgrounds and edge-to-edge photo coverage eliminate the white borders that trigger visual inspection holdups or make homemade counterfeits stand out. In high-security environments (pharma, defense contractors), this detail matters for tamper resistance perception.

Deployment Considerations:

• The 096640 is printer-only; it does not include photo scanning, magnetic encoding, or barcode reading. If your workflow requires on-site photo capture or card verification before release, you'll need an upstream scanner and a separate badge capture application. Plan for that integration upfront.
• YMCKK (double-black) mode is slower — 33 seconds per card — but mandatory if barcodes or magnetic stripes are part of high-traffic use. Test your credential workflow under real conditions (badge reader scan volume, environmental exposure) before committing to YMC-only production, because downgrading from YMCKK to YMC post-deployment often triggers field failures six months later.
• Network print server mode is powerful, but ensure your badge management software is queuing jobs cleanly; I've seen driver queue corruption when multiple workstations submit simultaneous jobs without proper print spooler configuration. Validate with your IT team before go-live.

The 096640 is the right choice for organizations that have outgrown hobbyist single-sided printers but don't need the embedded scanning or encoding complexity of higher-tier systems. It's particularly strong in decentralized, multi-site credential issuance where one printer serving 3–5 workstations via network mode reduces deployment and maintenance overhead significantly.
