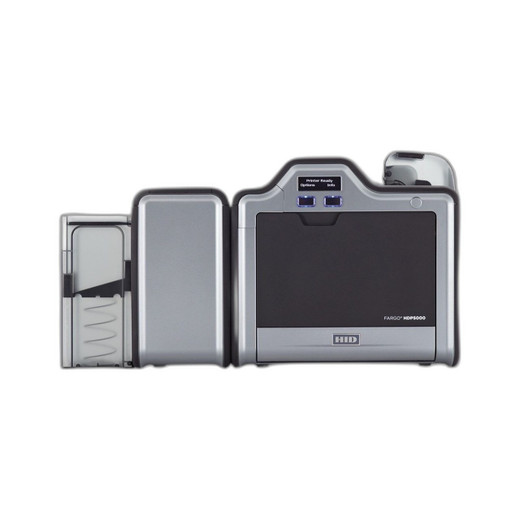

HID 096270 Upgrade Hopper Kit for HDP5000E
Overview
The HID 096270 is an upgrade hopper kit designed exclusively for the HDP5000E card printer system. This kit expands the input card capacity of the HDP5000E, enabling higher-volume credential issuance without frequent card supply reloading. Engineered for security integrators, ID program managers, and enterprise facilities managing badge production at scale, the 096270 hopper upgrade reduces operational interruptions and improves production throughput during peak issuance periods.
Key Features
- Dual Hopper Capacity Expansion: Increases card input capacity for the HDP5000E printer, supporting extended production runs without manual reloading
- HDP5000E Compatibility: Purpose-built for HDP5000E systems; integrates seamlessly with existing printer hardware and firmware
- Standard Card Support: Accommodates standard ISO/IEC 7810 ID-1 card format (CR-80) with consistent feed reliability
- Plug-and-Play Installation: Designed for rapid deployment with minimal configuration; integrates directly into printer hopper mechanism
- Increased Production Efficiency: Reduces card supply replenishment frequency, lowering operator intervention during credential batch runs
- Rugged Mechanical Design: Built for continuous-duty environments in security badge offices and ID program facilities
Integration & Compatibility
The 096270 hopper upgrade is engineered exclusively for HDP5000E printer systems. Integrators deploying multi-site badge issuance or high-volume credential programs benefit from expanded hopper capacity, which allows batch processing of cards without interruption. The kit maintains full compatibility with HDP5000E driver stacks, printer control software, and existing credential management workflows. No firmware updates or reprogram cycles are required. Installation follows standard HID accessory installation procedures documented in the HDP5000E system manual.
Package Contents
The HID 096270 kit includes the upgrade hopper assembly pre-configured for HDP5000E integration, mounting hardware, and installation guidance. Integrators should verify existing HDP5000E system configuration prior to kit deployment to ensure optimal hopper alignment and feed mechanism compatibility.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During large-scale badge program deployments, card supply management becomes a bottleneck in production workflow. The HID 096270 upgrade hopper kit addresses this operational constraint by extending input capacity on HDP5000E systems. When sizing card production infrastructure for enterprise facilities or multi-department ID programs, accounting for hopper capacity early in the design phase prevents costly production delays during peak renewal cycles.
Technical Highlights:
- Capacity Expansion: Model 096270 kit increases HDP5000E hopper input capacity to support extended production batches, reducing card replenishment frequency and operator interaction during issuance operations
- Format Support: Maintains full support for standard CR-80 card format (ISO/IEC 7810 ID-1) with proven feed reliability across HDP5000E production environments
Deployment Considerations:
- Verify that target HDP5000E printer is operational and at current firmware revision before kit installation; no field updates required post-deployment
- Plan hopper kit installation during non-production windows to avoid badge program workflow disruption; typical installation requires 15–30 minutes per printer
For organizations running continuous-duty card issuance operations, the 096270 hopper upgrade is a cost-effective investment in production efficiency. Integrators managing multi-shift badge programs will see immediate reduction in supply-related production stops, translating to higher credential throughput and lower labor overhead per badge issued.
