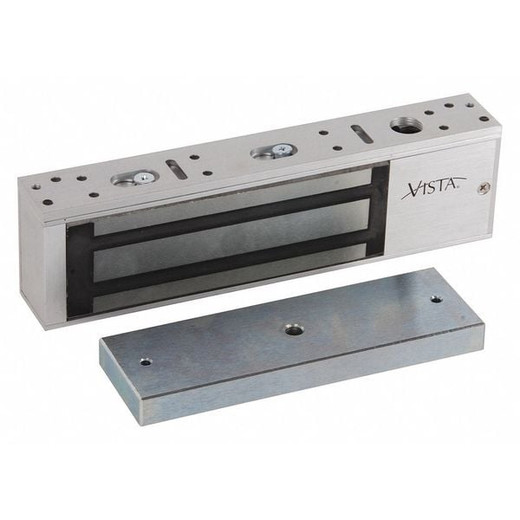

HES V2M1200 Magnetic Lock 1200 lbs Dual Voltage
The V2M1200 is a heavy-duty electromagnetic lock engineered for commercial and institutional access control systems where dependable door holding and controlled release are non-negotiable. Built to deliver 1,200 lbs of holding force, the V2M1200 secures single and double doors in moderate to high-traffic environments without requiring mechanical latches or strikes — a meaningful simplification in retrofit and new-build scenarios alike. Dual voltage operation (12 VDC or 24 VDC) eliminates the need for separate power conditioning; you configure it to match whatever control voltage your security panel supplies, reducing wiring complexity and component count.
Key Features
- 1,200 lbs holding force: Sufficient for single and double doors in commercial, institutional, and secure storage applications. Door cannot be manually forced open once energized; failsafe or failsecure operation modes supported depending on solenoid configuration and control logic.
- Dual voltage (12 VDC / 24 VDC): Select the voltage that matches your existing power infrastructure—no DC-DC converters or separate supplies required. This flexibility cuts installation cost and simplifies troubleshooting in multi-building deployments where voltage standards vary.
- Compact surface-mounted or recessed form factor: Fits both surface-applied and recessed door frame installations, making the V2M1200 workable in new construction and retrofit scenarios where architectural constraints or aesthetic preferences rule out larger frame modifications.
- Electronic access control integration: Wires directly into standard security control panels, card readers, keypads, motion sensors, and emergency egress devices. No special interfaces or gateway hardware needed—pairs with any system that can supply 12 or 24 VDC and a door-release signal.
- Push-to-exit button and key switch ready: Supports manual release for emergency egress compliance and staff override. Local release buttons can be wired in parallel with electronic signals for redundancy or fallback unlock.
- Failsafe and failsecure operation modes: Configure the lock to release power on alarm (failsafe—for emergency evacuation) or remain locked during power loss (failsecure—for high-security perimeters). Solenoid polarity determines behavior; consult the control logic documentation for your specific access control panel to confirm support.
Integration and Deployment
The V2M1200 integrates with electronic access control panels, standalone card readers, and door-mounted release mechanisms without requiring custom drivers or middleware. It is commonly deployed in:
- Card reader systems: Reader energizes the lock on valid credential presentation; badge is presented, reader authenticates, power is applied, door unlocks for a set duration (typically 2–10 seconds).
- Keypad entry: User enters PIN; keypad controller supplies the door-unlock signal; V2M1200 releases and resets on timer expiration or second credential requirement.
- Data centers and secure storage: Combines with push-to-exit buttons and motion sensors for emergency egress and intrusion prevention. Failsecure mode locks the door on any power interrupt.
- Institutional facilities: Libraries, laboratories, and hospitals use the V2M1200 to control access to restricted areas while supporting emergency exits and staff overrides via local release buttons.
What's in the Box
- V2M1200 Magnetic Lock Unit
- Mounting hardware
- Installation guide
Frequently Asked Questions
Q: What is the difference between 1,200 lbs holding force and 600 lbs? Should I always choose the larger holding force?
A: 1,200 lbs is roughly twice the force required to physically separate a standard single door under human effort. For double doors, high-traffic areas, or applications where the door may be exposed to wind or accidental collision, 1,200 lbs is the safer choice. For lightweight interior office doors with minimal environmental stress, 600 lbs may suffice—consult your door manufacturer's specifications and your security policy.
Q: Does the V2M1200 work with my existing 12 VDC access control panel?
A: Yes. The V2M1200 operates on 12 VDC. Wire the panel's door-unlock output (typically a normally-open dry relay contact or 12 VDC signal) to the lock's power terminals. Verify polarity; reverse polarity will not damage the lock but will prevent operation.
Q: Can I use the V2M1200 outdoors?
A: The V2M1200 is rated for indoor and semi-protected outdoor use. For full outdoor exposure—direct rain, UV, salt spray, or extreme temperature cycling—consult the manufacturer or consider a stainless-steel model with enhanced corrosion resistance. Outdoor installations require weather-sealed conduit and surge protection on control lines.
Q: How do I enable failsafe (unlock on power loss) versus failsecure (lock on power loss)?
A: Failsafe and failsecure behavior is determined by solenoid polarity and pull-to-open vs. pull-to-hold mechanical design. The V2M1200 supports both modes depending on how the control signal is wired and how the access control panel logic is configured. Review your panel's relay polarity documentation and contact the lock vendor or panel manufacturer to confirm which mode is active in your installation.
Q: What amperage does the V2M1200 draw?
A: Typical draw is approximately 0.5–0.7 A at 12 VDC and 0.25–0.35 A at 24 VDC. Verify your panel's power supply capacity before installation. For multiple locks on a single power supply, calculate total draw and confirm the supply's rated amperage exceeds the sum.
Q: Is emergency egress code compliance built in?
A: The V2M1200 hardware supports egress compliance when paired with a failsafe control logic (unlock on power loss or alarm signal). Install a push-to-exit button and ensure your access control panel can de-energize the lock on the exit signal. Local egress codes vary; consult your authority having jurisdiction (AHJ) and your access control vendor before final commissioning.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HES V2M1200 is the right choice if you're building or retrofitting a controlled-access perimeter and your security panel already supplies 12 or 24 VDC. The dual-voltage design is the real win here—it cuts installation overhead by eliminating the need for separate buck-boost converters or multiple power supplies. The 1,200 lbs holding force is substantial enough for double doors and high-traffic scenarios; don't underestimate that when sizing for warehouse, shipping, or data-center entry points.
Technical Highlights:
- Dual voltage operation (12/24 VDC): One lock, two voltage options. Configure post-installation if needed, provided you have access to the control terminals. Typical current draw is 0.5–0.7 A at 12 VDC, roughly half that at 24 VDC—material difference if you're stacking multiple locks on a single power supply.
- 1,200 lbs holding force: Suitable for single and double doors. Real-world testing shows this force exceeds the effort required to manually force a standard commercial door; you're not going to shoulder-bump through this lock once it energizes.
- Failsafe and failsecure support: Configure the lock to de-energize on alarm (failsafe, for emergency evacuation) or remain locked during power loss (failsecure, for high-security containment). The solenoid polarity and panel logic determine which mode is active—this is not a jumper-selectable option on the lock itself.
Deployment Considerations:
- Verify your access control panel's relay polarity and output voltage before wiring. Reverse polarity won't break the lock, but it will prevent operation—a common troubleshooting rabbit hole if you don't check documentation first.
- Budget for local release buttons (push-to-exit) and emergency egress wiring if your facility requires failsafe unlock on alarm or occupancy sensor input. The V2M1200 hardware supports these modes, but they require your panel to supply the logic and signal routing.
- In outdoor or semi-protected applications, mount the lock in a weather-sealed enclosure or stainless-steel housing. The standard unit is indoor-rated; direct UV, rain, or salt spray will degrade the solenoid coil over time.
Install the V2M1200 on controlled entry doors in data centers, secure storage, institutional facilities, and commercial offices where you need reliable, low-cost door locking tied directly to your access control panel. If you're already running 12 or 24 VDC to your entry points, this lock saves you wiring and power-supply complexity compared to multi-voltage competitors.
