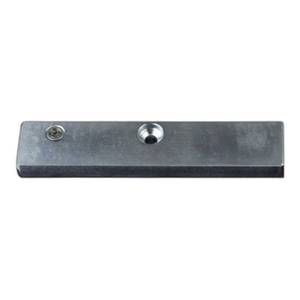

HES AM6320 Maglock Mounting Brackets
The AM6320 is a mounting bracket assembly designed to support electromagnetic lock (maglock) systems in commercial access control deployments. These brackets handle the mechanical positioning and load distribution required to keep electromagnetic locks securely engaged with door frames and auxiliary wall structures. If your access control infrastructure relies on electromagnetic locking — office buildings, healthcare facilities, secure entry points — these brackets provide the hardware foundation that alignment and retention depend on.
Key Features
- Dual Mounting Configuration: Supports both vertical door frame mounting and auxiliary wall-mounted installations, giving you flexibility to adapt the bracket placement based on your door hardware layout and retrofit constraints.
- Load Distribution Engineering: The bracket geometry is engineered to distribute maglock retention force evenly across the mounting surface, critical for preventing frame stress and ensuring the lock engages consistently over time.
- HES Ecosystem Integration: Designed specifically for HES electromagnetic lock systems, ensuring mechanical compatibility with standard HES maglock units without adapter plates or workarounds.
- Precise Alignment Support: Bracket design prioritizes alignment accuracy between the maglock armature and the door frame strike, reducing binding and premature component wear that degrades lock reliability.
- Indoor Installation Rated: Suitable for climate-controlled commercial and institutional environments where temperature and humidity remain stable — not rated for direct outdoor exposure or high-moisture areas.
- Standard Access Control Integration: Compatible with typical access control wiring and 12VDC power delivery systems used in commercial installations, requiring no proprietary power conditioning or control interface.
Integration & Compatibility
The AM6320 brackets integrate with established HES electromagnetic lock systems and standard access control infrastructure. Installation does not require custom fabrication or field modifications to the maglock unit itself. The bracket accommodates standard door frame materials (wood, metal) and typical access control wiring paths. Pair these with your existing 12VDC power supply and access control panel to complete the mechanical assembly.
Deployment Scenarios
Ideal for securing commercial entry doors, institutional access points (offices, schools, hospitals), and facility entrances where electromagnetic locking provides reliable, fail-safe operation. Suitable for retrofit applications where existing door hardware needs to be upgraded to maglock control, as well as new-build installations. The dual mounting configuration makes the AM6320 particularly valuable in mixed architectural layouts where some doors require frame-mounted brackets and others benefit from wall-auxiliary mounting to clear adjacent hardware or structural obstacles.
Frequently Asked Questions
Q: Are the AM6320 brackets suitable for outdoor use?
A: No. The AM6320 is rated for indoor installation only. Outdoor maglocks are exposed to temperature swings, humidity, and potential water ingress that these brackets are not engineered to withstand. For outdoor electromagnetic locking, specify outdoor-rated maglock hardware and mounting systems.
Q: Can I use the AM6320 with non-HES maglocks?
A: The AM6320 is engineered specifically for HES electromagnetic lock systems. Using them with third-party maglocks may result in alignment issues, improper load distribution, or incomplete engagement. Stick with HES maglocks to ensure mechanical compatibility and reliable operation.
Q: What mounting surfaces does the AM6320 support?
A: The brackets are designed for standard commercial door frames (wood and metal) and wall structures typical in office and institutional buildings. Verify your specific frame material and thickness against the bracket specifications before ordering to confirm clearance and screw penetration depth.
Q: How does bracket alignment affect maglock performance?
A: Misalignment between the maglock armature and the strike forces the lock to exert uneven pressure during engagement, accelerating component wear and increasing the risk of failure. The AM6320's design geometry minimizes alignment variance, preserving lock engagement consistency and extending service life.
Q: Do I need additional hardware beyond what's supplied?
A: Mounting screws appropriate to your frame material (e.g., wood screws for timber frames, machine screws with anchors for metal or concrete) may be required. Verify your installation surface before ordering to confirm fastener type and length.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The AM6320 is a straightforward bracket assembly — but straightforward doesn't mean unimportant. Maglock installations fail more often because of mechanical misalignment than because the lock itself is faulty. The AM6320 addresses that risk by engineering precise geometry into the bracket form factor so that the armature and strike stay properly aligned under repeated door cycles.
Technical Highlights:
- Dual Mounting Geometry: Door frame and wall-mounted configurations eliminate the need for custom fabrication or shims to adapt the maglock to your specific door hardware layout.
- Load Distribution: Engineered bracket profile distributes retention force evenly, preventing frame stress concentration that accelerates hardware failure in high-traffic installations.
- HES System Compatibility: Direct mechanical compatibility with HES maglocks — no adapter plates, no spacing adjustments, no cross-brand guesswork.
Deployment Considerations:
- Verify your door frame material (wood or metal) and thickness before ordering — fastener requirements and penetration depth differ, and undersized fasteners will compromise bracket rigidity.
- Indoor-only rating means outdoor retrofit projects, covered entries, or high-humidity spaces (kitchen service doors, laundry facilities) require a different bracket system — the AM6320 is not the answer there.
- In high-traffic commercial doors (main lobbies, secure facility entrances), bracket alignment becomes even more critical because door cycle stress compounds misalignment wear. A properly installed AM6320 will outlast a misaligned competitor bracket by months or years.
The AM6320 is the right choice for indoor commercial access control where you're pairing it with HES maglocks and your installation team can confirm proper frame geometry and fastener sizing. Don't force it into outdoor applications — there are purpose-built solutions for that. Properly installed, this bracket becomes invisible because it does exactly what it's supposed to do: hold the maglock in place, shift load evenly, and stay out of the way while the lock works.
