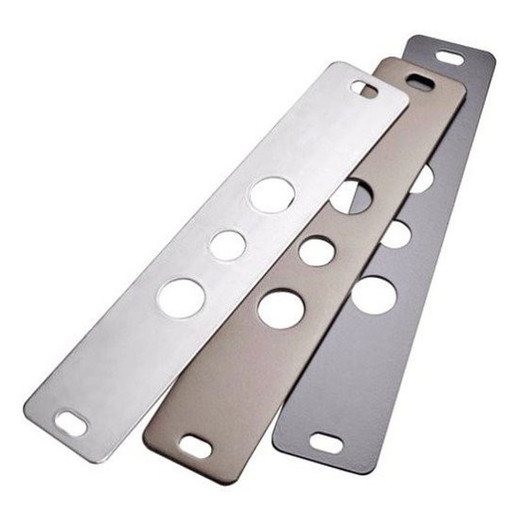

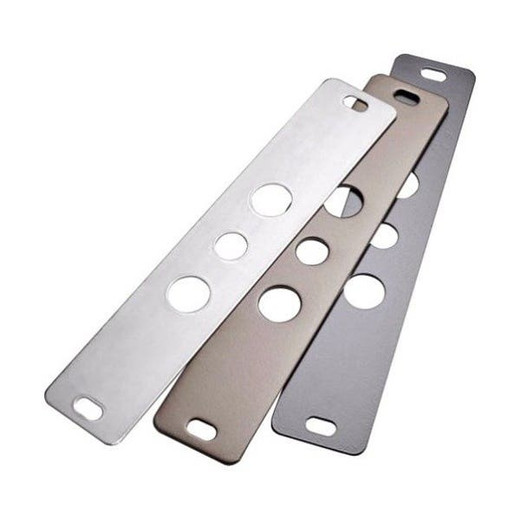

HES 9000-108-630 Spacer Kit 1/8 Plate Satin Stainless
The HES 9000-108-630 is a precision alignment spacer engineered for HES 9000 Series electric strikes. This accessory addresses a common installation challenge: when door frame geometry or strike mounting surfaces are out of spec, proper alignment fails silently, leaving your access control system unreliable. The 1/8 inch plate thickness compensates for frame inconsistencies, ensuring the strike engages flush and maintains consistent latch pressure across thousands of cycles.
Key Features
- 1/8 inch plate thickness: Bridges minor frame-to-strike gaps without over-shimming, which can stress hardware and create binding — keeps engagement smooth and predictable across the strike lifecycle.
- Satin stainless steel construction: Resists corrosion and salt-spray degradation in both indoor and semi-protected (transition/vestibule) environments. Avoids the discoloration that mild steel experiences, which can flag maintenance issues downstream.
- Direct compatibility with HES 9000 Series: Installs without modification to the strike or frame — no custom drilling, no adapter plates, no field rework.
- Professional-grade finish: Maintains aesthetic consistency with adjacent stainless hardware, reducing visual disconnect between security and architectural finishes.
- Precision tolerance: Engineered to HES manufacturing specs, so spacing is repeatable across multiple installations — critical if you're retrofitting an entire facility or standardizing on spacer depth across projects.
When to Use This Spacer
Install the 9000-108-630 when a frame has settled slightly, when strike mounting surfaces have corrosion buildup, or when door prep tolerances exceed the strike's internal adjustment range. Common scenarios include older commercial buildings with frame drift, institutional facilities with heavy door use, and data center environments where frame vibration is a factor. If you're deploying multiple HES 9000 strikes across a site and frames vary by more than 1/16 inch, stock at least one spacer per strike location.
Integration & Compatibility
The spacer kit is designed exclusively for HES 9000 Series electric strike systems and does not require firmware updates, VMS integration, or network configuration. It is a passive mechanical component — no power, no connectivity concerns. Installation is field-reversible: if frame adjustment or leveling occurs later, the spacer can be removed without damage to hardware or door assembly.
Frequently Asked Questions
Q: Can I stack multiple 1/8 inch spacers if I need more than 1/8 inch of adjustment?
A: Yes, stacking is possible, but consult HES installation documentation for maximum recommended total thickness. Over-spacing can cause the strike to sit too far from the frame lip and fail to engage properly.
Q: Will the satin stainless finish match my existing hardware?
A: Satin stainless is the standard finish for HES 9000 Series hardware. If your strikes were installed in the same era and batch, visual match should be consistent. If you're mixing hardware from different years, slight finish variation is normal and does not affect function.
Q: Is the spacer waterproof?
A: The spacer itself is solid stainless and will not absorb or retain water. However, the spacer creates a gap between frame and strike. In full outdoor or high-moisture environments, ensure the strike itself carries adequate weatherproofing (door seals, threshold drip management). For transition spaces (covered entries, vestibules), the spacer is suitable without additional sealing.
Q: Do I need one spacer per strike, or can I reuse across multiple doors?
A: One spacer per strike installation. Do not reuse after removal; repeated installation and removal can degrade the corrosion-resistant surface and affect precision fit. Stock extras for future retrofits.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HES 9000-108-630 is a no-nonsense shim — and that's exactly what makes it valuable. In retrofit and maintenance scenarios, frame settlement and hardware corrosion accumulation are the second-order problems that nobody budgets for. A 1/8 inch plate sounds trivial until you're on site and realize your strikes won't seat properly without it. This spacer solves that elegantly.
Technical Highlights:
- 1/8 inch thickness tolerance: Engineered to HES specs, not a generic mill spacer. This means it won't compress over time under strike load, keeping your engagement geometry stable across thousands of cycles and years of service.
- Satin stainless steel material: Avoids the rust bloom and discoloration that mild steel exhibits in semi-protected spaces. In high-humidity vestibules and covered entries, this finish buys you 5+ extra years before any visual degradation.
- Direct HES 9000 Series compatibility: No adaptation required — this is not a workaround. It mounts directly, preserving Manufacturer Warranty and installation integrity.
Deployment Considerations:
- Stock this item if you're planning a multi-strike retrofit across an older commercial or institutional facility. Frame settlement and corrosion buildup are predictable in buildings over 15 years old; budget one spacer per 3–5 strikes installed.
- Do not over-space. More than 1/4 inch total shimming will introduce binding and premature strike failure. If your frame gap exceeds 1/8 inch, address the root cause (frame leveling, corrosion removal) before relying on additional spacers.
- Installation is field-reversible if frame adjustments occur later, but the spacer is single-use. Once removed, do not reinstall due to surface micro-degradation from fastener stress.
Deploy the 9000-108-630 in retrofit scenarios where frame geometry is marginal and strike alignment cannot be achieved through adjustment alone — typical in institutional buildings, data center entries, and older commercial properties where you need reliable, predictable latch behavior without custom rework.
