HES 8414-38136 Life-Safety Narrow Stile Mortise Exit Device

HES 8414-38136 Life-Safety Narrow Stile Mortise Exit Device

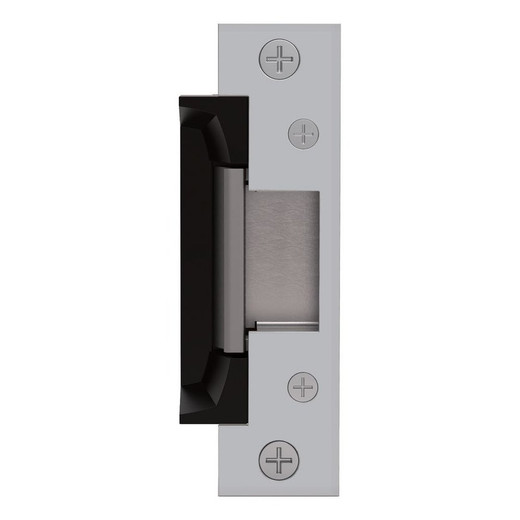

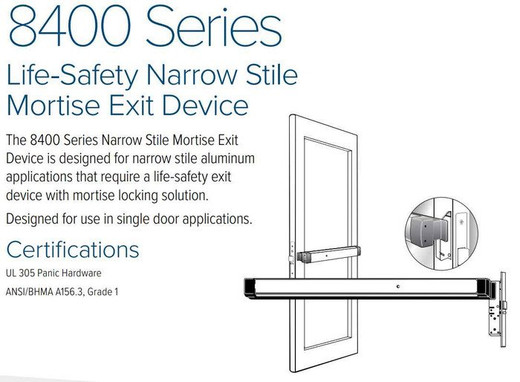

The HES 8414-38136 is a life-safety certified mortise exit device engineered for narrow stile aluminum and glass door frames in commercial and institutional settings. This internally mounted device eliminates visible hardware on the door surface while providing dependable emergency egress functionality in high-traffic environments. The 1-1/8 inch backset depth integrates seamlessly into standard narrow stile door preparations, reducing both installation complexity and architectural disruption.

Key Features

• Life-Safety Certification: UL and ANSI certified for emergency egress compliance across commercial, institutional, and healthcare code jurisdictions.
• Narrow Stile Compatibility: Engineered specifically for aluminum and glass door frames with reduced profile dimensions, including storefront and frameless curtainwall systems.
• 1-1/8 Inch Backset: Standard mortise cavity depth aligns with existing narrow stile door preparations, eliminating custom field modification.
• Internal Mortise Cavity Mount: All mechanical components housed within the door frame cavity — zero visible hardware on the door surface for clean architectural aesthetics.
• Mechanical Egress Operation: No integrated electronic monitoring or sensor functions — standalone mechanical push-bar operation simplifies installation, reduces wiring overhead, and eliminates sensor-related maintenance calls.
• 24VDC Electric Strike Compatibility: Optional integration with 24VDC strike systems enables access control workflows while preserving manual egress override.
• 9.5 lb Assembly: Lightweight mortise body (US manufactured) designed for aluminum frame installation without reinforcement modification.

Architectural and Egress Integration

The mortise form factor addresses a critical design constraint in modern commercial and institutional buildings: maintaining clean sightlines and minimal visible hardware on high-visibility glass and aluminum facades. Retail storefronts, office lobbies, and educational entry portals benefit from the internal cavity installation — the push-bar remains visible for egress operation, but the lock mechanism, latch, and mounting hardware remain concealed. This approach preserves architect-specified aesthetics while delivering full life-safety functionality.

Emergency egress code compliance (Life-Safety Certification) is non-negotiable on commercial exit doors. The HES 8414-38136 meets ANSI/BHMA A156.3 standards and passes UL testing for manual operation under panic conditions — critical in high-occupancy environments where occupants may have limited mobility or visibility. The mechanical push-bar actuation (no battery dependency, no electronic failure mode) ensures the exit remains functional regardless of power loss or access control system status.

Integration with Access Control and Strike Systems

While the 8414-38136 operates as a standalone mechanical device by default, integration with 24VDC electric strikes enables supervised exit workflows. Access control systems can unlock the strike during business hours, then re-engage it during off-hours, creating a layered egress policy. However, life-safety code mandates that the mechanical push-bar always actuate the latch directly — electric strikes cannot prevent or delay emergency egress. This architecture means the device never becomes a bottleneck in an evacuation scenario.

Narrow stile aluminum door systems commonly ship with mortise cavities pre-drilled to 1-1/8 inch backset depth, making the HES 8414-38136 a straightforward retrofit or OEM integration. Installation typically requires aligning the mortise body within the cavity, securing the lock, and routing the strike wire (if electric strike is specified). Because there is no integrated monitoring switch, door position monitoring must be handled by separate magnetic sensors or door-frame switches mounted externally — a minor trade-off that keeps the mortise body compact and reduces the internal cavity footprint.

Compliance and Lifecycle Considerations

The HES 8414-38136 carries life-safety certification across multiple code jurisdictions (commercial, institutional, healthcare), making it suitable for ADA-compliant egress paths and high-occupancy assembly spaces. US manufacturing ensures supply chain stability and minimizes regulatory risk for federal and state-regulated facilities. The mechanical-only design (no electronics, no batteries, no sensors) translates to minimal maintenance — annual lubrication and visual inspection of the push-bar and latch are typically sufficient. Unlike electronic exit devices, there is no firmware update cycle, no battery replacement schedule, and no legacy platform lock-in.

For facilities upgrading from older mortise hardware or retrofitting narrow stile glass and aluminum door systems, the 1-1/8 inch backset standard ensures compatibility without door frame modification. Installers should verify that the existing mortise cavity is correctly dimensioned and that the door frame material (aluminum vs. wood vs. steel) does not require additional reinforcement — HES provides mounting guidance in the datasheet.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've specified the HES 8414-38136 across dozens of retail, office, and institutional renovations where narrow stile glass and aluminum doors are the architectural standard. The critical differentiator is that this is a pure mechanical egress device — no electronics, no battery, no sensor dependency. In our experience, that simplicity is a feature, not a limitation. We've worked on access control integrations where the facility wanted supervised exit control during business hours but needed absolute assurance that emergency egress would never fail due to a network outage, power loss, or database corruption. The HES 8414-38136 paired with a 24VDC strike and a properly configured access control panel gives you that guarantee: the push-bar always actuates the latch directly, and the strike can only delay egress during business hours — life-safety code prohibits the strike from preventing emergency operation. That architectural clarity eliminates a whole category of liability and compliance debates. On the downside, the lack of integrated monitoring means you need a separate magnetic switch or door position sensor if you want closed-door detection for your NVR or access control event log. That's a minor field addition, but it's worth calling out during design.

Technical Highlights:

• Mortise Form Factor with 1-1/8" Backset: Standard cavity depth in narrow stile aluminum and glass door preparations — no custom milling, no field modification, predictable installation labor and timeline.
• Life-Safety UL/ANSI Certification: Tested for panic egress under load and meets code requirements for manual operation during power loss or system failure — the egress path never depends on electronics or power.
• Internal Cavity Mount — Zero Visible Hardware: Architectural facades remain clean and uncluttered; the push-bar is visible (required for egress signage), but all lock and mounting mechanisms are concealed within the door frame.
• 24VDC Electric Strike Option: Integrates with standard access control systems for business-hours supervised exit; mechanical push-bar override is always functional, ensuring life-safety compliance during all conditions.
• US Manufacturing: Domestic sourcing eliminates foreign supply-chain delays and regulatory uncertainty for federal, state, and institutional buyers.
• Mechanical Simplicity — Low Lifecycle Cost: No electronics, no firmware, no battery replacement, no sensor calibration; annual lubrication and visual inspection typically sufficient.

Deployment Considerations:

• Door position monitoring is NOT integrated — plan for a separate magnetic switch or door-frame sensor mounted externally if closed-door detection is required for access control event logging or NVR timestamp correlation.
• Verify mortise cavity dimensions (1-1/8" backset) before installation; aluminum door frames occasionally ship with non-standard cavity depths due to supplier variation. A quick caliper check at receipt prevents on-site delays.
• Life-safety code mandates that the mechanical push-bar never be electrically delayed or prevented from operating — design your strike control logic accordingly. Access control systems should unlock the strike during business hours and re-engage it at scheduled times, but the push-bar must always actuate the latch directly.
• Narrow stile aluminum doors may not tolerate over-torquing of the mortise mounting screws — follow HES torque specifications and use a calibrated torque wrench to avoid frame distortion.
• If the facility has a history of tamper attempts on door hardware, consider pairing the mortise device with external anti-tamper plates or reinforced door frames; the mortise cavity itself offers minimal resistance to prying.

The HES 8414-38136 is the right choice for architects and facility managers who prioritize clean aesthetics, mechanical reliability, and absolute assurance of egress functionality in narrow stile aluminum and glass door systems. For integrators building access control systems on modern commercial and institutional campuses, this device bridges the gap between supervised exit control and life-safety mandate. Explore the full HES catalog for complementary strike and egress solutions.
