HES SMB Surface Mounting Box for Rim-Exit Devices

HES SMB Surface Mounting Box for Rim-Exit Devices

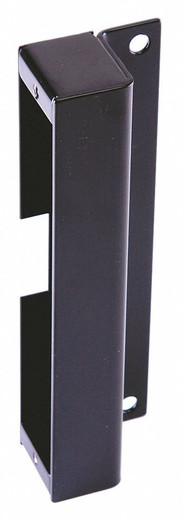

The HES SMB is a purpose-built surface mounting box engineered to secure rim-exit devices on inactive door leaves in multi-door access control deployments. This accessory solves a specific integration challenge: when your exit device must sit on a non-active door (the one that doesn't swing, or swings only occasionally), you need a clean, rigid mounting surface that won't flex or shift under load or repeated strikes. The SMB delivers exactly that — a black powder-coated steel box that mounts flush to the door frame and provides the mechanical foundation for reliable device positioning.

Key Features

• Surface Mount Design: Attaches directly to door frames or door leaves without requiring through-bolt holes in the door itself — a real advantage when modifying the door structure isn't practical or permitted by code.
• Inactive Door Compatibility: Engineered specifically for secondary or non-active door leaves in multi-door openings. If you're deploying exit devices on both sides of a pair, the SMB handles the inactive side cleanly.
• Black Finish: Powder-coated matte black blends with standard door hardware and frames, avoiding the visual clutter of unpainted steel or mismatched finishes in high-traffic areas.
• Accommodates Multiple HES Device Series: Works with HES 310-4, 7000 series (783S and 789S models), 9500 series, and 9600 series rim-exit devices. Verify your specific device model before ordering — fit depends on device footprint and mounting point spacing.
• Simplified Installation: Reduces on-site fabrication or custom bracket work. Standard fastening points mean integrators spend less time solving mechanical problems and more time on electrical provisioning and access control logic.
• Professional-Grade Construction: Built to handle the mechanical stress of repeated door cycles and user impact without warping, cracking, or loosening fasteners over time.

Integration & Compatibility

The SMB is designed as a drop-in accessory for access control system deployments requiring external mounting on non-active doors. It pairs directly with HES rim-exit device ecosystems and integrates into larger door control strategies. Before specifying the SMB, confirm your device model matches the compatible list — the 310-4, 783S, 789S, 9500 series, and 9600 series are tested and documented as compatible. If you're deploying a different HES model, contact the device manufacturer to verify mounting compatibility.

Deployment Considerations

Surface mounting works best on solid door frames or metal frames with sufficient thickness to anchor fasteners securely. If your installation involves lightweight hollow-core doors or glass-framed partitions, you may need supplemental reinforcement or a different mounting strategy altogether. The SMB is not a retrofit solution for existing hard-wired exit devices; it's designed for new installations or planned upgrades where you control the mounting surface. Plan for the box footprint — it will extend slightly from the door face, so confirm clearance with adjacent hardware, frames, or passage widths before ordering.

Frequently Asked Questions

Q: Can I use the SMB on an active door leaf?

A: No. The SMB is engineered specifically for inactive (non-moving or rarely-moving) door leaves. Active doors require different mounting solutions because the flexing and repeated motion of the door frame would eventually loosen the box or cause alignment drift.

Q: What fasteners are required to install the SMB?

A: The mounting box accepts standard fasteners compatible with HES device mounting points. Refer to the HES SMB datasheet and your device manufacturer's installation guide for specific fastener type and torque specifications. Most installations use stainless steel bolts to prevent corrosion.

Q: Is the SMB suitable for exterior doors?

A: The SMB itself is a passive mounting bracket with a black powder-coated finish. It offers no inherent weatherproofing or environmental protection beyond standard paint. For exterior deployments, verify that the mounted rim-exit device carries appropriate environmental ratings (IP66, stainless steel hardware, etc.) and plan for drainage around the box footprint to prevent water pooling.

Q: Can the SMB be installed on both active and inactive doors in the same opening?

A: Yes. In a double-door opening, you can mount the active device directly on the active (master) door and use the SMB on the inactive (slave) door. This is a common configuration in secured entryways and warehouse access points.

Q: Does the SMB come with all necessary mounting hardware?

A: No package contents are documented in available evidence. Consult the datasheet or contact the manufacturer to confirm whether fasteners are included or if you must source them separately based on your door frame material and thickness.

Q: What is the warranty on the SMB?

A: Warranty information is not available in current product data. Refer to the manufacturer's standard accessory warranty or contact your supplier for terms and coverage limits.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The HES SMB solves a real installation headache: securing a rim-exit device on a non-moving door without cutting holes through the door itself or jury-rigging a bracket. If you're building out a double-door security vestibule or a multi-zone warehouse entrance, you'll encounter this problem repeatedly. The SMB's surface-mount design means you're not relying on door-frame flex or improvised steel; you're mounting to a rigid box that anchors the exit device with mechanical certainty.

Technical Highlights:

• Compatible Device Series (310-4, 7000, 9500, 9600): This is not a universal adapter. Verify your exact rim-exit model before ordering — the 783S and 789S models in the 7000 line, plus the full 9500 and 9600 lineups, are documented as compatible. The 310-4 is a legacy platform, so if you're retrofitting older installations, confirm footprint compatibility before committing.
• Black Powder-Coat Finish: More than aesthetics — the finish prevents rust on the mounting box itself and reduces visual noise in high-traffic areas where chrome or unpainted steel would look out of place or corrode in humid environments like warehouses or loading docks.
• Inactive Door Only: This is a critical limitation. The SMB assumes minimal door motion. If the door flexes more than a few millimeters under load, fasteners will loosen within weeks. This is why it's matched to inactive (slave) doors or secondary leaves that rarely swing.

Deployment Considerations:

• Mounting surface matters. If your door frame is hollow-core composite or thin-gauge aluminum, you'll need reinforcement plates behind the SMB anchor points — budget extra time and hardware for this during site assessment.
• Exterior installations require separate attention: the SMB provides no environmental sealing. Your rim-exit device's IP rating is what keeps weather out, and the box itself can trap water if not sloped or drained. Plan for that in humid climates.
• Double-door configurations benefit from the SMB on the inactive side, but confirm the active device mounting doesn't conflict with the box footprint on the adjacent frame. Tight frame spacing can make installation awkward or impossible.

The SMB is the right call for new access control deployments or planned upgrades where you're controlling both the device selection and the mounting strategy. It's not a salvage solution for mismatched hardware — use it when you're specifying HES devices end-to-end and need a clean, code-compliant way to mount on secondary doors.
