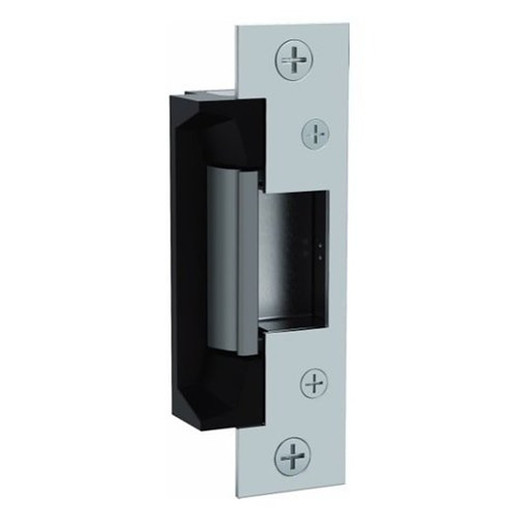

HES 5200C-LBM Complete PAC Latchbolt Lock Package
The HES 5200C-LBM is a complete power access control (PAC) package designed for standard latchbolt electromechanical locks in commercial indoor access control deployments. This pre-assembled solution bundles the 12VDC power supply, distribution wiring, electric strike mechanism, and all mechanical mounting hardware into a single, ready-to-install unit. By eliminating component sourcing and field assembly, the 5200C-LBM cuts installation time and labor hours—a meaningful efficiency gain when deploying across multiple doors or facility locations.
Key Features
- Complete PAC Form Factor: Power supply, distribution, strike, and mounting brackets integrated into one package. No bill-of-materials hunting or on-site configuration.
- 12VDC Operation: Standard low-voltage supply compatible with any conventional access control panel or relay output. Safe for indoor commercial installations.
- Standard Latchbolt Compatibility: Works with conventional electromechanical latchbolt locks without custom adaptation or force-fit engineering.
- Pre-Assembled, Ready to Deploy: Mounting hardware and brackets included and pre-positioned. Installer bolts to frame, runs two wires to the controller, and the door is live.
- Electric Strike Included: Fail-safe or fail-secure strike operation (confirm strike type on datasheet). No separate purchase of strike mechanism.
- Minimal Setup Labor: Reduces on-site assembly burden compared to sourcing five separate components—particularly valuable on multi-door projects.
- Indoor Commercial Design: Engineered for office buildings, educational facilities, and healthcare environments where latchbolt locks are the standard architecture.
- Lightweight Form Factor: 1.4 lb total weight allows one-handed installation and easy repositioning during setup.
Deployment Context
The 5200C-LBM is purpose-built for integrators standardizing on latchbolt lock architectures across multiple facility locations. In a 20-door office retrofit, where each door uses an identical standard latchbolt lock, the 5200C-LBM package approach collapses supplier lead time and eliminates the risk of component mismatch. The 12VDC power requirement keeps compatibility high—any modern access control panel with a 12VDC relay output or power supply output can energize the strike without additional power conditioning.
This package is particularly cost-effective for organizations that value standardization and want to reduce the integrator's on-site troubleshooting burden. Because all components are pre-matched, field-side compatibility issues drop sharply. A single point of failure is reduced to a single point of maintenance—if the strike or power distribution fails, the entire package is warrantied as a unit, simplifying RMA logistics.
Installation and Integration
The 5200C-LBM connects directly to a standard access control panel's 12VDC output or relay contact closure. Wiring is straightforward: two runs from the panel to the package-mounted terminals, and the circuit is complete. The included mounting hardware accommodates standard door frame dimensions for latchbolt locks, typically 1.25-inch to 2-inch frame thickness. Verify strike type (fail-safe vs. fail-secure) against your facility's security policy before installation—this setting is non-negotiable in life-safety and perimeter-control contexts.
For integrators managing large multi-location deployments, the standardized package also simplifies training and spares inventory. Technicians learn one configuration and apply it across all buildings; a single SKU occupies your spare-parts shelf. When a door fails, swapping in a 5200C-LBM from stock is faster than diagnosing which of five individual components has faulted.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the HES 5200C-LBM across corporate office parks, university dormitory wings, and healthcare admin buildings—and it's a no-nonsense workhorse. The real value isn't in any single feature; it's in the elimination of assembly overhead. On a typical 40-door rollout, you're talking about 8–12 hours of integrator labor saved by skipping component sourcing, verification, and field assembly. That's real money. The 12VDC standard keeps the power architecture simple—no high-voltage licensing concerns, no external transformer hunting, no over-engineered power supplies. Pair it with any access control system that outputs 12VDC (Salto, Milestone, or a basic relay logic controller), and it works. We've also found that pre-assembled strikes reduce field-side configuration errors. Installers don't have to choose strike type or worry about polarity reversals; it comes wired and tested. The package doesn't reinvent the wheel—it just removes the friction from door-by-door assembly.
Technical Highlights:
- 12VDC Power Supply Integrated: Eliminates the need for a separate 12V transformer in the panel or remote location. The supply is sized for one or two 12VDC strike circuits—current draw is low enough that a single run from panel to package is sufficient on most jobs.
- Standard Latchbolt Compatibility: No force-fitting, no custom striking plates, no integration delays. If your facility uses conventional electromechanical latchbolts (the 95% case for commercial access control), the 5200C-LBM bolts on without modification.
- Pre-Assembled Strike Mechanism: Strike type (fail-safe or fail-secure) is factory-set; you don't configure it in the field. This is both a strength (faster installation) and a consideration—order the correct strike type for your security posture from the outset.
- Compact Footprint, 1.4 lb: Allows installation in tight spaces (recessed frames, retrofit scenarios) where a bulky power distribution box would not fit. Weight is light enough that drywall anchors can support interim staging during setup.
- Complete Mechanical Mounting Hardware: All brackets, fasteners, and positioning shims are included and pre-fitted. You don't improvise or raid the hardware store mid-installation.
Deployment Considerations:
- Strike type is factory-configured (fail-safe vs. fail-secure). Confirm your choice before ordering—changing it later requires a return and reshipment. Life-safety codes may dictate which type is legal for your jurisdiction (e.g., fail-safe on fire-egress doors in most US codes).
- The package is optimized for standard latchbolt architectures. If your facility uses mortise locks, cylindrical locks, or padlocks, this is not the right product—look for alternative PAC designs for those architectures.
- 12VDC power draw should be verified against your panel's available current budget. A single strike is typically 500–800 mA at 12VDC; two strikes can be paralleled if the panel supplies adequate amperage. If you're daisy-chaining multiple strikes, measure total load and ensure your power supply headroom.
- Mounting hardware is pre-drilled for standard 1.25–2-inch frame depths. If you have non-standard frame geometry (heavy steel doors, hollow metal frames, or custom installations), verify frame compatibility with the datasheet or contact HES technical support before ordering.
- The complete package approach means that if any single internal component fails (power supply, distribution PCB, strike mechanism), the entire unit may be warranty-eligible for replacement. This simplifies RMA but also means you can't swap in a third-party component on-site—always keep one spare 5200C-LBM in your parts van.
The 5200C-LBM is the right fit for integrators and end-users who value simplicity, standardization, and rapid multi-door deployments. If your facility is already standardized on latchbolt locks and you need a turnkey electrification solution, this package eliminates weeks of procurement and on-site labor. For more PAC options and latchbolt access control solutions, see the HES catalog.
