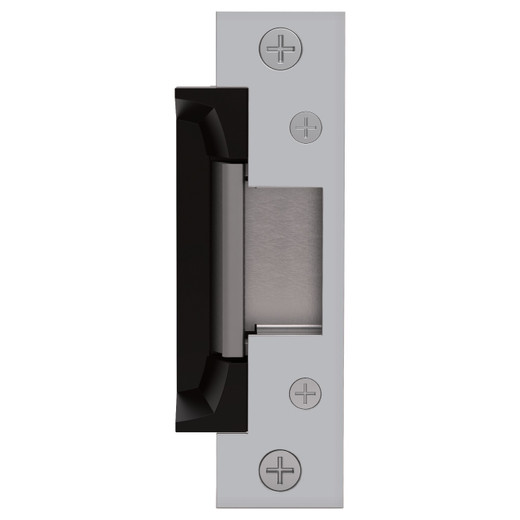

HES 5200C-630 Complete PACS for Latchbolt Locks

The HES 5200C-630 is a purpose-built Physical Access Control System engineered specifically for latchbolt lock installations in commercial and institutional environments. This is a complete solution—electric strike mechanism, control hardware, and mounting infrastructure arrive factory-matched and pre-coordinated, eliminating integration headaches that plague pieced-together systems from multiple vendors.

Why Choose the 5200C-630

A complete PACS package matters because component mismatches cost time and money on the job site. The 5200C-630 ships with all necessary elements pre-tested for compatibility, so you avoid the scenario where the strike voltage doesn't align with the control board, or mounting dimensions require field adaptation. For security integrators managing multi-door deployments, this reduces on-site troubleshooting and labor overhead. For facility teams overseeing retrofit projects where latchbolt locks are already the standard, the 5200C-630 delivers a vendor-supported path forward without ripping out and replacing existing hardware.

Key Features

• Integrated electric strike technology — Purpose-designed for latchbolt locks, not adapted from panic hardware or fail-safe mechanisms. Ensures proper throw and release timing aligned to latchbolt geometry.
• Pre-matched control components — Access control hardware arrives factory-coordinated, cutting commissioning time and reducing field compatibility risk.
• Complete package scope — All necessary mounting infrastructure, wiring, and hardware included; no need to source supplementary brackets or connectors from third parties.
• Enterprise-grade reliability — Backed by HES (part of the ASSA ABLOY Group), a manufacturer with decades of electromechanical lock hardware credibility.
• Multi-door deployment support — Designed to scale across institutional environments—offices, schools, hospitals, government facilities—where access control spans dozens or hundreds of entry points.
• Retrofit-friendly architecture — Fits existing latchbolt lock openings and door frame standards, minimizing structural changes during upgrade projects.

Integration & Compatibility

The 5200C-630 integrates with standard institutional access control workflows. Its pre-coordinated design eliminates cross-vendor compatibility validation, a significant advantage when integrating with access control platforms and enterprise security management systems. Facility teams can focus on configuration and credential provisioning rather than hardware debugging.

Ideal Deployment Scenarios

This system excels in commercial office buildings and educational institutions managing multi-door access; healthcare facilities requiring secure room isolation; government and corporate security implementations where vendor-backed systems are mandatory; and retrofit projects where latchbolt locks are the existing standard and replacement is not an option. Organizations requiring fully integrated, OEM-supported PACS solutions—rather than hand-built integrations from component bins—find the 5200C-630 reduces total cost of ownership across design, commissioning, and long-term maintenance cycles.

Frequently Asked Questions

Q: Is the HES 5200C-630 suitable for retrofit installations in older buildings?

A: Yes. The 5200C-630 is optimized for retrofit deployments where latchbolt locks are already installed. It does not require frame replacement or structural modifications beyond standard electric strike installation.

Q: What warranty does the HES 5200C-630 carry?

A: Warranty terms are determined by HES and your specialty distributor. Consult your distributor or HES technical support for specific coverage details.

Q: Can the 5200C-630 integrate with third-party access control platforms?

A: The 5200C-630 is engineered as a complete, pre-coordinated system. Integration scope and platform compatibility depend on your specific system architecture and the control software in use. Consult with your integrator or HES technical support for compatibility confirmation.

Q: How long does installation typically take compared to component-level assembly?

A: Pre-matched components reduce commissioning time significantly compared to validating compatibility across multiple vendors. Exact timelines depend on site conditions and the number of doors being outfitted.

Q: Is the 5200C-630 available for immediate deployment, or is lead time a factor?

A: Availability and lead time vary by distributor and current demand. Confirm stock and delivery timelines with your authorized source before committing to a project schedule.

Q: Does the HES 5200C-630 support integration with wireless readers or mobile credential systems?

A: The 5200C-630 is a complete latchbolt PACS solution. Wireless or mobile credential support depends on the control hardware configuration and software platform in use. Consult HES or your integrator for feature confirmation.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The HES 5200C-630 solves a real integration friction point: when you piece together strikes, controllers, and mounting hardware from separate vendors, you end up validating electrical compatibility, mechanical fit, and commissioning logic in the field. The 5200C-630 eliminates that work by shipping factory-matched. For a multi-door retrofit in an office park or campus environment where latchbolt locks are the existing standard, this pre-coordination cuts weeks off the integration timeline and hands your facility team a single-source warranty claim path if something fails post-deployment.

Deployment Considerations:

• Complete package design — You get all necessary components in one SKU, which simplifies procurement and reduces the risk of missing a bracket, connector, or mounting template. This is a genuine advantage when managing dozens of doors across a large campus.
• Latchbolt-specific engineering — The strike mechanism is purpose-built for latchbolt geometry, not adapted. Latchbolt locks have different throw distances and release timing requirements than panic hardware; mismatches here cause nuisance lockouts or security failures. The 5200C-630 addresses this by design, not retrofit.
• Integration validation required — While the 5200C-630 (often searched as 5200C 630) ships pre-matched internally, you still need to validate its integration with your facility's access control platform, reader technology, and credential provisioning system. Don't assume all PACS platforms recognize all control hardware out of the box.

Ideal For: Institutional deployments (universities, hospitals, government) where latchbolt locks are standard, integrators managing multi-door retrofits, and facility teams prioritizing vendor-backed solutions over component assembly. Less suitable if you need advanced analytics, mobile credential integration, or cloud-hosted management—those depend on your control platform, not the hardware alone.
