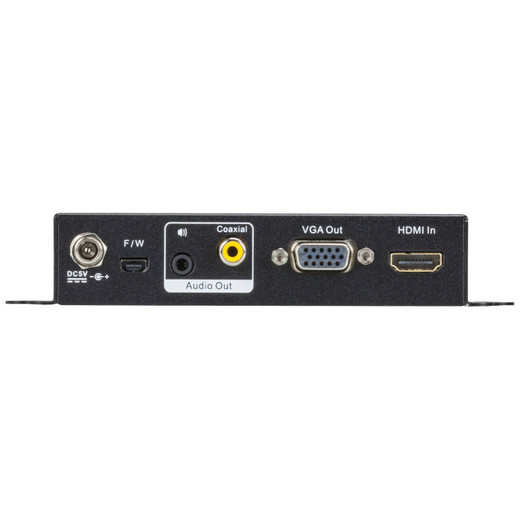

ATEN VC812 HDMI to VGA Converter with Scaler
Overview
The ATEN VC812 is a video converter designed to bridge the gap between modern HDMI sources and older VGA-equipped displays or projectors. Its integrated scaler ensures that video signals are optimized for the native resolution of the connected display, preventing image distortion or scaling artifacts. This is crucial in environments where legacy display infrastructure must be integrated with newer AV sources, such as conference rooms, lecture halls, or digital signage installations that utilize older monitors.
Compatibility
This device accepts digital HDMI input and outputs analog VGA and stereo audio. It is compatible with any HDMI source device, including computers, media players, and presentation switchers. The scaler supports a wide range of input resolutions up to 1920x1200 and can output resolutions including 480p, 576p, 800x600, 1024x768, 1280x720, 1280x1024, 1360x768, 1440x900, 1600x1200, 1680x1050, 1080i, 1080p, and 1920x1200. The analog output includes a standard RCA connector for composite video and a 3.5mm stereo mini-jack for audio, providing full AV signal conversion.
Installation Notes
The VC812 requires a 5V DC power supply (included) to operate. It features a 100 Ω impedance for the video signal, which is standard for VGA connections. The operating humidity range is 20-90% RH non-condensing, suitable for most indoor commercial environments. While it mentions rack-mount products in its documentation, the VC812 itself is a compact standalone unit. Ensure adequate ventilation around the device to prevent overheating.
