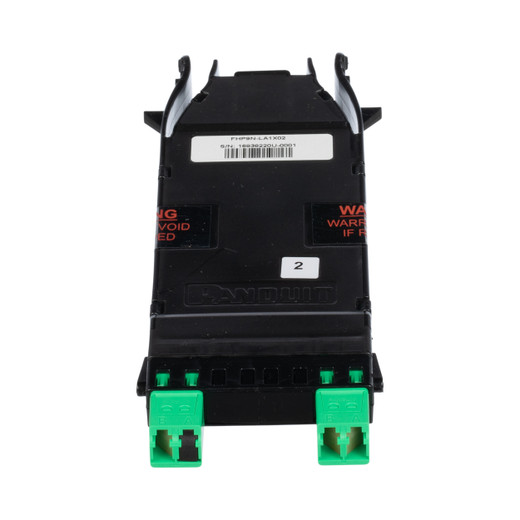

Panduit FHP9N-LA1X02 HD Flex 1x2 PON Splitter Cassette
Overview
The Panduit FHP9N-LA1X02 is a 1x2 passive optical network (PON) splitter cassette in the Panduit HD Flex™ line — engineered for architects and integrators who need to maximize splitter density per rack unit without sacrificing fiber organization or access speed. At just 2.18 in. wide and 0.46 in. tall, this cassette is exactly half the width of a standard panel slot, which means you can fit up to 18 cassettes in a single RU in compatible fiber optic panels and enclosures. If you're designing a multi-tenant building distribution, a campus PON backbone, or a high-density fiber plant where splitter real estate in the rack is a genuine constraint, the FHP9N-LA1X02 directly addresses that problem. The 1x2 split ratio also gives system designers granular control: instead of deploying a fixed high-ratio splitter and eating unused ports, you can cascade or combine cassettes to match the exact split configuration your PON architecture requires — no stranded capacity.
Key Features
- 1x2 PON Splitter Configuration: Splits one incoming OS2 single-mode fiber to two output ports. Deploying individual 1x2 cassettes rather than a monolithic high-ratio unit lets you build only the split ratio you need — and expand incrementally without replacing installed hardware. A 1x4 or 1x8 tree is simply a matter of cascading additional FHP9N-LA1X02 units.
- LC/APC Duplex Connectors on Both Ports: Both the input and output sides terminate in duplex LC/APC (angled physical contact) connectors — the standard for PON deployments where return-loss performance is critical. APC ferrules reduce back-reflection to levels that protect OLT transceivers and maintain link budgets over long passive runs, a requirement you can't meet with UPC connectors in most GPON/XGS-PON designs.
- Integral Port Shutters (Dust Gates): Each LC/APC port includes built-in dust gates that close automatically when a connector is unplugged. In a high-density patch environment, open ports collect contamination that degrades insertion loss — the gates eliminate the need to manually cap every unused port during moves and changes, cutting fiber cleaning time per port on large installations.
- OS2 Single-Mode Fiber, 9µm Core: OS2 is the correct fiber type for PON distribution — it supports the low-loss, long-reach characteristics that passive optical networks depend on. The 9µm single-mode core is compatible with standard GPON, XGS-PON, and EPON transceivers. Mixing with OM3/OM4 multimode cassettes in the same frame is possible (HD Flex supports mixed loading), but this cassette is specifically single-mode.
- Zirconia Ceramic Ferrule Material: The ferrule material matters for long-term insertion loss stability. Zirconia ceramic maintains tight dimensional tolerances under thermal cycling better than plastic alternatives, which is relevant in outside plant enclosures, rooftop IDFs, or any environment where temperature swings are the norm. Fewer polishing defects over repeated clean-mate cycles means consistent performance across the cassette's service life.
- Half-Width Cassette Format — 18 Per RU in FLEX04 Panels: The 2.18 in. x 0.46 in. form factor is designed specifically to install directly into Panduit FLEX**04 panels and frames. At 18 cassettes per RU, a single 1U panel can house 36 fiber paths (18 x 1x2) — which translates directly to reduced rack space consumption in a fiber distribution hub compared to tray-based splitter approaches that typically run 4–8 splitters per 1U.
- Standards Compliance — ISO/IEC 11801, ANSI/TIA-568-C.3, FOCIS-5, FOCIS-10, RoHS: Meeting ISO/IEC 11801 and ANSI/TIA-568-C.3 matters for enterprise structured cabling specs and for any project governed by those standards. FOCIS-5 and FOCIS-10 (TIA-604) define the LC connector interface performance — conformance here means the cassette's connectors will mate reliably with any compliant LC adapter or patch cord. RoHS compliance is required for EU projects and most enterprise green-building programs.
Integration & Compatibility
The FHP9N-LA1X02 (often searched as FHP9N LA1X02) is designed to install directly into Panduit FLEX**04 fiber optic panels and frames — verify your panel is in the FLEX**04 family before ordering, as HD Flex cassettes use a proprietary half-width slot format and are not mechanically interchangeable with full-width cassette systems from other manufacturers. The half-width slot means two cassettes occupy the same space as one standard cassette, enabling mixed loading with other HD Flex cassettes (e.g., splice cassettes, adapter cassettes) within the same panel.
On the optical side, LC/APC duplex connectors require LC/APC patch cords — not LC/UPC. Mixing APC and UPC connectors in the same link increases back-reflection and degrades insertion loss; confirm your patch cord inventory matches before deployment. The OS2 single-mode fiber designation means this cassette is for single-mode plants only; it is not appropriate for OM1/OM2/OM3/OM4 multimode applications.
For PON system planners: a 1x2 splitter is the fundamental building block of GPON/XGS-PON trees. Two FHP9N-LA1X02 units cascaded yield a 1x4 split; three stages yield 1x8. This modular approach lets you stage PON build-out by floor or zone rather than committing to a fixed high-ratio splitter upfront — a meaningful cost and flexibility advantage on phased fiber optic infrastructure projects.
What's in the Box
- 1x Panduit FHP9N-LA1X02 HD Flex 1x2 PON splitter cassette (LC/APC to LC/APC, OS2)
Frequently Asked Questions
Q: What panels and frames is the FHP9N-LA1X02 compatible with?
A: The FHP9N-LA1X02 is designed to install directly into Panduit FLEX**04 panels and frames. It uses a half-width cassette format (2.18 in. wide) that is specific to the HD Flex system — it is not compatible with full-width panel slots or non-Panduit FLEX**04 frames.
Q: Does the FHP9N-LA1X02 work with multimode fiber?
A: No. The FHP9N-LA1X02 uses OS2 single-mode fiber with a 9µm core. It is designed for single-mode PON applications (GPON, XGS-PON, EPON) and is not suitable for OM1, OM2, OM3, or OM4 multimode plants.
Q: What connector type does the FHP9N-LA1X02 use, and does it matter?
A: Both input and output ports use duplex LC/APC (angled physical contact) connectors. APC connectors are required for PON links — they provide lower back-reflection than LC/UPC, which protects OLT transceivers and maintains the link budget across the passive optical network. You must use LC/APC patch cords; mixing APC and UPC connectors in the same link degrades performance.
Q: How many FHP9N-LA1X02 cassettes fit in a 1U panel?
A: Up to 18 HD Flex cassettes fit per rack unit in compatible Panduit FLEX**04 panels. With 18 FHP9N-LA1X02 cassettes installed, a single 1U panel supports 18 independent 1x2 PON splits — 36 fiber paths total.
Q: Is the FHP9N-LA1X02 RoHS compliant?
A: Yes. The FHP9N-LA1X02 meets or exceeds RoHS requirements, along with ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), and TIA-604-10 (FOCIS-10).
Q: Can I cascade multiple FHP9N-LA1X02 cassettes to achieve higher split ratios?
A: Yes. The 1x2 cassette is the base building block. Cascading two units yields a 1x4 split; three stages produce 1x8. This modular approach lets you match the split ratio precisely to your PON subscriber count and expand incrementally as the network grows.
The detail that stands out on the FHP9N-LA1X02 is the half-width, 0.46 in. tall form factor combined with the 18-per-RU density rating in FLEX**04 panels. In PON distribution applications — especially multi-tenant buildings or campus deployments where you're staging 1x2 splits across multiple IDFs — rack space is one of the first things that runs short, and this cassette format lets you treat splitter capacity as a stackable resource rather than a fixed infrastructure commitment.
Technical Highlights:
- LC/APC Duplex on Both Sides: APC ferrules are non-negotiable on the PON side of any GPON or XGS-PON link. The angled polish keeps back-reflection below the OLT's tolerance threshold — something UPC connectors can't reliably deliver on a passive split link with multiple reflective interfaces in the path.
- Zirconia Ceramic Ferrule: Ceramic holds dimensional tolerance better than plastic across temperature swings. For cassettes installed in outside plant enclosures or rooftop comms rooms where ambient temps cycle 30°C+ seasonally, this material choice directly translates to consistent insertion loss numbers over the cassette's service life — not just out of the box.
- Integral Dust Gates: In a panel running 18 cassettes at near-full capacity, you'll inevitably have ports that cycle between active and spare. The built-in shutters close automatically on disconnect, which reduces fiber contamination risk during MACDs without requiring technicians to cap every unused LC/APC — a real time saver at scale.
Deployment Considerations:
- Confirm your panel is FLEX**04 specifically — HD Flex cassettes use a proprietary half-width slot and won't seat in standard full-width Panduit or third-party frames. Check the panel model number before ordering in quantity.
- Patch cord discipline is critical: LC/APC to LC/APC only. A single LC/UPC cord in the link introduces a reflection point that can degrade link budget measurably, particularly in longer PON runs where the split ratio has already consumed most of the available margin.
The FHP9N-LA1X02 is the right cassette for a staged PON build-out in a multi-story commercial or mixed-use development where you want per-floor or per-zone split control, need to maximize splitter density in a constrained 1U or 2U fiber distribution panel, and can't afford the waste of committing to fixed high-ratio splitters before subscriber counts are finalized.
