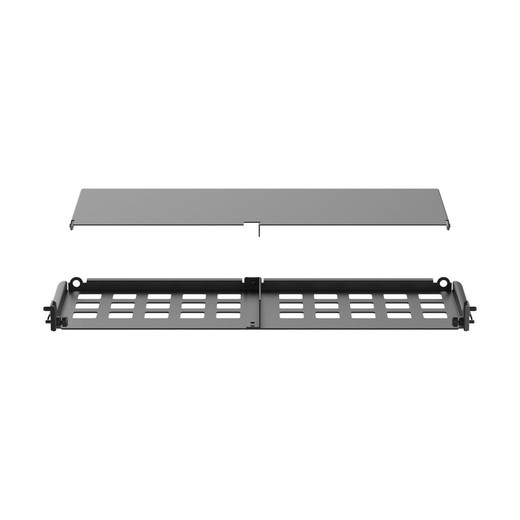

Panduit FLEX-PLATE1UPRW 1U HD Flex Blanking Plate with Rear Cover
The Panduit FLEX-PLATE1UPRW is a 1U steel blanking plate engineered for HD Flex patch panel enclosures, featuring an integrated rear cover that seals unused rack spaces while maintaining proper airflow separation. In high-density fiber and copper installations, exposed rack openings create thermal bypass — this plate eliminates that path while keeping cable routing options accessible. White finish matches standard telecom room aesthetics; rear cover prevents dust ingress and provides a finished appearance from both front and back of the rack.
Key Features
- 1U rack-mount steel blanking plate designed specifically for Panduit HD Flex patch panel systems
- Integrated rear cover provides full enclosure — blocks airflow bypass and dust entry from cable pass-through areas
- Steel construction with white powder-coat finish for durability in high-traffic telecom rooms
- Standard 19" rack width (17.59" mounting width, 1.26" / 32.1mm height) fits EIA-310 compliant racks
- RoHS compliant for installations requiring lead-free components
The integrated rear cover differentiates this plate from basic blanking panels. In open-frame racks or two-post installations common in telecom environments, standard blanks leave the back of the rack exposed — cable management becomes visible, dust accumulates in fiber trays, and hot exhaust air can recirculate into cold aisles. The FLEX-PLATE1UPRW's rear cover closes that gap. Steel construction resists flexing when installed above heavy patch panels or below equipment that generates installation vibration (think ceiling-mount cable drops pulling on dress panels during adds/moves/changes). The white finish is powder-coated, not painted — it won't chip when rack nuts are torqued or when installers slide equipment past during adjacent bay work.
Use this plate in data center hot-aisle containment installations where every unsealed rack opening degrades your thermal separation ROI. It's equally critical in IDF closets with passive cooling, where a few open rack units can drop your equipment inlet temps by 4–6°F simply by forcing exhaust to exit the rear and preventing recirculation. The HD Flex compatibility means you're maintaining Panduit's modular cable management ecosystem — if you add a fiber trunk next quarter, you pull the plate and slot in an HD Flex cassette housing without re-engineering the cable dress. Single-unit packaging matches the way these plates get consumed: you're filling odd gaps after cabinet layout, not bulk-installing in 10-packs.
Ships as a single unit. Mounting hardware matches standard rack cage nuts or threaded holes (not included, as most installations use existing rack hardware). Dimensions are 17.59" W × 1.26" H × 446.8mm depth coverage via the rear cover. RoHS compliance is mandatory for federal and many state/municipal installations — this plate clears that gate. If you're running Panduit's HD Flex fiber infrastructure and need to finish rack spaces without sacrificing thermal performance, this is the specified component.
