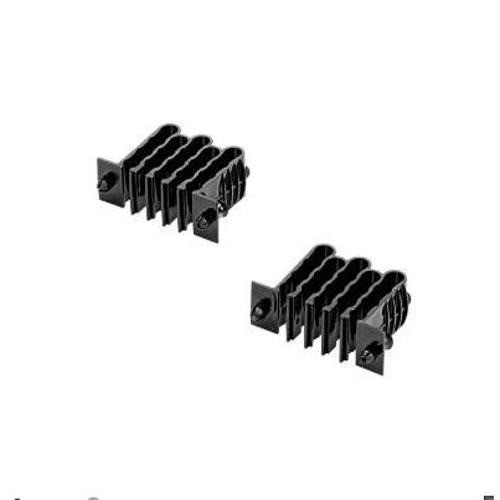

Panduit FLEX-CLIP12 HD FLEX TRUNK TRANSITION CLIP

Overview

The Panduit FLEX-CLIP12 is a specialized transition clip designed to bridge Panduit HD FLEX trunking systems to standard 12-inch (305mm) wide cable trays or surfaces. This component ensures a clean, secure, and compliant transition, preventing cable stress and maintaining signal integrity in complex network infrastructure deployments. It's engineered for environments where structured cabling requires precise management between different pathway types, such as data centers, industrial facilities, or large enterprise networks where the Panduit HD FLEX system is already in place.

Compatibility

This transition clip is specifically designed for use with the Panduit HD FLEX Trunking System. It provides a direct interface for transitioning from the HD FLEX trunk to standard 12-inch wide cable trays, ladder racks, or flat surfaces. It is not compatible with other Panduit trunking series or different tray widths without additional adapters.

Installation Notes

Installation requires securing the FLEX-CLIP12 to the existing 12-inch wide surface or tray using appropriate fasteners (not included). The HD FLEX trunk then snaps or slides into the designated channel on the clip. Ensure all cables are properly dressed and supported before and after the transition point to prevent strain. Torque specifications for any associated fasteners should follow standard industry practices for cable tray mounting.
