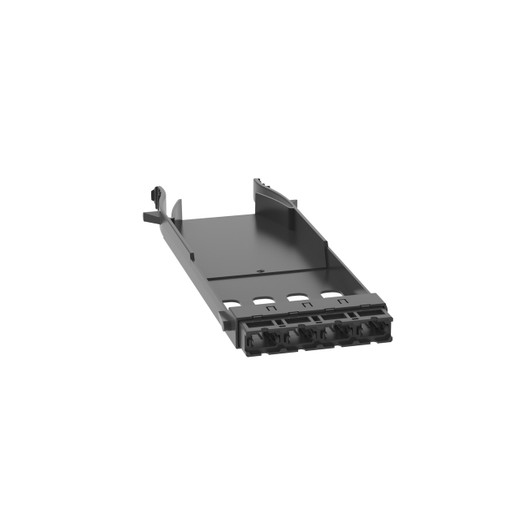

Panduit FHMP-4-ABL HD Flex™ 4-Port MPO Fiber Adapter Panel
The Panduit FHMP-4-ABL is a front-loading MPO fiber adapter panel designed for high-density datacenter and enterprise backbone installations. This compact HD Flex™ module houses four Type A MPO adapters with key-up to key-down orientation, enabling polarity-correct trunk connections in 1U or modular enclosures. Engineered for TIA/EIA-568-C.3 compliance, the FHMP-4-ABL delivers field-proven reliability in 40G/100G Ethernet migrations, SAN consolidation, and parallel optics deployments where rack space and cable management are critical.
Key Features
- 4-Port MPO Type A Configuration — Key-up to key-down adapters maintain polarity across trunk spans without field re-termination
- HD Flex™ System Integration — Drop-in compatibility with Panduit's modular fiber platform for scalable capacity planning
- Front-Loading Access — Installer-friendly design allows plug changes and cleaning without disrupting adjacent circuits
- Compact 2.61" Width — High port density in minimal horizontal space (0.46" profile fits shallow enclosures)
- TIA/EIA-568-C.3 Compliant — Meets structured cabling standards for multi-fiber pushon (MPO) interconnects in commercial buildings
- RoHS Certified — Lead-free plastic construction for environmentally responsible installations
MPO Polarity and Type A Architecture: The FHMP-4-ABL uses Type A (straight-through) adapters, the industry-standard method for maintaining fiber pair assignments across trunk links. In a Type A system, position 1 on the transmit connector maps to position 1 on the receive connector when using a key-up to key-down mating strategy. Each of the four ports accepts 12-fiber or 24-fiber MPO connectors, supporting 40GBASE-SR4 (4 × 10G lanes), 100GBASE-SR4 (4 × 25G lanes), or parallel single-mode applications. The key-up/key-down orientation is factory-set in the adapter bodies—installers simply verify trunk cable keying matches the panel's fixed geometry, eliminating the guesswork and mis-wiring common with field-flippable designs. This matters in spine-leaf datacenter fabrics where a single polarity mistake can require a truck roll and hours of troubleshooting; the FHMP-4-ABL's rigid keying prevents those errors at the outset.
Deployment Scenarios and Density Planning: The 4-port form factor fits installations where moderate fiber count and easy access outweigh absolute port density. A typical use case is the horizontal fiber manager in a Top-of-Rack (ToR) switch cabinet, where four MPO trunks connect the switch's QSFP+ uplinks to backbone cassettes or breakout modules—each trunk carrying 40 Gbps over four duplex pairs. The front-loading design is essential in these environments: when a transceiver fails or a link needs cleaning, the technician removes the front MPO plug without reaching behind rack-mounted equipment or disturbing power cables. For core aggregation layers needing 12, 24, or 48 MPO ports, Panduit offers higher-density HD Flex™ modules; the FHMP-4-ABL is the right-sized building block for edge distribution, test labs, and staged migrations where capacity grows in controlled increments. It also excels in retrofit projects—adding four MPO breakout points to an existing Cat6A patch panel without requiring a full enclosure swap.
HD Flex™ Ecosystem and Field Serviceability: Panduit's HD Flex™ system is a pay-as-you-grow fiber architecture where adapter panels, cassettes, and enclosures share standardized mounting rails and connector footprints. The FHMP-4-ABL integrates into any HD Flex™ 1U enclosure or can be rack-mounted in Panduit's dedicated fiber management trays. This modularity means a datacenter can start with 4-port MPO capacity today, then snap in additional FHMP modules or LC/SC cassettes tomorrow without re-engineering cable routing or replacing mounting hardware. The panel's plastic construction is rated for 500+ mating cycles per port—field-tested durability for environments where circuits are re-patched during VLAN changes, server migrations, or disaster recovery drills. The 0.46-inch height accommodates tight vertical spaces in zero-U cable managers, and the 2.61-inch width allows side-by-side placement of multiple panels in standard 19-inch racks with room for cable bend radius compliance.
The Panduit FHMP-4-ABL meets TIA/EIA-568-C.3 insertion loss and return loss specifications for MPO interconnects, ensuring compatibility with OM3, OM4, OM5 multimode and OS2 single-mode trunk assemblies from any standards-compliant manufacturer. RoHS certification confirms lead-free materials throughout, meeting procurement requirements for federal, healthcare, and multinational datacenter projects. For IT teams managing 40G/100G upgrades on a structured timeline, the FHMP-4-ABL delivers the balance of proven Type A polarity, front-access simplicity, and Panduit's tier-one supply chain reliability—no substitute SKUs, no long lead times, no compatibility wildcards. It's the adapter panel that lets you light up four high-speed links this week and scale the remaining 44 ports next quarter, all within a single, field-proven fiber platform.
