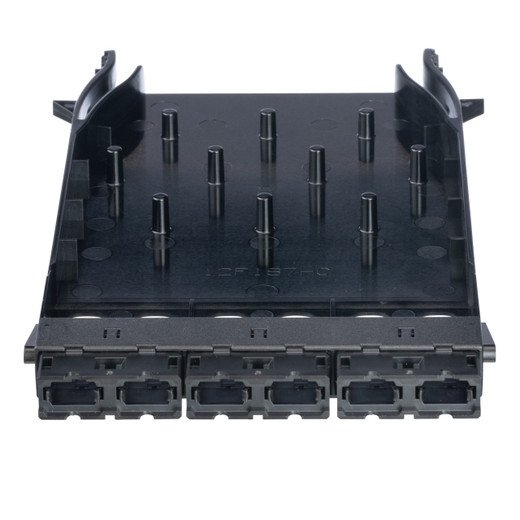

Panduit FHMP-6M-ABL Opticom 6-Port MPO-16 Fiber Adapter Panel
Overview
The Panduit FHMP-6M-ABL is a 6-port MPO-16 fiber adapter panel designed for high-density data center and enterprise network applications requiring 400G and 800G connectivity. This panel uses Key-Up to Key-Down (Method A) configuration, ensuring correct polarity for critical fiber links. Its black adapters help identify the specific connection type within a patch panel. This unit is part of the Opticom® Base-16 fiber system, providing a robust solution for structured cabling deployments.
Compatibility
This adapter panel is designed to integrate with Panduit's Opticom Base-16 fiber optic enclosures and patch panels. It supports MPO-16 fiber optic connectors, commonly utilized in high-speed networking applications such as 400GBASE-SR4, 400GBASE-DR4, and 800GBASE-DR8 Ethernet. It is specifically configured for Key-Up to Key-Down (Method A) polarity, which is critical for maintaining signal integrity in parallel optics applications. Ensure your existing infrastructure supports MPO-16 connectors and Method A polarity for seamless integration.
Installation Notes
Installation requires insertion into a compatible Panduit Opticom Base-16 enclosure or patch panel. The panel features black MPO-16 adapters, which are typically used to denote specific fiber types or polarity configurations. Proper handling of fiber optic connectors is essential to prevent contamination and damage. Users should consult Panduit's installation guides for detailed procedures related to the Opticom Base-16 system to ensure correct fiber management and polarity.
