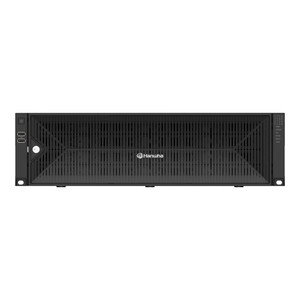

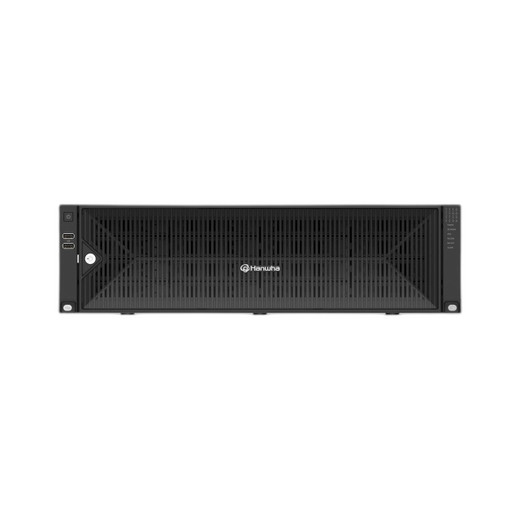

Hanwha XRN-6420DB4 64-Channel NVR Recorder

Hanwha XRN-6420DB4 64-Channel NVR Recorder

The Hanwha XRN-6420DB4 is a large-scale network video recorder purpose-built for facilities requiring simultaneous monitoring and recording of 64 live camera feeds with minimal storage footprint. Built on Linux architecture with dual SMPS redundant power supplies, this NVR handles the demands of airports, transportation hubs, retail campuses, industrial complexes, and multi-site corporate security operations. Support for 32MP input resolution and H.265 compression means you can store roughly twice the footage in the same drive capacity compared to H.264 — a tangible cost saving when running 24/7 across dozens of cameras.

Key Features

• 64-channel network input with dual-stream recording: Connect up to 64 IP cameras (Hanwha or ONVIF-compatible) and simultaneously record two quality levels from each — high-resolution archival stream plus lower-bitrate tactical stream — without doubling bandwidth consumption.
• Up to 520 Mbps recording bandwidth in RAID modes: Scaled recording performance lets you sustain 24/7 ingest of high-resolution feeds across all 64 channels without frame rate drops. In standard (non-distributed) mode, the recorder delivers 300 Mbps, trading peak throughput for simplified configuration.
• 32MP camera support with H.265/H.264/MJPEG options: H.265 cuts storage requirements roughly in half versus H.264 at equivalent perceived quality — meaningful on multi-year retention policies. MJPEG remains available for rapid burst export or integration with legacy VMS platforms.
• 16 SATA HDD bays with support for up to 160TB capacity (10TB per drive maximum): Configure RAID 5 or RAID 6 arrays with no single point of failure. Hot-swappable design means drive replacement without powering down the recorder.
• Dual HDMI display outputs (4K primary + 1080p secondary): Operator stations can display high-detail monitoring on the 4K output while a secondary tactical display on 1080p handles alerts or PTZ pan-tilt-zoom control — typical in security operations centers.
• RAID 5/6 plus N+1 failover and Automatic Recovery Backup (ARB): Protects against simultaneous drive failure (RAID 5/6) and provides hot-standby failover to a peer NVR. ARB automatically backs up footage to external iSCSI storage if local drives fail — essential for mission-critical installations.
• Up to 200 Mbps simultaneous playback across all 64 channels: Forensic review of 64-stream recordings doesn't throttle — all channels play back in parallel at full resolution, critical when searching for evidence in multi-hour timelines.
• Fisheye dewarping (local and via CMS): If you deploy panoramic 360° cameras, the XRN-6420DB4 applies real-time or archived dewarping, eliminating the need for separate dewarping appliances.
• Event-triggered recording and pre/post buffering: Record only on motion, sensor input, or video loss detection; pre-event buffers (pre-rolling) capture activity up to 60 seconds before the trigger fires.
• 2-way audio with G.711, G.726, and AAC codec support: Operator can speak to on-site staff via camera audio output, useful for access control or incident response scenarios.

Integration & Compatibility

Network Protocols & Camera Support: The XRN-6420DB4 supports SUNAPI (proprietary Hanwha API) and ONVIF standards. This means it integrates natively with the Hanwha IP cameras lineup — particularly AI-enabled models that push analytics (object detection, defocus alerts) directly to the recorder — while also accepting feeds from third-party ONVIF-compliant sources.

User Access & Remote Monitoring: Maximum 4 simultaneous users (1 local console, 3 remote via network). Remote sessions are rate-limited to 10 live streams and 3 simultaneous search playback sessions per user, preventing bandwidth exhaustion on corporate networks. iOS and Android apps, plus Chrome/Edge/Safari web browser access (Windows 10+, macOS 13.5.2+), ensure flexibility in how operators connect.

External Storage & Redundancy: iSCSI external storage compatibility provides expansion beyond the 16 onboard bays, critical for facilities with multi-year retention mandates. The ARB failover feature integrates with a secondary NVR, allowing one unit to back up to another in real-time — a common pattern in high-security campuses.

Power & Environment: The XRN-6420DB4 draws a maximum 265W and operates across 0–40°C with 20–85% humidity tolerance — suitable for server rooms and climate-controlled security centers but not outdoor cabinets. Dual SMPS power supplies provide internal redundancy, so a single PSU failure does not halt recording.

When to Choose a Different Model

If your deployment requires fewer than 16 channels, examine lower-channel-count network video recorders in the Hanwha lineup — they reduce cost and footprint for smaller facilities. If you need more than 160TB of onboard storage without relying on external iSCSI expansion, consider stacking units or consulting a systems integrator about distributed recording strategies. If sub-zero outdoor operation is mandatory (e.g., arctic research stations), confirm environmental limits with the manufacturer — this unit specifies 0°C minimum.

Frequently Asked Questions

Q: Does the XRN-6420DB4 work with non-Hanwha cameras?

A: Yes. ONVIF Protocol S/T compliance means any IP camera supporting ONVIF (most major brands do) will integrate. Hanwha AI cameras gain additional features like camera-native analytics and sensor-triggered events, but ONVIF-only devices will record video and basic motion detection.

Q: What is the warranty on the XRN-6420DB4?

A: Refer to the product datasheet or contact the manufacturer directly for warranty terms. Standard Hanwha commercial products typically carry a 3-year parts-and-labor warranty.

Q: Can I expand storage beyond 160TB?

A: Yes. iSCSI external storage compatibility allows connection of NAS or SAN targets for archival overflow. Automatic Recovery Backup (ARB) also backs footage to a secondary NVR or external iSCSI target.

Q: What is the maximum frame rate the XRN-6420DB4 can sustain across all 64 channels?

A: With H.265 compression and typical 2MP–5MP camera input, 30 fps per channel is the standard. 4K (32MP) input will reduce frame rate or require sub-second interval recording depending on bandwidth allocation and RAID mode.

Q: Does the XRN-6420DB4 support motion detection and analytics?

A: Yes. It supports camera-level motion detection, video analytics (via Hanwha AI cameras), defocus detection, and sensor-triggered events (alarm input). Pre/post event recording buffers capture activity around each trigger.

Q: What codecs does the XRN-6420DB4 support for recording?

A: H.265, H.264, and MJPEG. H.265 is the default for new deployments due to storage efficiency; MJPEG can be enabled for compatibility with older VMS platforms or rapid export workflows.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XRN-6420DB4 balances high channel density with real-world operational constraints. At 64 channels, most deployments won't max out the 520 Mbps bandwidth with 30 fps 4K; you're more likely running 2MP–5MP streams at 30 fps across most channels, with a few high-res tactical feeds on the 4K display output. The dual HDMI configuration — 4K primary plus 1080p secondary — reflects how security operations centers actually work: one operator monitors detail while another manages PTZ pan-tilt-zoom or alarm response on a secondary display.

Technical Highlights:

• H.265 codec cuts per-camera storage footprint 40–60% versus H.264 — on a 160TB array recording 64 channels 24/7, this translates to 4–8 additional weeks of retention without buying extra drives.
• RAID 5/6 with N+1 failover means single-drive failure does not halt recording — critical difference from single-disk NVRs. The cost is drive-bay utilization: RAID 6 on a 16-bay system effectively leaves 3 bays as overhead, but the protection justifies the tradeoff in high-availability environments.
• 200 Mbps simultaneous 64-channel playback — forensic teams can review all 64 feeds in parallel without waiting for serial rebuffer cycles. This matters when searching hour-long timelines for a 10-second incident.
• ARB (Automatic Recovery Backup) to iSCSI — if onboard RAID array fails, footage automatically backs to external NAS. It's not real-time replication, but it prevents total loss if multiple drives fail or a fire damages the unit.

Deployment Considerations:

• Watch the HDD configuration math: RAID 5 requires minimum 3 drives; RAID 6 needs minimum 4. With 16 bays total, you're likely running one 8-drive RAID 6 array (leaving 1 hot spare) or two 7-drive arrays. Plan capacity before purchase.
• iSCSI failover and ARB require a second NVR or NAS appliance — that's infrastructure cost on top of the recorder itself. For single-site deployments without redundancy mandate, standard RAID 5 may be sufficient.
• 4 simultaneous users is a constraint for large operations centers — if 8+ security staff need live access, you'll need a separate VMS appliance (Milestone, Genetec, etc.) that pulls from this NVR as a recording backend rather than using the NVR's built-in web interface.

Best fit: campuses, transportation terminals, and industrial facilities where 64-channel capacity justifies the footprint, H.265 storage savings are material over multi-year retention, and RAID 6 failover aligns with uptime mandates. Not ideal for single-camera or single-zone sites, nor for deployments requiring sub-zero outdoor operation.
