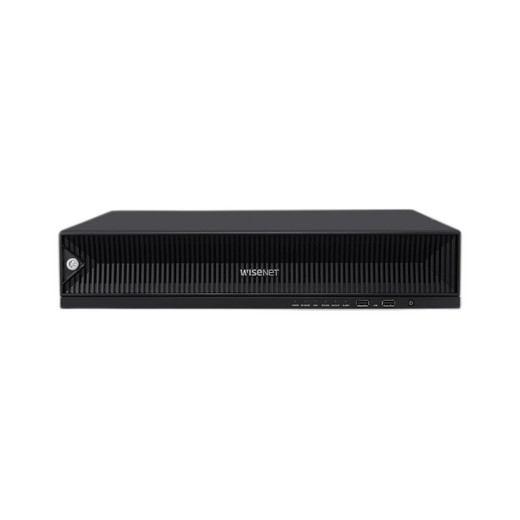

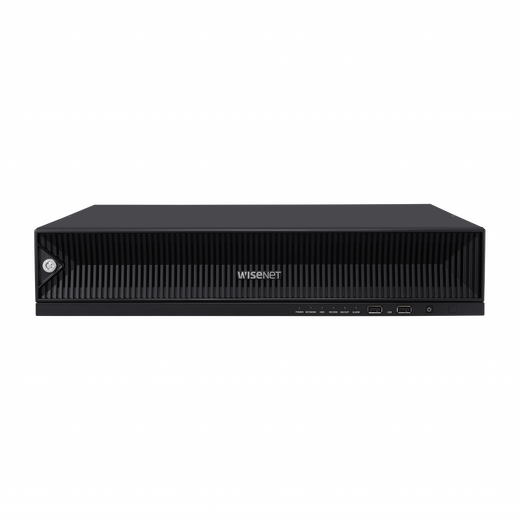

Hanwha XRN-6410RB2 64CH 8K 400Mbps NVR

Hanwha XRN-6410RB2 64CH 8K 400Mbps NVR

The Hanwha XRN-6410RB2 is a professional-grade 64-channel network video recorder engineered for large-scale surveillance deployments requiring ultra-high resolution recording, intelligent playback, and enterprise-class reliability. Supporting up to 32MP camera inputs with 400Mbps recording bandwidth and dual 4K/Full HD display outputs, this system delivers comprehensive video management for critical infrastructure, multi-site facilities, and complex security operations across diverse environments.

Key Features

• 64-channel network camera input supporting 32MP to CIF resolution
• 400Mbps maximum recording bandwidth with H.265, H.264, and MJPEG compression
• Dual display output: HDMI 1 (3840×2160 @ 30Hz) and HDMI 2 (1920×1080 @ 60Hz)
• Up to 80TB internal storage capacity with 8 SATA slots (max 10TB per drive)
• RAID 5/6 redundancy with N+1 failover and ARB support for maximum uptime
• Advanced playback: simultaneous 112-channel playback (64CH local, 16CH per remote user)
• Multi-screen display layouts including 1, 2H, 2V, 3V, 4, 6, 8, 9, 13, 16, 25, 36, 64, and sequence modes
• 64-channel two-way audio with G.711, G.726, and AAC compression
• Flexible recording modes: normal, dual stream, scheduled, and event-triggered with pre/post event capture
• iSCSI external storage support for scalable backup solutions

Technical Specifications

The XRN-6410RB2 runs a Linux-based embedded operating system optimized for H.265 codec efficiency, enabling superior bandwidth and storage utilization across high-channel-count deployments. Recording resolution ranges from 32MP (15fps H.265) to CIF, with playback resolution support up to 32MP via H.265 or 9MP via H.264. The system supports intelligent event triggering through alarm inputs, video loss detection, motion detection, video analytics, defocus alerts, audio events, and dynamic event processing with configurable actions including email notification, event push, PTZ presets, alarm outputs, and monitor triggering.

Multi-user access accommodates up to 4 simultaneous users (1 local, 3 remote) with intelligent search and playback via date/time, event lists, text search, and smart search capabilities. RAID mode supports up to 64Mbps playback bandwidth across all 64 channels simultaneously, while non-RAID mode provides 32Mbps. The system includes 8 alarm inputs, 4 alarm outputs, 3 Gigabit Ethernet ports, and comprehensive protocol support including IPv4/IPv6, TCP/IP, RTSP, HTTP, HTTPS, ONVIF Profile-S, and proprietary SUNAPI.

Security & Management

Enterprise security features include IP address filtering, comprehensive user access logging, 802.1x authentication, device certificate encryption via Hanwha Techwin Root CA, and signed firmware verification. The system supports P2P configuration via QR code for simplified deployment and includes Hanwha DDNS for remote access. Compatible viewer software includes WAVE, SSM, webviewer, Smart Viewer, and Wisenet mobile apps for iOS and Android, with support for up to 16 live channels and 4-channel playback on mobile devices.

Applications

• Enterprise data centers and critical infrastructure protection
• Large retail and hospitality chains
• Transportation hubs and parking facilities
• Municipal and government facilities
• Multi-site corporate campus surveillance
• Advanced AI-ready deployments with Wisenet AI camera compatibility

Karl Wilson

The XRN-6410RB2 represents Hanwha's enterprise-tier offering for organizations requiring maximum channel density with ultra-high resolution support. The 400Mbps bandwidth combined with H.265 compression delivers exceptional efficiency—critical for managing 32MP streams across 64 channels without prohibitive storage costs. The dual RAID arrays and N+1 failover architecture ensure production surveillance continuity for mission-critical applications.

Advanced playback capabilities, particularly the 112-channel simultaneous playback capability, enable comprehensive multi-site investigations and forensic analysis. The system's integration with Wisenet AI cameras positions it as future-proof for organizations implementing intelligent video analytics across large deployments. For large-scale integrators and enterprises, this NVR provides the density, redundancy, and feature depth required for complex surveillance ecosystems.
