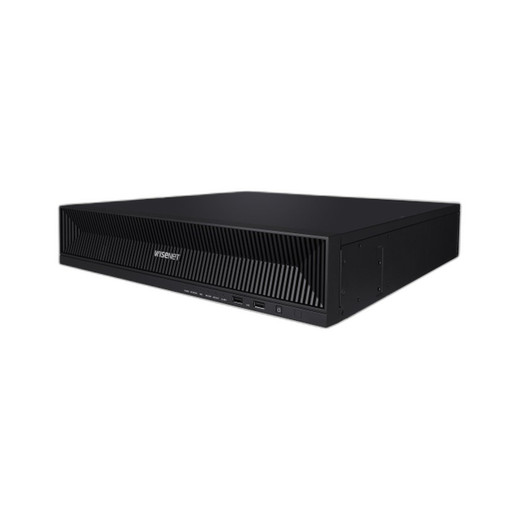

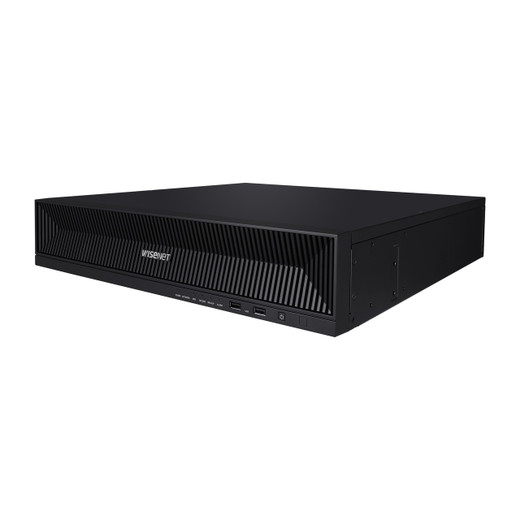

Hanwha XRN-6410B2 64CH 8K 400Mbps NVR

Hanwha XRN-6410B2 64CH 8K 400Mbps NVR

The Hanwha XRN-6410B2 is an enterprise-class 64-channel network video recorder engineered for large-scale surveillance deployments requiring maximum throughput and storage capacity. Supporting up to 32MP recording resolution, 400Mbps bandwidth, and 80TB total storage across eight SATA drives, this Linux-based NVR delivers mission-critical performance for complex security infrastructures with redundancy and failover capabilities.

Key Features

• 64-channel network camera input with ONVIF and SUNAPI protocol support
• Up to 32MP recording resolution with H.265, H.264, and MJPEG compression
• 400Mbps maximum recording bandwidth for high-bitrate multi-camera capture
• Dual HDMI outputs: 4K (3840×2160 @ 30Hz) and 1080p (1920×1080 @ 60Hz)
• Eight SATA slots supporting up to 80TB total storage (10TB per drive maximum)
• Multi-screen display modes: 1/2H/2V/3V/4/6/8/9/13/16/25/36/64-channel layouts
• Advanced recording modes: Normal, Dual Stream, Schedule, Event with Pre/Post triggers
• N+1 failover and ARB redundancy for mission-critical operations
• Simultaneous playback: up to 112 channels (64 local, 16 remote per user)
• Up to four concurrent users (one local, three remote) with intelligent search
• 32Mbps playback bandwidth for smooth multi-channel retrieval
• Event triggering: alarm inputs, video loss, camera sensors, motion detection, video analytics, defocus, and audio detection

Technical Specifications

This NVR decodes extreme frame rates up to 960fps at 720p and D1 resolution for forensic-level analysis. Recording supports normal, dual-stream, scheduled (continuous or event), and event-triggered modes with pre- and post-recording buffers. Playback modes include date/time calendar search, event list, text search, and smart search with fisheye dewarping via CMS.

Network connectivity includes three 1Gbps RJ-45 Ethernet ports with full IPv4/IPv6 support, DDNS, RTSP, HTTP, HTTPS, and SNMP protocols. Audio processing handles 64 network channels with G.711, G.726, and AAC compression at 16/48kHz with two-way communication. Security features include IP address filtering, user access logging, 802.1x authentication, device certificate encryption, and signed firmware. The system supports backup of up to 16 channels simultaneously with JPG/AVI file output over network or USB.

Mobile access via iOS and Android provides live viewing of 16 channels and playback of 4 channels with RTP, RTSP, HTTP, and CGI protocols. PTZ control includes 300 presets via GUI, web viewer, or SPC-2000 controller. Integrated AI Search is compatible with Wisenet AI cameras for object attribute detection.

Physical & Operational

Dimensions: 438 × 86 × 434.9mm; Weight: 7.5kg (excluding drives). Operating temperature: 0–40°C; Humidity: 20–85% RH. Power consumption: maximum 138W with eight 10TB drives. Input voltage: 100–240 VAC, 50/60Hz. Includes HDD key lock, capacity monitoring, system/event logging (100,000 entries each), and multilingual support (21 languages).

Jerry Tildsen

The XRN-6410B2 targets large-scale enterprise surveillance requiring maximum channel density and storage scalability. The 400Mbps bandwidth ceiling and 80TB capacity make it suited for high-bitrate deployments with 4K/32MP cameras, while H.265 compression efficiency extends retention periods. N+1 failover and ARB redundancy protect against single-point failure—critical for 24/7 operations.

The dual HDMI output scheme (4K main display, 1080p auxiliary) supports control room installations with mixed-resolution monitoring. Simultaneous 112-channel playback across 64 local and 16 remote streams per user enables efficient forensic investigation across multiple client sessions. ONVIF/SUNAPI support ensures interoperability with third-party cameras and VMS systems, reducing vendor lock-in.

Linux foundation provides stability and long-term support for enterprise environments. Backup capabilities for up to 16 channels over network or USB simplify evidence export workflows.
