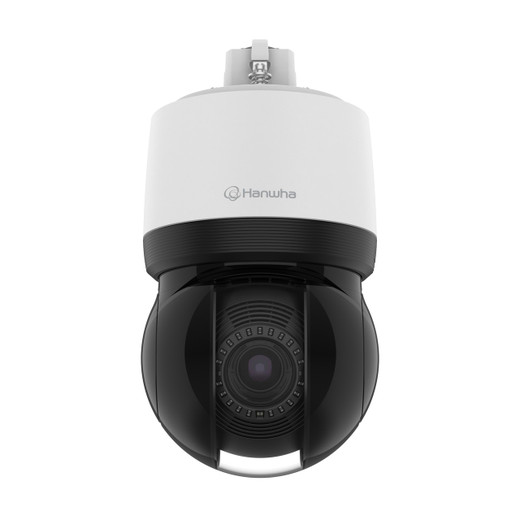

Hanwha XNP-C6403R 2MP 40x Optical Zoom Outdoor PTZ IP Camera

Hanwha XNP-C6403R 2MP Outdoor PTZ IP Camera

The XNP-C6403R is a professional-grade outdoor PTZ camera engineered for large-area surveillance where extended zoom range, precision tracking, and extreme environmental durability are non-negotiable. Built around a 2MP sensor, 40x optical zoom, and Wisenet 7 AI-driven analytics, this camera delivers the operational flexibility of traditional pan-tilt-zoom systems combined with intelligent object detection and automated target locking — eliminating much of the manual camera control overhead that makes PTZ deployments labor-intensive.

Optical and Zoom Performance

The 40x optical zoom spans a focal length of 4.25–170mm, delivering detection range of 59.5 meters wide-angle and 2,340 meters in telephoto mode. Recognition accuracy extends to 468 meters — meaning license plate capture and facial attribute extraction are viable at distances that would render fixed-lens cameras useless. The DC auto iris lens adjusts from F1.6 (wide) to F4.95 (tele), maintaining consistent exposure without manual intervention across lighting transitions. An additional 32x digital zoom provides extreme magnification for forensic review, though recognize that digital magnification does not improve resolution — it enlarges existing pixels and should be used selectively.

Pan speed reaches 700°/second, enabling rapid target handoff and real-time pursuit. The 360° endless pan with 110° tilt range (90° up to -20° down) covers perimeter sweeps and elevation changes without mechanical limits. Preset accuracy of ±0.1° ensures the camera returns reliably to configured positions — critical for scheduled patrol patterns or multi-operator facilities where consistency matters.

Advanced Imaging and Night Operation

The camera operates at 0.05 Lux in full color and 0 Lux in black-and-white with IR active, handling twilight transitions via automatic ICR (Infrared Cut-out) switching. Extreme WDR (150dB) combined with HLC, BLC, and Smart Scene Dynamic Range compensation manages backlit scenes — parking lots with sun-facing building facades, for example — without sacrificing shadow detail or clipping highlights. This matters in real deployments where exposing the perimeter comes at the cost of washing out the facility entrance.

The 200-meter IR range with integrated lens heater and spin-dry mechanism addresses wet and cold climates directly. The lens heater prevents condensation and water film buildup that degrades night vision, while the spin-dry function sheds water after heavy rain — small details that separate reliable 24/7 systems from those requiring maintenance cycles.

AI-Driven Analytics and Tracking

Powered by Hanwha's Wisenet 7 architecture, the XNP-C6403R classifies persons, vehicles, faces, and license plates on-camera, reducing false-positive alerts that plague motion-detection-only systems. Auto-tracking locks onto detected objects and maintains focus through pan and zoom transitions — eliminating the need for an operator to manually follow a suspect or tracked vehicle across the field of view. Motion detection supports up to 8 polygonal zones for granular triggering, and 32 privacy masks allow masking of sensitive areas (e.g., neighboring properties, employee parking) without requiring footage deletion or post-processing.

Codec and Storage Efficiency

H.265 video compression reduces file sizes 40–60% compared to H.264 depending on scene complexity — a real factor when recording 24/7 across dozens of PTZ cameras. WiseStream III smart codec further adapts bitrate to scene activity: static perimeter shots consume less bandwidth than active pursuit sequences. Dual microSD card slots support up to 2TB of local edge storage, enabling multi-day on-device buffering if network connectivity drops or during heavy recording periods.

Environmental Durability and Security

IP66 and IK10 ratings certify resistance to direct rain, dust ingress, and high-impact vandalism. Operating temperature range of -40°C to +50°C (-40°F to +122°F) covers arctic and desert deployments; storage tolerance extends to -50°C to +60°C for equipment in unheated warehouses. NEMA 4X enclosure equivalence adds corrosion resistance for coastal installations.

Security hardening includes TPM with FIPS 140-2 Level 2 certification, 802.1X network authentication, HTTPS/SRTP encryption, and signed firmware. The camera supports ONVIF Profile S/G/T/M, MQTT, and Hanwha Wisenet open APIs, integrating with third-party VMS platforms without proprietary lock-in.

Power and Deployment Considerations

The XNP-C6403R draws PoE++ (IEEE 802.3bt Class 6) with typical consumption of 24W. This exceeds standard PoE+ budgets — verify your switch provides adequate allocation per port. Multicast streaming supports up to 128 simultaneous users, suitable for large enterprise deployments with multiple control stations.

Integration with Hanwha and Third-Party VMS

Hanwha IP cameras in the PTZ line support ONVIF compliance, meaning integration with Milestone XProtect, Genetec Security Center, and Pelco systems is straightforward. Wisenet open platform APIs enable custom motion analytics workflows if your deployment requires beyond-standard object detection. Dual codec streaming (H.265 and H.264 simultaneously) accommodates legacy VMS platforms that haven't adopted H.265 decoders.

When to Choose a Different Model

If your deployment does not require 40x zoom or 360° pan — for example, a fixed-angle gate entry point — consider a fixed-lens outdoor IP camera in the Hanwha catalog. The XNP-C6403R's servo motors, extensive firmware, and PTZ control stack introduce maintenance overhead and power draw not needed for static coverage. Conversely, if you need sub-megapixel resolution or extreme zoom (beyond 40x optical), consult higher-resolution PTZ variants in the same family.

Ideal Applications

Perimeter security at airports, seaports, and critical infrastructure; traffic enforcement and intersection monitoring; industrial facility monitoring where pan-and-zoom automation reduces operator fatigue; and large-area outdoor storage (fuel depots, container yards, logistics hubs) where the combination of extreme zoom, IR range, and AI tracking delivers both deterrence and forensic capability.

Frequently Asked Questions

Q: What is the maximum PoE power requirement for the XNP-C6403R?

A: The camera draws PoE++ (IEEE 802.3bt Class 6) with typical consumption of 24W. Verify that your PoE switch allocates at least 30W per port to account for peak current during motor-intensive operations (pan/tilt/zoom transitions).

Q: Can the XNP-C6403R operate in sub-zero temperatures?

A: Yes. The operating temperature range is -40°C to +50°C (-40°F to +122°F), with an integrated lens heater to prevent condensation and maintain IR clarity in cold, wet conditions. Storage tolerance extends to -50°C (-58°F) for equipment staging in unheated facilities.

Q: Does the XNP-C6403R support ONVIF?

A: Yes. The camera supports ONVIF Profile S, G, T, and M, enabling integration with third-party VMS platforms including Milestone XProtect, Genetec, and Pelco without proprietary software dependencies.

Q: What is the IR illumination range?

A: The integrated IR delivers a 200-meter (656-foot) range with Wise IR technology and an integrated lens heater to manage condensation and maintain effective night vision in wet climates.

Q: How much local storage is available on the XNP-C6403R?

A: Dual microSD card slots support up to 2TB total (two 1TB cards), providing multi-day edge buffering for 24/7 operation. This supplements network recording and provides failover capacity if connectivity is interrupted.

Q: What compression codecs does the XNP-C6403R support?

A: The camera supports H.265, H.264, and MJPEG. H.265 reduces storage requirements 40–60% versus H.264 and is recommended for 24/7 multi-camera deployments. WiseStream III smart codec further optimizes bitrate based on scene activity.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNP-C6403R (often searched as XNP C6403R) represents enterprise-class outdoor surveillance where operational efficiency hinges on automation — not manual operator fatigue. The combination of 40x optical zoom with Wisenet 7 auto-tracking eliminates the need for constant manual pan-tilt control, a substantial labor saving in 24/7 security operations. The 200-meter IR range with integrated lens heater positions this camera for reliable performance in wet, cold climates where condensation kills night vision on unheated optics.

Technical Highlights:

• 40x Optical Zoom (4.25–170mm): Delivers license plate recognition at 468 meters and facial attribute capture at distance — forensic-grade clarity without requiring ultra-high megapixel sensors that bloat storage and network overhead.
• Extreme WDR (150dB) with HLC/BLC/SSDR: Parking lots with sun-glare and shadow zones render useless with standard WDR; the XNP-C6403R's tri-layer compensation holds detail across 150dB dynamic range, eliminating the common gotcha of backlit perimeter shots.
• H.265 + WiseStream III Codec: Reduces storage costs 40–60% versus H.264 on 24/7 recording. For a 16-camera perimeter system recording 30 days, this translates to weeks of additional retention per terabyte — real budget impact.
• AI-Driven Auto-Tracking with Object Classification: Wisenet 7 detects and locks persons and vehicles, then maintains focus through pan/zoom transitions. Eliminates false positives from motion-detection-only approaches and reduces alert fatigue in high-traffic perimeters.
• PoE++ (Class 6) at 24W Typical: Verify your switch allocates 30W+ per port. This is not a standard PoE+ camera — undersizing your power allocation is the leading setup failure on PTZ deployments.

Deployment Considerations:

• PTZ motors and servo systems demand more maintenance cycles than fixed cameras. Schedule annual lens and motor inspection if deployed in dusty or corrosive environments (coastal, industrial).
• The 360° endless pan is convenient for perimeter patrol but introduces complexity in VMS scheduling. Coordinate preset positions and dwell times across multiple operators to avoid conflicting commands.
• Dual microSD slots provide edge failover, but don't rely on them as primary storage for compliance-critical footage. Treat on-device microSD as temporary buffer only — always record to a networked NVR or NAS for forensic retention.

The XNP-C6403R shines in perimeter security at airports, seaports, and critical infrastructure where automated pursuit tracking and extreme zoom reduce operator workload and deliver forensic-grade evidence. It's overkill for fixed-angle gate coverage; it's essential for sprawling outdoor sites where zoom range and automated target lock transform surveillance from reactive to proactive.
