Hanwha XND-6081FZ 2MP Indoor Dome PTRZ Camera

Hanwha XND-6081FZ 2MP Indoor Dome PTRZ Camera

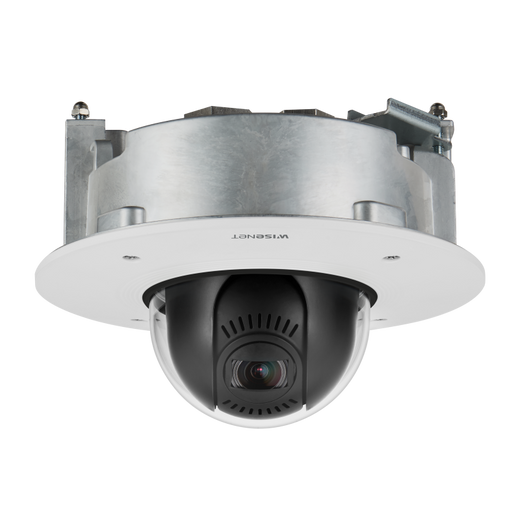

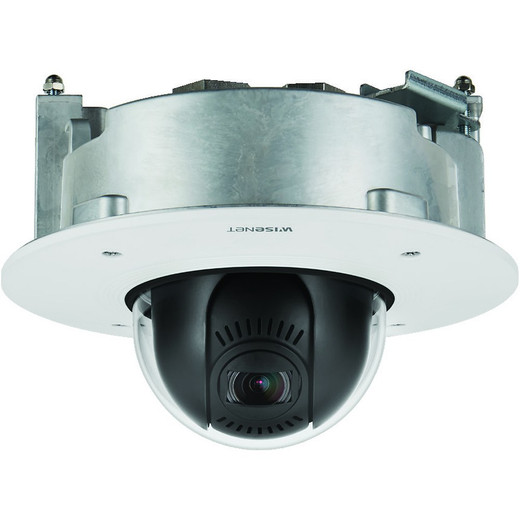

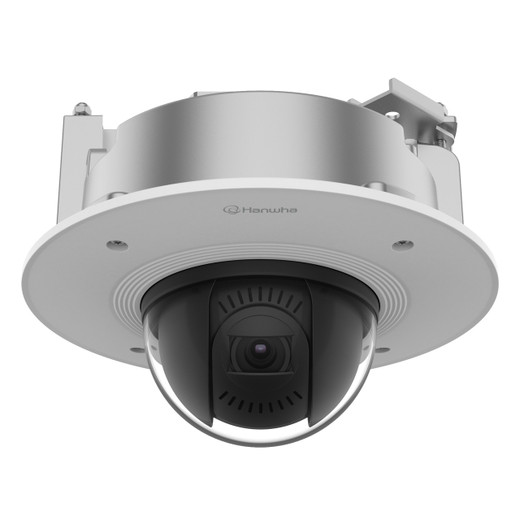

The Hanwha XND-6081FZ is a professional-grade 2MP indoor flush-mount dome camera engineered for high-security surveillance applications requiring precise pan, tilt, rotate, and zoom control. Built on a 1/2.8" CMOS sensor with 1945×1097 effective pixels, this camera delivers sharp 1080p Full HD imagery with exceptional low-light performance and advanced image processing capabilities. Its 4.3x motorized varifocal lens (2.8–12mm) spans a horizontal field of view from 119.5° (wide) to 27.9° (telephoto), enabling operators to monitor broad areas or zoom in on distant subjects with clarity.

Core Camera Performance

• Low-Light Excellence: Color sensitivity down to 0.015 Lux and monochrome down to 0.0015 Lux with F1.4 aperture; auto day/night switching with ICR
• Wide Dynamic Range: 150dB WDR with supplementary Backlight Compensation (BLC), Highlight LED Compensation (HLC), and Smart Super Dynamic Range (SSDR) for balanced exposure in mixed lighting
• Frame Rate & Codecs: Up to 60fps in H.265/H.264 (Main/Baseline/High profiles) and 30fps MJPEG; WiseStream II adaptive bitrate coding minimizes bandwidth without sacrificing quality
• Optical Stabilization: Digital image stabilization and Lens Distortion Correction (LDC) ensure steady, geometrically accurate video
• Environmental Resilience: Defog capability combats obscured imagery; supports electronic shutter speeds from 2 to 1/12,000 seconds for optimal exposure control

Advanced PTRZ & Motion Control

• Remote pan (±175°), tilt (0–85°), and rotate (±175°) with up to 200 pan/tilt cycles
• 8 independent motion detection zones with 8-point polygonal configuration
• 32 customizable privacy masking zones in multiple colors (grey, green, red, blue, black, white) or mosaic mode
• Video rotation options including Hallway View (90°/270°) for specialized mounting

Intelligent Analytics & Business Intelligence

• Event Detection: Shock, tampering, defocus, fog, face, and directional detection; virtual line crossing, loitering, and appear/disappear events
• Audio Integration: Bi-directional audio with selectable mic/line input and G.711/G.726 compression; shock and sound classification analytics
• Business Insights: People counting, queue management, and heatmap visualization for operational intelligence
• Digital Auto Tracking: Automatically follows moving subjects within the frame

Storage, Streaming & Connectivity

• Edge Storage: Dual SD/SDHC/SDXC slots supporting up to 512GB per slot for local backup and continuous recording
• Network Streaming: Unicast (20 simultaneous users) and multicast support; up to 10 profile streaming for flexible multi-client deployments
• Security Standards: HTTPS/SSL encryption, 802.1X authentication, IP filtering, digest login, and user access logging
• Protocols: Full IPv4/IPv6 stack including ONVIF (Profiles S/G/T), RTSP, RTCP, NTP, DNS, DDNS, QoS, and SNMP v1/v2c/v3

Physical & Power Specifications

• Design: Plenum-rated aluminum construction; white finish (RAL 9003); IP52 rated for dust and water ingress protection
• Dimensions: Ø205 × 155mm; weight 1850g; flush-mount ceiling or wall installation
• Power: PoE (IEEE 802.3af, Class 3; max 10W) or 12VDC (max 8.5W); ideal for retrofit and new installations
• Operating Environment: −25°C to +60°C; up to 90% RH; storage range −50°C to +60°C

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-6081FZ excels in environments demanding precise coverage adjustment and intelligent event response. The 150dB WDR combined with low-lux sensitivity makes it exceptionally versatile for mixed-lighting indoor spaces—lobbies, corridors, and retail areas. The motorized varifocal lens eliminates the need for multiple fixed-lens cameras, reducing deployment complexity and cost.

Advanced analytics (face detection, digital auto-tracking, directional motion) elevate situational awareness beyond basic motion detection. Dual SD card slots provide resilient local recording without mandatory NVR integration. ONVIF compliance and open API support ensure interoperability across management platforms.

The IP52 plenum rating and compact flush-mount form factor make it an ideal upgrade for existing drop-ceiling infrastructure where discrete, professional appearance is critical.
