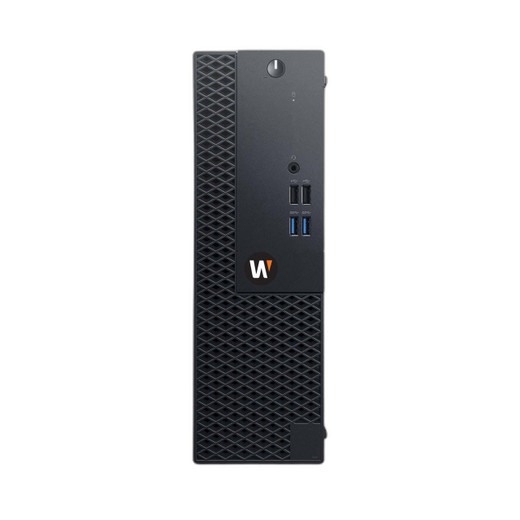

Hanwha WWT-P-3202L Wisenet WAVE Client Workstation

Hanwha WWT-P-3202L Wisenet WAVE Client Workstation

The Hanwha WWT-P-3202L is a compact, purpose-built client workstation designed for seamless integration with Wisenet WAVE video management systems. This small form factor solution delivers reliable on-site and remote access to your surveillance infrastructure, combining enterprise-grade performance with a minimalist footprint ideal for control rooms, security operations centers, and distributed monitoring deployments.

Key Features

• Preloaded Wisenet WAVE video management software with dual OS support
• Intel Core i3 12th Generation processor for responsive performance
• 8GB DDR4 RAM and 256GB SSD for fast application loading
• Nvidia Quadro T400 GPU with triple mDP outputs plus HDMI adapters
• Compact 3.7" x 11.5" x 11.4" chassis weighing just 11.57 lbs
• Includes USB keyboard and mouse for immediate deployment
• Dual operating system support: Windows 10 IoT Enterprise or Ubuntu 20.04 LTS
• Multiple USB 3.2 and USB 2.0 ports for peripheral expansion

Technical Specifications

• Processor: Intel Core i3 12th Generation
• Memory: 8GB DDR4
• Storage: 1x 256GB SSD (internal)
• Graphics: Nvidia Quadro T400 with 3x mDP and 2x HDMI adapters
• Networking: 1x 1GbE RJ-45 port for camera and recorder connectivity
• Connectivity: 4x USB 3.2 Gen 1, 4x USB 2.0, 3.5mm audio output
• Power: 180W 80 Plus Bronze supply, 100–240V AC input, max 180W consumption
• Operating Temperature: 41°F to 113°F (5°C to 45°C)
• Certifications: UL, cUL, CB, FCC, 80 Plus Bronze

Applications

Ideal for security operations centers, control rooms, and distributed surveillance monitoring. Supports Wisenet and ONVIF-conformant IP cameras for flexible camera ecosystem integration. The dual-display capability via mDP outputs enables multi-monitor setups for enhanced situational awareness.

Eden Phillips

The WWT-P-3202L strikes an effective balance between capability and space efficiency. The 12th Gen Core i3 provides ample processing power for Wisenet WAVE operations without excessive power draw, while the Nvidia Quadro T400 ensures smooth video playback across multiple displays. The compact form factor and 180W power consumption make this workstation suitable for installations where space or power budgets are constrained.

Dual OS support offers deployment flexibility, and the inclusive keyboard/mouse bundle reduces implementation friction. The generous USB port complement accommodates PTZ controllers, access readers, and other security peripherals. This is a pragmatic choice for organizations standardizing on Wisenet ecosystems and requiring reliable, scalable monitoring endpoints.
