Discontinued — No Longer Available New
This model has been discontinued by Hanwha. Shop current Hanwha products → or see the recommended alternatives below.

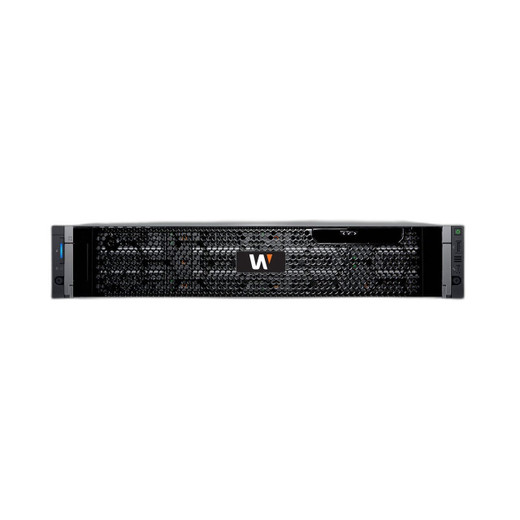

Hanwha WRR-P-S206S Wisenet WAVE 2U Rack Server
The Hanwha WRR-P-S206S is an enterprise-class 2U rack-mount video management server purpose-built for large-scale IP surveillance deployments. Pre-loaded with Wisenet WAVE Professional video management software and configured with RAID 6 redundancy, this server delivers 470 Mbps of recording bandwidth and supports up to 416TB of raw storage capacity, making it ideal for organizations requiring massive video archive capability and continuous 24/7 recording operations.
Key Features
- Wisenet WAVE Professional video management software with 4 pre-loaded licenses
- 470 Mbps recording bandwidth for high-throughput multi-camera environments
- Up to 416TB raw storage (349TB usable) with 26 hot-swappable drive bays
- Dual Intel Xeon Silver 4216 processors with 32GB DDR4 RAM
- Redundant 1100W power supplies for continuous operation
- Multiple RAID configurations (0, 1, 5, 6, 10) with 8GB NV cache
- Dual gigabit Ethernet plus dual 10GbE SFP+ ports for flexible networking
- Windows Server 2019 Standard operating system
- Includes sliding rail kit with cable management arm
- Supports Wisenet and ONVIF-conformant IP cameras
Technical Specifications
Storage & Performance: The server features 2 x 240GB dual RAID 1 SSDs for the OS drive and 24 x 3.5" front-mounted plus 2 x 3.5" rear-mounted hot-swappable bays for data storage. Default RAID 6 configuration provides fault tolerance and 8GB NV cache accelerates I/O operations. The 2U chassis is compact at 17.6" W x 31.9" D x 3.4" H while supporting massive capacity.
Processing Power: Dual Intel Xeon Silver 4216 Series processors (16 cores/32 threads each, 2.1-3.2 GHz) with 32GB DDR4 memory deliver the computational horsepower required for simultaneous video encoding, decoding, and management operations at scale.
Connectivity: Two RJ45 gigabit Ethernet ports handle standard network traffic, while dual 10GbE SFP+ ports enable high-speed data backup and camera feeds. Three MiniDP video outputs (with HDMI adapter included) plus dual VGA ports support multi-monitor configurations.
Reliability: Redundant power supplies ensure continuous operation even during PSU failure. Wide operating temperature range (50-95°F standard, 40-104°F extended) and 10-80% humidity tolerance support diverse deployment environments. UL, cUL, CB, and FCC certifications confirm compliance with international standards.
Applications
Ideal for enterprise security operations centers, large retail chains, transportation hubs, government facilities, and critical infrastructure installations requiring centralized video management, massive storage capacity, and high-availability redundancy. The Wisenet WAVE platform supports unlimited camera channels and provides advanced analytics, event management, and integration capabilities.
This server represents Hanwha's enterprise-tier VMS solution for organizations that have outgrown mid-range systems. The dual-processor architecture and 32GB RAM provide headroom for complex video analytics and simultaneous client connections. The configurable RAID options allow administrators to optimize for either performance or redundancy based on their risk profile.
The inclusion of both gigabit and 10GbE networking reflects modern enterprise expectations for bandwidth flexibility. Pre-loaded Wisenet WAVE licenses reduce deployment time. Storage capacity approaching 416TB raw (349TB usable) supports 6+ months of continuous recording from dozens of high-bitrate cameras, critical for compliance and forensic investigations.
The 2U form factor maximizes storage density while remaining rack-standard. Hot-swap bays enable non-disruptive maintenance. For organizations standardized on Hanwha's ecosystem, this server provides a scalable, future-proof platform.
