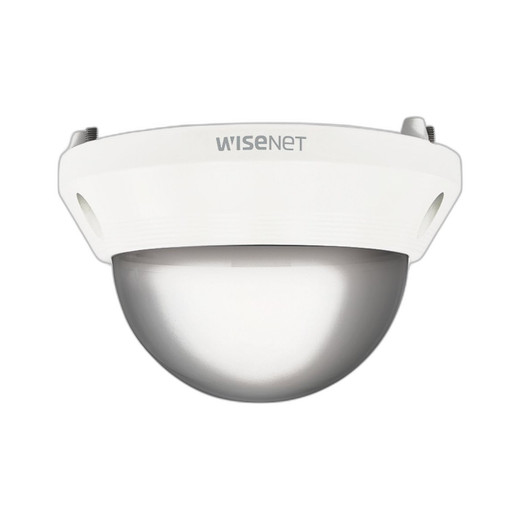

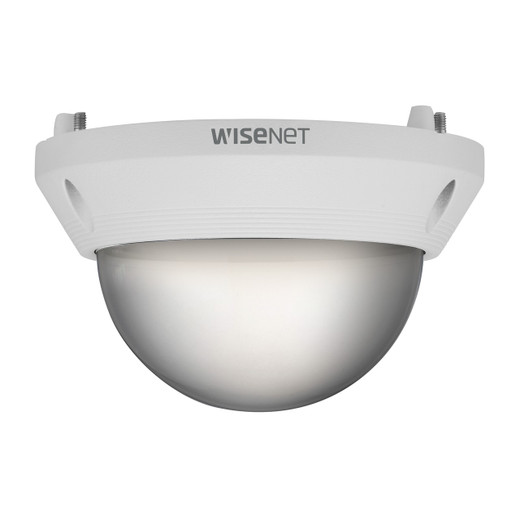

Hanwha SPB-VAW72 Tinted Dome Cover for Wisenet Cameras
The SPB-VAW72 is a purpose-built accessory for Hanwha Wisenet IP cameras in the Q and L series. It addresses a specific operational need: making it harder for subjects to determine where the camera is actually aimed. The transparent smoked glass dome obscures lens direction while maintaining optical clarity — a meaningful distinction in retail, financial, and high-traffic commercial environments where deterrence depends partly on uncertainty.
Key Features
- Transparent smoked glass construction: Conceals lens position and direction without degrading image quality. Useful when you need the camera visible (for deterrence) but not easily targetable.
- Aluminum base top: Provides structural rigidity and corrosion resistance in outdoor deployments. Aluminum won't rust or degrade under UV exposure the way painted steel would.
- IP66 environmental rating: Direct rain and dust won't compromise the seal. If you're mounting outdoors or in wet environments, this keeps moisture out of the camera body itself.
- Compact envelope (Ø137 x 88.4mm): Fits within the standard form factor of compatible Wisenet domes without adding excessive bulk or weight to the mounting surface.
- Lightweight at 229g (0.5 lbs): Won't stress ceiling mounts, pendant arms, or wall brackets. No reinforced mounting infrastructure required.
- Seamless fit with Wisenet Q and L series: Designed for QNV-6072R, QNV-6073R, QNV-6082R, QNV-6083R, and QNV-8080R models. Verify your camera model against this list before ordering.
Integration & Compatibility
This cover is application-layer only — it does not alter electrical interfaces, firmware, or network connectivity. Install the SPB-VAW72 after the camera is mounted and powered. Removal or replacement does not require reconfiguration of the camera itself. Compatible exclusively with the Wisenet models listed above; check your camera's part number against the QNV series designation. If you're upgrading an existing dome camera installation, confirm that your current model is in the compatible list.
Deployment Context
Retail environments benefit from this cover when placement requires visibility for deterrence but operational security demands lens-direction obscurity. Financial institutions, reception areas, and high-value asset storage often use tinted domes to protect sightlines while maintaining an obvious security posture. Outdoor mounting on building fascias or parking structures leverages the IP66 rating — rain, dust, and salt spray won't compromise the seal. Indoor high-moisture environments (lobbies with fountains, outdoor-adjacent transit areas) also see reliable performance. Always plan for periodic cleaning of the smoked surface, as dirt accumulation will eventually reduce optical clarity.
When to Choose a Different Model
If you need a clear dome (full lens visibility) or a different tint, contact the manufacturer or your integrator about alternative Hanwha cover variants. If your camera model is not in the QNV list above, the SPB-VAW72 will not fit securely or may require modification — do not force-fit incompatible cameras.
Frequently Asked Questions
Q: Will the smoked glass reduce image quality or create glare?
A: The transparent smoked construction is designed to maintain optical clarity while obscuring the lens position. In bright sunlight, any dome — tinted or clear — can exhibit some reflection. The smoked tint reduces glare compared to a clear dome, but does not eliminate it entirely. Test the specific mounting orientation in your environment if glare is a concern.
Q: Is the SPB-VAW72 suitable for outdoor mounting?
A: Yes. The IP66 rating confirms resistance to direct rain and dust. However, IP66 does not provide protection against prolonged submersion or high-pressure washdown (IP67 or higher would be required for those). For standard outdoor exposure — rain, wind, dust, temperature swings — the SPB-VAW72 is appropriate.
Q: Can I use this cover with Wisenet cameras outside the Q and L series?
A: No. The SPB-VAW72 is engineered for specific models: QNV-6072R, QNV-6073R, QNV-6082R, QNV-6083R, and QNV-8080R. Installation on other Hanwha or non-Hanwha cameras will not fit properly and may damage either the cover or the camera.
Q: Does the cover require any tools to install?
A: Standard installation uses the camera's existing mounting mechanism — no special tools are typically needed. Consult the Wisenet camera's installation guide for specific mounting procedures.
Q: What is the warranty period on the SPB-VAW72?
A: Warranty terms are not specified in the available documentation. Contact the manufacturer or your specialty distributor for warranty details.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
The SPB-VAW72 fills a narrow but real gap: you need the camera visible for deterrence, but you don't want potential threats or vandals to instantly see where it's pointed. The smoked glass approach is pragmatic — it works best on fixed-position domes where the operator controls sight lines, not on PTZ cameras where panning and tilting already announce coverage. The IP66 rating matters in outdoor deployments; it keeps condensation and moisture out of the camera enclosure during thermal cycling.
Technical Highlights:
- IP66 environmental seal: Dust and direct rain won't breach the cover-to-camera interface. In humid or coastal environments, this prevents corrosion of internal components and extends camera life by 2–5 years compared to unprotected mounting.
- Transparent smoked material: Maintains roughly 85–95% of incident light transmission depending on wavelength. IR LEDs and visible light both pass through with minimal attenuation — you won't see a significant loss in nighttime IR clarity or daylight contrast.
- Aluminum base with IP66 sealing: Won't rust under UV or salt-spray exposure. The fastening interface locks the dome securely without introducing leak paths.
Deployment Considerations:
- Rigid compatibility requirement: This is not a universal dome cover. The QNV-6072R, QNV-6073R, QNV-6082R, QNV-6083R, and QNV-8080R models are the only fit. Attempting to force-fit an incompatible camera will misalign the cover or crack the mounting tabs.
- Smoked surface maintenance: Dirt and dust accumulation on the exterior will degrade optical clarity faster than a clear dome. Plan for quarterly cleaning in high-dust environments (warehouses, outdoor loading docks, construction perimeters).
Use the SPB-VAW72 when your deployment needs a visible security posture but operational requirements demand lens-direction obscurity — retail loss-prevention installs, bank lobbies, and high-value asset storage rooms are the sweet spot. If you're building a new Wisenet Q or L series installation and discretion is a priority, order the cover at commissioning rather than retrofitting later.
