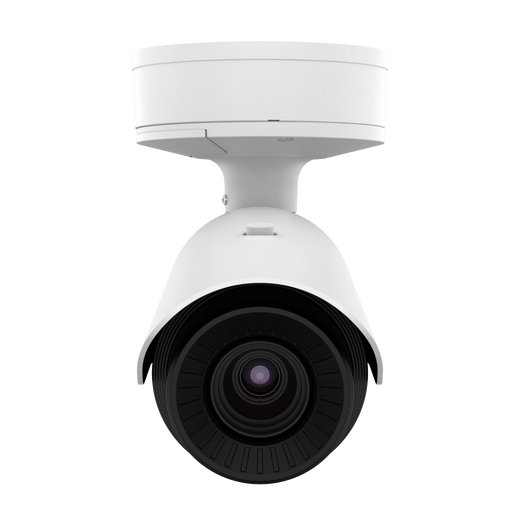

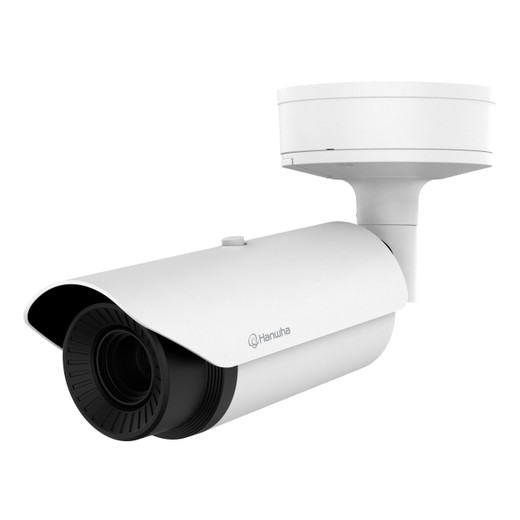

Hanwha TNO-L4040T Outdoor Thermal AI Bullet Network IP Camera
The Hanwha TNO-L4040T is a high-performance outdoor thermal bullet IP camera engineered for proactive threat detection and perimeter surveillance in critical infrastructure environments. Delivering thermal imaging at 640x480 resolution with a fixed 19mm lens, this camera excels at long-range detection while operating reliably in the harshest outdoor conditions.
Key Features
- 640x480 thermal resolution with 19mm fixed focal lens for extended detection range
- AI-driven analytics: directional motion detection, appear/disappear tracking, loitering detection, and virtual line crossing
- Temperature and shock detection with sound classification capabilities
- Tampering alerts and sound detection for enhanced security awareness
- H.265, H.264, and MJPEG codec support at up to 8fps frame rate
- IP66, IK10, and NEMA 4X-rated housing for extreme weather and impact protection
- Multiple power options: PoE, 24VAC, or 12VDC for flexible deployment
- Micro SD card slot supporting up to 256GB edge storage
- WiseStream II bandwidth optimization technology
- Hallway View for vertical coverage optimization
Technical Specifications
The TNO-L4040T combines durability with intelligence. Its IP66, IK10, and NEMA 4X-rated enclosure withstands water ingress, dust, severe impacts, and extreme weather—critical for industrial, utility, and perimeter security applications. The thermal sensor operates independently of lighting conditions, enabling 24/7 surveillance in complete darkness or obscured environments.
Video compression flexibility ensures efficient bandwidth utilization. Support for H.265 reduces file sizes compared to H.264, while MJPEG remains available for legacy system integration. Frame rates up to 8fps across all resolutions balance frame accuracy with network efficiency.
The integrated AI analytics engine detects multiple threat scenarios: unauthorized personnel loitering in restricted zones, objects crossing virtual boundaries, and unusual thermal patterns. Audio detection and shock sensing add multi-modal threat awareness. Tampering detection alerts operators to camera obstruction or relocation attempts.
Deployment Advantages
Power flexibility via PoE, 24VAC, or 12VDC accommodates existing infrastructure without costly rewiring. Edge storage via Micro SD card (up to 256GB) provides local backup independent of network connectivity. WiseStream II bandwidth optimization reduces storage and transmission costs while maintaining thermal detection quality.
The camera's thermal imaging capability is invaluable for applications where visual light cameras fail: detecting personnel in fog, heavy rain, or darkness; monitoring outdoor perimeters without visible light pollution; and identifying thermal anomalies in industrial equipment.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TNO-L4040T represents a mature thermal surveillance solution for organizations requiring 24/7 outdoor coverage in uncontrolled environments. Its combination of thermal imaging, AI analytics, and rugged construction makes it suitable for electric utility substations, pipeline monitoring, border/perimeter security, and industrial facilities where conventional cameras are insufficient.
The 640x480 thermal resolution is adequate for detection and recognition tasks at moderate ranges with the 19mm lens. Organizations planning large perimeter deployments should evaluate coverage requirements carefully, as thermal resolution cannot be digitally enhanced. Integration with existing IP infrastructure via PoE or alternative power sources simplifies installation. The WiseStream II codec management and edge storage capabilities reduce overall system bandwidth and storage overhead, lowering total cost of ownership for multi-camera deployments.
Available in White.
