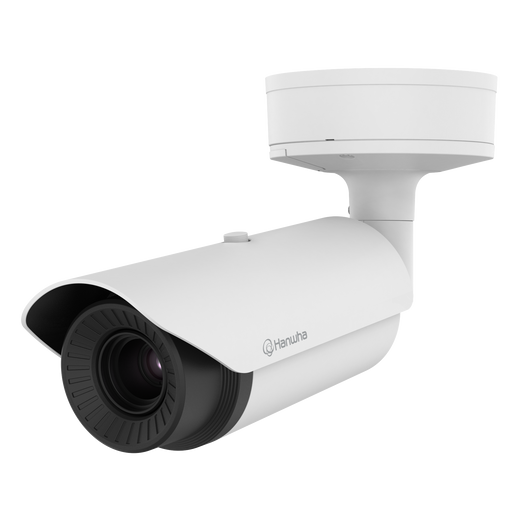

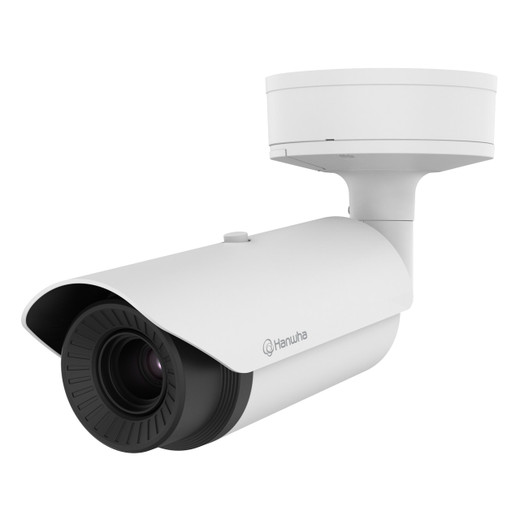

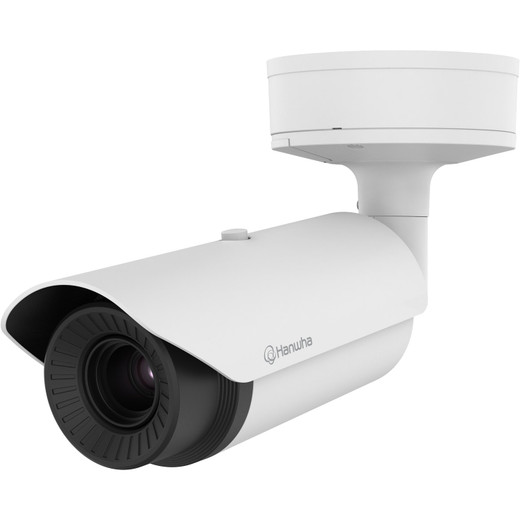

Hanwha TNO-L4040TR Outdoor Thermal AI Bullet Camera

Hanwha TNO-L4040TR Outdoor Thermal AI Bullet Network IP Camera

The Hanwha TNO-L4040TR is a rugged outdoor thermal bullet IP camera engineered for mission-critical monitoring in low-visibility and extreme environments. Built for perimeter security, industrial safety, and infrastructure protection, this camera delivers high-accuracy thermal imaging with advanced AI analytics to detect threats and anomalies in real time, regardless of lighting conditions.

Key Features

• Thermal imaging resolution up to 640x480 with 19mm fixed focal lens for long-range detection
• Wide temperature detection range: -20°C to 130°C (-4°F to 266°F)
• Hybrid color palettes and spot temperature monitoring for precise thermal analysis
• AI-powered analytics: motion detection, loitering, object entry/exit, tampering, directional movement, audio anomalies, and shock events
• Multiple codec support: H.265, H.264, and MJPEG compression
• Maximum frame rate of 8fps with minimal bandwidth footprint
• Audio support and built-in microphone for comprehensive event detection
• WiseStream II bandwidth optimization for efficient network utilization
• Hallway view mode for flexible deployment scenarios
• Edge storage via microSD card slot (up to 256GB)

Technical Specifications

• Durability Ratings: IP66 weatherproof, IK10 vandal-resistant, NEMA 4X for harsh outdoor conditions
• Power Options: PoE (Power over Ethernet), 24VAC, or 12VDC for flexible installation
• Video Compression: H.265, H.264, and MJPEG formats
• Temperature Monitoring: Accurate thermal readings across extreme temperature ranges

Applications

• Perimeter security for critical infrastructure and industrial facilities
• Fire and hot-spot detection in manufacturing and power generation
• Surveillance in total darkness or low-visibility conditions
• Border and boundary protection with long-range thermal detection
• Equipment monitoring and temperature anomaly detection
• Port and asset protection in harsh outdoor environments

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-L4040TR addresses a critical gap in outdoor surveillance: thermal imaging combined with intelligent AI analytics. Unlike traditional visible-light cameras, thermal imaging eliminates dependency on lighting conditions, making it invaluable for 24/7 perimeter security and detecting heat signatures from concealed threats. The 640x480 thermal resolution is industry-standard for long-range detection, and the 19mm lens is optimized for wide-area coverage.

AI capabilities elevate this beyond basic thermal imaging. Real-time detection of loitering, directional movement, and object entry/exit creates actionable alerts rather than passive video recording. Spot temperature monitoring enables facilities to detect equipment failures, fire hazards, or unauthorized activities based on thermal signatures rather than motion alone.

The multi-power design (PoE, 24VAC, 12VDC) reflects enterprise flexibility—installations can choose based on existing infrastructure. WiseStream II optimization and H.265 codec support reduce bandwidth by up to 50% compared to standard H.264, critical for facilities with high camera densities or limited network capacity.

IP66/IK10/NEMA 4X certifications ensure reliability in salt spray, extreme temperatures, and vandalism scenarios. The 8fps thermal frame rate is appropriate for threat detection workflows; thermal imaging requires less frame rate than visible-light video due to the nature of heat signatures.
