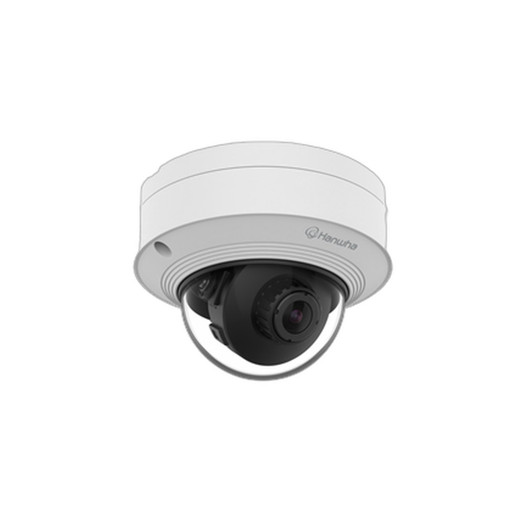

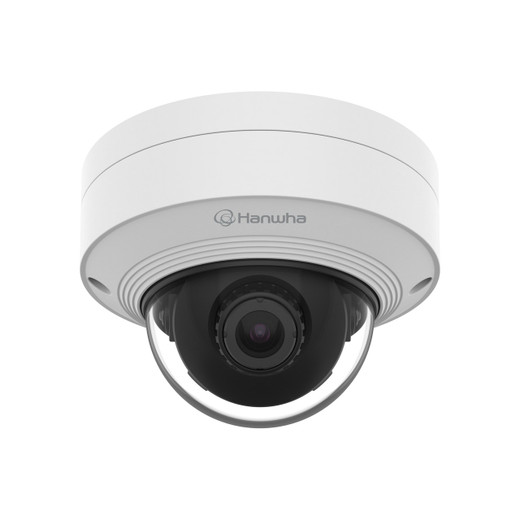

Hanwha SLA-T2480WDA 2MP Outdoor Dome Lens
The Hanwha SLA-T2480WDA is a premium outdoor dome lens assembly engineered for professional surveillance installations requiring wide-angle coverage in demanding environmental conditions. This 2MP lens unit delivers exceptional image clarity and operational reliability, making it an ideal choice for security integrators deploying Hanwha panoramic camera systems across diverse outdoor applications.
Key Features
- 2MP resolution with 1/2.8" CMOS imaging sensor
- 2.4mm fixed focal length providing 138° horizontal field of view
- Ultra-low light performance: 0.045 Lux in both color and B/W modes
- F2.0 maximum aperture for enhanced low-illumination sensitivity
- IP66 and NEMA 4X weatherproof ratings for harsh outdoor environments
- IK10 impact resistance for vandal-prone locations
- Motorized pan/tilt/rotate capability: 350°/70°/355° range
- RJ12 connection to main camera unit with 8m cable included
Technical Specifications
This dome lens assembly features a robust polycarbonate housing in white, measuring 110mm diameter with a compact 77mm depth and 450g weight. The optical design delivers a 165° diagonal field of view, enabling comprehensive area surveillance. Angular field of view breaks down to 138° horizontal and 73° vertical, maximizing situational awareness across wide perimeters.
The imaging sensor achieves exceptional low-light performance, maintaining color video at 0.045 Lux (F2.0, 1/30sec) and monochrome operation at identical light levels—particularly effective when integrated with supplementary IR illumination. Fixed focus control provides consistent sharpness without autofocus hunting or operational complexity.
Operating temperature range spans -30°C to +55°C, with storage capability to -50°C, ensuring functionality across extreme climates. Humidity tolerance reaches 95% RH throughout both operating and storage conditions. Comprehensive EMC certification includes FCC Class A, CE/UKCA, VCCI, RCM, and KS C standards. Safety compliance encompasses UL 62368-1 and CAN/CSA C22.2 NO. 62368-1 ratings.
Installation & Applications
The motorized pan/tilt/rotate mechanism (350° pan, 70° tilt, 355° rotation) enables flexible positioning within dome housings, optimizing coverage angles without requiring physical repositioning. The RJ12 connector simplifies integration with compatible Hanwha panoramic camera bodies.
Ideal applications include parking area surveillance, perimeter monitoring, building exterior coverage, transportation facilities, and open campus environments where wide-angle views and weather resistance are critical requirements.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SLA-T2480WDA represents a purpose-built lens component for Hanwha's modular panoramic camera platform. Its ultra-wide 138° horizontal viewing angle minimizes blind spots and reduces the number of camera units required for comprehensive coverage—a key cost optimization factor in large-area deployments. The combination of F2.0 aperture and 0.045 Lux performance positions this lens for effective 24/7 surveillance without heavy reliance on external lighting infrastructure.
IP66/NEMA 4X ratings and IK10 impact resistance demonstrate engineering focused on genuine harsh-environment durability rather than consumer-grade outdoor claims. The motorized pan/tilt/rotate capability provides dynamic coverage adjustment, valuable in evolving security scenarios. Integrators should confirm compatibility with their specific Hanwha panoramic camera body model before procurement.
