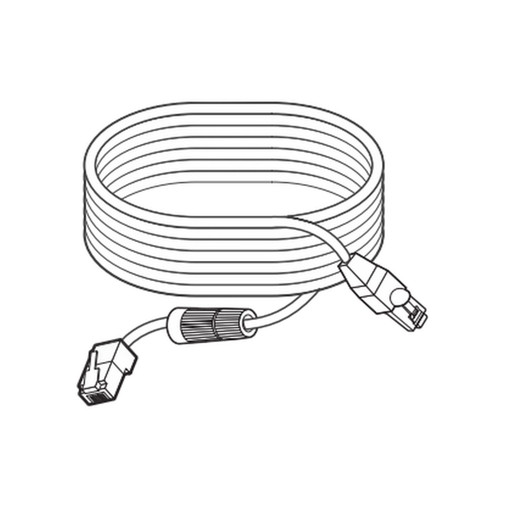

Hanwha SCL-30 3M Extension Cable Remote Head Lens
The SCL-30 is a 3-meter extension cable engineered to separate a remote head lens assembly from its main camera body. If your mounting constraints force the lens and camera to different locations, this cable bridges that gap without introducing signal degradation or image quality loss. It's a straightforward infrastructure solution for deployments where optical placement and camera installation points cannot coincide.
Key Features
- 3-meter (9.8 feet) extension length: Provides substantial reach for scenarios where the lens must be positioned away from the camera body—critical in tight ceiling plenums, constrained wall cavities, or multi-floor installations where the sensor and optics need independent mounting points.
- Compatible with PNM-9000QB and XNB-6002: Works directly with these Hanwha network camera platforms, eliminating adapter complexity and ensuring connector integrity across the extended run.
- High-quality signal transmission over distance: Engineered to maintain video fidelity across the full 3-meter span; signal degradation is not a practical concern at this length for remote head lens configurations.
- Durable construction: Built to withstand daily operational handling in both controlled indoor facilities and secure outdoor environments where weather and mechanical stress are present.
- Plug-and-play connectivity: No firmware updates, software configuration, or additional hardware required—connect and image delivery begins immediately.
- Consistent image delivery: Cable shielding and impedance control ensure that video quality remains stable across the extended run, so you don't trade installation flexibility for picture quality.
Integration & Compatibility
The SCL-30 integrates directly with Hanwha remote head lens systems paired to network cameras in the Hanwha IP camera lineup. It is purpose-built for applications where lens separation from the camera body is a hard requirement—not a workaround. If your deployment involves standard fixed-lens or integrated varifocal cameras without remote head assemblies, this cable is not applicable.
Deployment Context
Common scenarios include retail environments with dropped ceilings where the lens must protrude below structural limits while the camera body mounts in the plenum, corporate facilities with cable tray routing that necessitates camera-to-lens separation, and large-scale surveillance grids in warehouses or industrial spaces where independent optics placement simplifies wire management and reduces installation labor. The 3-meter length accommodates most standard-height ceiling-to-wall installations without requiring multiple cable runs or intermediate connectors.
When to Choose a Different Model
If your application requires a longer extension distance, consult Hanwha cables and connectors for alternative cable lengths or configurations. If you are using non-Hanwha remote head lens systems or cameras outside the PNM-9000QB and XNB-6002 platforms, verify connector compatibility with the manufacturer before purchasing—connector types vary across vendors.
Frequently Asked Questions
Q: Can I daisy-chain two SCL-30 cables to extend the distance further?
A: Not recommended. Extending beyond the cable's engineered length introduces cumulative signal loss and timing degradation that can degrade video quality or cause intermittent connectivity. If you require a distance greater than 3 meters, contact the equipment supplier for a purpose-built longer cable rated for that span.
Q: Is the SCL-30 compatible with non-Hanwha camera systems?
A: No. The SCL-30 is designed specifically for Hanwha remote head lens assemblies and the PNM-9000QB and XNB-6002 camera platforms. Connector types differ across manufacturers, so attempting to use this cable with third-party systems will result in mechanical or electrical mismatch.
Q: Does the cable require any special power or configuration?
A: No. The SCL-30 is a passive extension cable. Power and control signals for the remote head lens travel through the main camera connection—the cable itself requires no power supply, configuration, or software setup.
Q: Can I use the SCL-30 outdoors?
A: Yes. The cable is designed for durable operation in indoor and secure outdoor environments. For long-term outdoor exposure in high-moisture or UV-intensive settings, verify that cable sheathing and connectors are periodically inspected for degradation. Consider protective conduit or cable management to extend service life.
Q: What happens if the cable is bent sharply or pinched?
A: Avoid sharp bends or sustained pinching, as this can damage internal conductors or shield integrity and result in signal loss or intermittent video dropout. Route the cable with gentle curves and support it with proper cable management clips to distribute stress evenly.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SCL-30 solves a real installation constraint that many engineers encounter: when optical placement and camera body position must be independent. In warehouse automation, multi-floor corporate facilities, and retail environments with constrained ceilings, forcing the lens and camera into the same location often means sacrificing either coverage or aesthetics. The 3-meter length on the SCL-30 gives you enough slack to position the lens where it sees what matters without threading the entire camera body through tight spaces or drop ceilings.
Technical Highlights:
- 3-meter engineered run: Signal integrity is maintained across the full extension—you're not losing fidelity because you've separated the lens from the body. This is a passive cable designed specifically for this use case, not a workaround.
- PNM-9000QB and XNB-6002 native compatibility: No adapters, no guessing on connectors. Drop in the cable and it works. Connector mismatch is one of the most common field failures in extended installations, so matched hardware matters.
- Durable sheathing for indoor and outdoor service: The cable is built to handle daily flex cycles and environmental stress—both common in installations where cable routing is active or exposed to sunlight and temperature swings.
Deployment Considerations:
- Do not daisy-chain cables. Each meter of additional length introduces signal degradation. If 3 meters is insufficient, source a longer single cable or reconsider the mounting geometry—series connections are a false economy that will show up as video dropout or quality loss under load.
- Route with support. The cable weighs very little, but it carries no power—it's purely signal. Secure it with standard cable management clips and avoid pinch points, especially near connector bodies where internal damage will manifest as intermittent faults.
This cable is purpose-built for remote head lens separations in Hanwha deployments. It's not a general-purpose extension cord. If your installation genuinely requires lens-to-body separation and you're running Hanwha PNM-9000QB or XNB-6002 platforms, the SCL-30 is the direct, low-risk path to getting the optics where they need to be without signal compromise.
