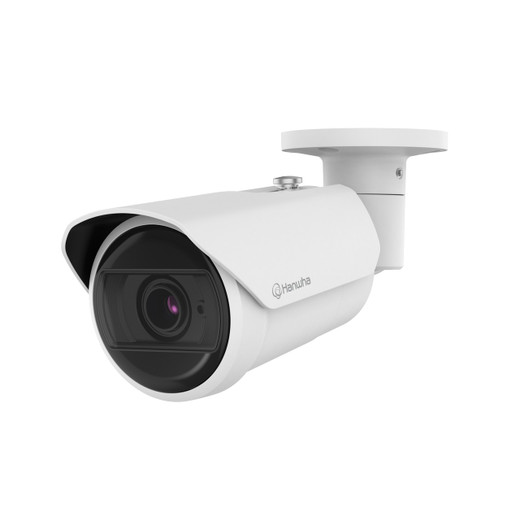

Hanwha QNO-C9083R 8MP WDR AI Outdoor Bullet Camera

Hanwha QNO-C9083R 8MP WDR AI Outdoor Bullet Camera

The Hanwha QNO-C9083R is a purpose-built outdoor surveillance bullet engineered for perimeter security, parking lot monitoring, and facility access control. This IP camera delivers 8MP native resolution (3840×2160) on a 1/2.8" CMOS sensor, paired with a motorized 3.2x varifocal lens (3.2–10.2mm) that shifts from 104° wide-angle to 31° telephoto framing without manual adjustment. The combination handles the real deployment problem: covering large areas while preserving face/plate detail in the same scene.

Key Features

• 8MP Resolution (3840×2160): Captures enough detail to identify individuals and read vehicle plates across a typical 50–100 ft perimeter, while supporting multiple simultaneous output formats (full res, down-scaled streams) to balance storage cost against image quality on each recorder.
• 120dB Wide Dynamic Range (WDR): Eliminates the common backlit surveillance failure—bright sky behind a subject, dark subject in shadow—by capturing and blending detail across extreme contrast ratios. Critical for sun-facing perimeter shots and entrance vestibules.
• Motorized 3.2x Varifocal Lens with DC Auto-Iris: Zoom and focus controlled via network, no field servo adjustment needed post-install. IR correction built in, so IR illumination stays sharp at all focal lengths.
• 30m IR Range (850nm Long-Life LEDs): Passive 0 Lux operation in full IR mode; color video down to 0.06 Lux (F1.6, 1/30 sec) covers dusk/dawn and artificial lighting scenarios. IR range covers roughly a 4-lane parking lot or building facade without supplemental lighting.
• Advanced AI Analytics on Edge: Object detection (person/vehicle), type classification (car/bus/truck/motorcycle/bicycle), directional line-crossing, area monitoring, people counting, vehicle counting, queue management, and heatmapping—all processed locally. Reduces false alerts by filtering environmental noise before transmission to the recorder.
• H.265, H.264, MJPEG Compression: H.265 cuts bitrate roughly 40–50% versus H.264 for identical image quality, directly reducing storage and bandwidth overhead on 24/7 multi-camera deployments. WiseStream III intelligent compression further optimizes the bitrate by prioritizing regions of interest while maintaining background detail.
• IP66 / IK10 Rating: Dust-sealed (no maintenance of optical surfaces in dusty yards) and vandal-resistant to impact—rated for -30°C to +55°C outdoor operation. Skip this model only if you require full submersion (IP67+) or explosive-hazard ATEX certification.
• PoE (IEEE 802.3af, 12W Max / 5.3W Typical): Standard gigabit PoE injection powers the camera and motorized lens without a separate 24V auxiliary supply. Power envelope is tight enough to deploy dozens on a single switch without oversubscription.
• ONVIF Profile S/G/T/M Compliance: Plugs into any standards-based NVR (Milestone XProtect, Genetec, Pelco, etc.) without proprietary bridges. IPv4/IPv6, HTTPS, SRTP, and 802.1X (EAP-TLS/LEAP/PEAP) for secure, multi-tenant network integration.
• Edge Storage (microSD up to 256GB): Local backup recording via encrypted partition—survives recorder downtime or network loss for a window of autonomous operation, useful in remote outdoor sites.

Integration & Compatibility

The QNO-C9083R integrates with any NVR or VMS supporting ONVIF Profile S or higher. Proper camera selection includes confirming your recorder's maximum concurrent connections and bitrate budget; the varifocal lens and AI processing demand adequate processing headroom on the edge device. Deploy via standard RJ-45 PoE injector or PoE-enabled switch port; confirm your switch has sufficient power budget (12W per camera at maximum demand).

Mounting is standard IP camera bracket (sold separately); the bullet form factor suits wall, soffit, or pole installation. Plan lens orientation during installation—focus and iris are controlled remotely, but physical aiming is fixed once mounted.

When to Choose a Different Model

If your deployment requires turret form factor (quick-aim flexibility without reinstallation), higher megapixel density (beyond 8MP), or extreme wide-angle framing (wider than 104°), consider other variants in the Hanwha camera lineup. For indoor-only applications, an indoor dome or turret will reduce cost and simplify aesthetics.

Frequently Asked Questions

Q: What's the maximum IR range, and will it work in complete darkness?

A: The QNO-C9083R delivers 30m effective IR range. Yes, it operates at 0 Lux with IR illumination on, rendering full monochrome video in total darkness. However, the 30m distance assumes clear line of sight; foliage, dust, or reflective surfaces reduce effective range.

Q: Is the varifocal lens manual or motorized, and do I need to adjust it after installation?

A: The lens is fully motorized (3.2x zoom, DC auto-iris, IR correction). You control zoom, focus, and iris via the network interface or VMS. No field servo adjustment required once mounted and powered on.

Q: Does the QNO-C9083R work with my existing Milestone or Genetec recorder?

A: Yes. The camera is ONVIF Profile S, G, T, and M compliant and supports SUNAPI HTTP API, so it integrates with any standards-based NVR or VMS including Milestone XProtect, Genetec Security Center, Pelco systems, and others. Confirm your recorder supports ONVIF clients on your version.

Q: What compression formats are supported, and which should I choose?

A: The camera supports H.265, H.264 (Main and High profiles), and MJPEG. H.265 is recommended for 24/7 recording; it cuts bitrate 40–50% versus H.264, reducing storage and bandwidth. Use H.264 only if your recorder lacks H.265 decoding; MJPEG is rarely needed in modern deployments.

Q: How much power does the QNO-C9083R draw, and will it work on standard PoE?

A: Maximum 12W, typical 5.3W. Standard IEEE 802.3af PoE (15.4W per port) is sufficient. No PoE+ required, reducing switch strain on large deployments.

Q: Can the camera store video locally if the recorder fails?

A: Yes, via microSD card (up to 256GB). The camera supports encrypted local recording, providing autonomous backup during network or recorder outages.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QNO-C9083R excels where edge processing and optical performance intersect. The combination of 120dB WDR, F1.6 aperture, and motorized lens control solves a real perimeter surveillance problem: backlit scenarios where competitors fail. Pair that with locally processed AI (person/vehicle detection, line-crossing, counting) and you eliminate the recorder overhead of handling hundreds of false-positive motion alerts. In a 50-camera parking lot deployment, that edge intelligence directly reduces storage bitrate and network load.

Technical Highlights:

• 120dB WDR + 0.06 Lux Color Sensitivity: Most outdoor bullets sacrifice low-light color for WDR processing; this sensor and pipeline retain both. Result: usable color detail during dusk and under artificial lighting, even under extreme backlight.
• H.265 Codec with WiseStream III: 40–50% bitrate reduction versus H.264 means a 10-camera system fits comfortably on gigabit storage that would require 10x overhead with MJPEG. Real deployment math: 10 cameras at 8MP, 24/7 H.265 CBR ≈ 2–3 TB/month vs. 5–6 TB on H.264.
• 3.2x Motorized Lens + IR Correction: The lens shift and iris are network-controllable; IR correction tracks focal length automatically. No field technician return visit to re-focus IR at wide angle.
• Encrypted microSD Local Recording: Reduces vulnerability to recorder theft or network isolation; the camera continues autonomous backup to a 256GB card rated for continuous use.

Deployment Considerations:

• Confirm your PoE switch supports at least 12W per port; if you're running 16+ cameras on a 48-port switch, verify power budget. Standard 802.3af is adequate, but non-compliant or aging switches may throttle current.
• The varifocal lens requires network access to adjust zoom and focus post-install. If your VMS or camera management system doesn't expose lens controls, installation becomes a one-shot aiming exercise—plan carefully.
• H.265 decoding: confirm your recorder and any downstream analytics system support H.265 before committing bitrate savings. Legacy Milestone versions and some integrations still require H.264 fallback.

Position the QNO-C9083R for perimeter and lot surveillance where you need detail across variable lighting, motorized lens flexibility to cover multiple zones, and edge AI to reduce false alerts. It's not a low-cost baseline camera—it's a cost-per-useful-pixel play when storage and bandwidth scale.
