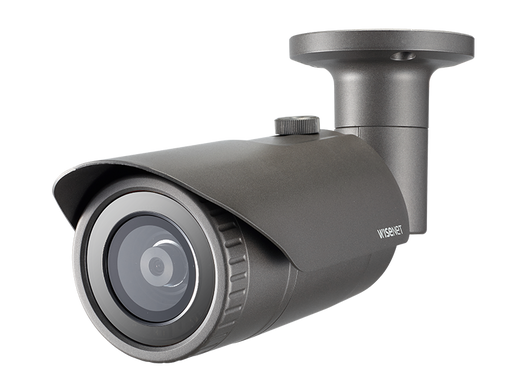

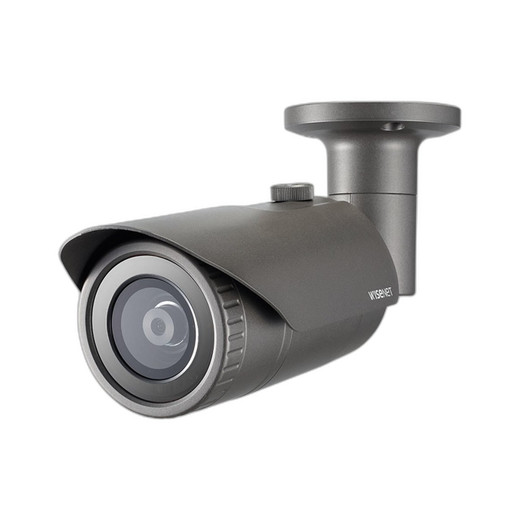

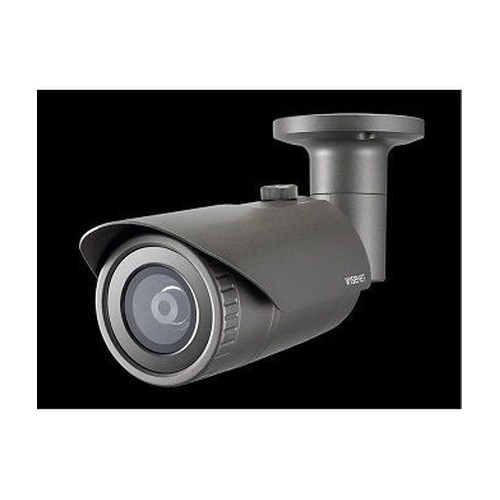

Hanwha QNO-7032R 4MP Outdoor IR Bullet Camera

Hanwha QNO-7032R 4MP Outdoor IR Bullet Camera

The QNO-7032R is a fixed-focal 4MP bullet camera built for outdoor surveillance where 24/7 visibility and impact resistance matter. It pairs a 1/3" CMOS sensor with a 6mm fixed lens (49° horizontal FOV) to deliver usable detail at typical perimeter distances—recognize faces at roughly 22.5 meters, identify objects at 11 meters. Unlike lower-resolution competitors, 4MP at 30 fps lets you capture more pixels per frame without sacrificing frame rate, critical when motion detection or event playback demands smooth video. The QNO-7032R is part of the Hanwha IP camera line and fits well into mixed-vendor deployments via ONVIF Profile S/G/T compliance.

Key Features

• 4MP at 30 fps with H.265/H.264 and MJPEG codecs: H.265 cuts storage demand roughly in half versus H.264 on identical quality—material savings on microSD local storage or bandwidth-constrained networks. WiseStream II adaptive bitrate further trims data footprint by adjusting compression on-the-fly as scene complexity changes.
• 30-meter IR range with auto Day/Night (ICR): Full infrared illumination reaches 30 meters, enabling identification in complete darkness. Auto-switching between color (day) and monochrome (night) preserves image quality across light transitions without manual intervention or scheduling.
• 120dB Wide Dynamic Range (WDR) with backlight compensation: Simultaneous Subdued and Saturated Detail Recovery (SSDR) and Backlight Compensation (BLC) handle mixed lighting—bright exits alongside dark interiors, glare from vehicle headlights—without clipping details. Indispensable for loading docks, parking entrances, or building facades.
• IP66 weatherproofing and IK10 impact resistance: IP66 means direct rain and pressurized jets won't infiltrate the housing; dust ingress is minimal. IK10 rating withstands 20 joule impacts without optical shift—above typical IK08 competitors, justifying ruggedized mounting in high-traffic or vandalism-prone sites.
• 6mm fixed f/2.0 lens with 49° horizontal FOV: Fixed focal length eliminates focus drift and motor failure modes inherent in varifocal designs. The f/2.0 aperture and 6mm focal length balance light intake and field-of-view for mid-range perimeter coverage without wide-angle distortion.
• Built-in analytics: motion detection, line crossing, tampering, defocus: On-camera detection eliminates server-side processing overhead. Define up to 4 polygonal motion zones to isolate real events (vehicle crossings) from false triggers (shadows, weather). Virtual line detection fires events when objects breach user-drawn thresholds; tampering alerts trigger on lens obstruction or unexpected camera movement.
• Dual power: PoE (IEEE 802.3af) and 12VDC: Typical consumption is 8W on PoE, well within Class 3 budget, so standard PoE injectors or midspan devices work without uprating. Fallback 12VDC option accommodates legacy coax-based installations or sites where PoE infrastructure is unavailable.
• 128GB microSD slot for edge recording: Local storage on the camera itself enables event-triggered or continuous backup without network latency. If the NVR connection drops, the camera keeps recording; sync resumes when connectivity returns.
• 512MB RAM and 256MB flash supporting 6 concurrent unicast streams across 3 profiles: Multi-profile streaming lets you feed different resolutions and frame rates to different clients—4MP 30 fps to the NVR, 720p 15 fps to mobile—without duplicating encoding on the camera or saturating bandwidth.
• HTTPS, 802.1X, and IP filtering for enterprise security: Encrypted credential exchange and network-level access controls prevent credential interception and unauthorized access, meeting compliance standards for secure surveillance infrastructure.
• Privacy masking with up to 6 rectangular zones: Mask sensitive areas (windows, license plates, doorways) without losing the entire frame, supporting GDPR and workplace privacy requirements.

Integration & Compatibility

ONVIF Profile S/G/T compliance ensures integration with NVRs and video management systems from any vendor. SUNAPI support adds Hanwha-ecosystem features. Selectable mic or line-level audio input enables two-way communication or event-triggered recording (alarm input/output ports allow external relay triggers). Operating temperature range of -40°C to +55°C ensures reliability in hot climates (sun-baked rooftops, uninsulated warehouses) and cold industrial environments.

Sizing and Application

The 70mm aluminum bullet body is compact and discreet, fitting tight mounting corridors. For detailed perimeter and parking surveillance, refer to IP camera lens and coverage guides to confirm 6mm focal length suits your site geometry. Typical deployments include building entrances, perimeter fencing, parking facilities, utility substations, and loading docks where 24/7 identification-grade detail and impact resilience justify the 4MP investment.

Frequently Asked Questions

Q: Does the QNO-7032R support ONVIF?

A: Yes. The QNO-7032R is ONVIF Profile S/G/T compliant, enabling integration with any ONVIF-compatible NVR or video management platform.

Q: What's the maximum microSD capacity?

A: The camera supports microSD cards up to 128GB for on-camera edge storage and event-triggered recording.

Q: Can I power the QNO-7032R via legacy 12VDC instead of PoE?

A: Yes. The camera accepts both PoE (IEEE 802.3af, Class 3) and 12VDC input, accommodating new and retrofit installations.

Q: What is the IR illumination range?

A: The built-in infrared illumination reaches 30 meters in complete darkness, enabling 24/7 surveillance without external lighting.

Q: Is the QNO-7032R suitable for freezing climates?

A: Yes. Operating temperature extends to -40°C, supporting arctic and high-altitude outdoor installations without performance degradation.

Q: How many motion detection zones can I configure?

A: The camera supports up to 4 user-defined polygonal motion zones, reducing false alarms from irrelevant motion (shadows, weather).

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QNO-7032R balances specification breadth with practical outdoor deployment reality. Its 4MP sensor at 30 fps, paired with H.265 codec integration, delivers measurable storage and bandwidth savings—particularly useful on sites leaning on microSD edge backup or operating over constrained network links. The IK10 impact rating stands noticeably above many mid-range competitors (typically IK08), justifying the choice for high-traffic perimeter zones or sites with documented vandalism history.

Technical Highlights:

• H.265 compression: Reduces bitrate 40–60% versus H.264 on equivalent quality. At 8W typical PoE consumption and microSD local storage, the codec efficiency directly lowers infrastructure cost—fewer switching PoE ports, smaller NVR storage pools, or longer microSD retention windows.
• 120dB WDR with SSDR and BLC: Handles scenes most 2MP cameras struggle with—backlit parking gates, dock doors with mixed sun/shadow. Real-world HDR without the processing overhead of frame stacking.
• Dual power (PoE + 12VDC): Rare among purpose-built outdoor bullets. Unlocks retrofit scenarios where coax runs exist but PoE infrastructure is incomplete, reducing project scope and cost on legacy site upgrades.

Deployment Considerations:

• Fixed 6mm lens: Non-adjustable focal length means site geometry must match the 49° FOV beforehand—measure twice on your site plan. No varifocal zoom flexibility, but eliminates focus drift and motorized mechanism failure modes.
• PoE power budget: At 8W typical, the camera is PoE-efficient and won't burden budget-constrained switches. However, if you're running dozens of these on a single 60W midspan, verify your switch's actual PoE headroom during planning.

Best suited for perimeter security, parking facilities, building facades, and industrial loading areas where 4MP detail, impact resistance (IK10), and 30-meter night vision justify the cost versus lower-megapixel outdoor competitors. Skip this model if your site demands motorized lens adjustment or full-frame fisheye—consider a varifocal variant in the same family for those cases.
