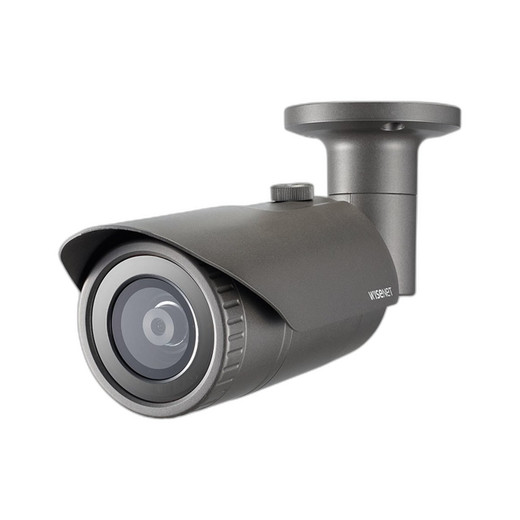

Hanwha QNO-7012R 4MP Outdoor IR Bullet Camera

Hanwha QNO-7012R 4MP Outdoor IR Bullet Camera

The Hanwha QNO-7012R is a 4MP outdoor IR bullet camera built for perimeter monitoring, facility entrances, and loading dock surveillance where durability and consistent day/night performance matter. With a 1/3" CMOS sensor, 2.8mm fixed lens delivering a 107.5° horizontal field of view, and native 4MP (2560 x 1440) capture at 30fps, this camera handles mid-range distance coverage effectively—think parking lot monitoring and building facade surveillance rather than long-distance identification work. The fixed lens design reduces maintenance complexity compared to motorized alternatives, which is a real operational advantage on large deployments.

Key Features

• 4MP native resolution (2560 x 1440) at 30fps: Delivers sufficient pixel density for recognition-level detail at 7–10 meter distances; 125 pixels per meter at 7.5m means you can identify license plates and facial features at standard working range without overloading storage.
• 120dB Wide Dynamic Range (WDR): Handles high-contrast outdoor scenes—direct sunlight and shadow simultaneously—without losing detail in either. Critical for parking lots and building facades where sun angle changes throughout the day.
• IR illumination with 20-meter night vision: 850nm IR extends usable range to roughly 65 feet in complete darkness. Auto Day/Night (ICR) mode switches seamlessly between color and monochrome as light drops, preventing washed-out footage during dusk transitions.
• IP66 weatherproof and IK10 vandal-resistant housing: Direct rain, dust, and moisture won't compromise the sealed optical path or electronics. IK10 rating means the camera survives impacts up to 20 joules—adequate for outdoor environments where bumps from maintenance or weather events happen. Operating range -40°C to +55°C covers most North American climates without thermal degradation.
• H.265 (HEVC) compression with WiseStream II codec optimization: Cuts bitrate roughly 40–50% versus H.264 depending on scene complexity and motion. On 24/7 recording across a 16-camera installation, that translates to halving your storage or extending retention from 30 to 60 days on the same NVR. Backward-compatible H.264 and MJPEG options ensure integration with older systems.
• PoE (802.3af) or 12V DC power: Typical draw is 8W via PoE or 6.8W via DC. Standard 802.3af PoE (max 15.4W per port) means no midspan injectors needed on modern switches; each camera draws well under the per-port budget even when powering multiple units on the same switch.

Imaging & Analysis Capabilities

Beyond WDR, the QNO-7012R includes Spatial Super Dynamic Range (SSDR) and digital noise reduction (SSNR) to preserve shadow and highlight detail even in extreme contrast. Minimum illumination of 0.15 Lux in color mode and 0 Lux with IR enabled ensures usable video from pre-dawn parking lot patrols through complete darkness. Electronic shutter speeds ranging from 1/5 to 1/12,000 seconds adapt to fast motion (vehicle traffic) and slow motion (perimeter walks) without manual intervention.

On-camera analytics include motion detection with four configurable polygonal zones, directional motion detection, line-crossing events, enter/exit counting, defocus detection, and tampering alerts. These enable edge-based event triggering—the camera flags relevant footage before sending it to storage, reducing false positives and storage overhead. Email, FTP, and local NAS delivery of alerts keep your security team informed without constant dashboard monitoring.

Integration & Network Security

ONVIF Profile S, G, and T support ensures compatibility with Milestone XProtect, Genetec, and other major VMS platforms. Hanwha's proprietary SUNAPI HTTP API provides tighter integration for Hanwha-centric deployments. The camera supports up to 3 independent video streams and 6 concurrent users via unicast/multicast, handles IPv4 and IPv6, and includes HTTPS/SSL encryption, 802.1X network authentication, and SNMPv3 for secure monitoring infrastructure. Digest and HTTPS login prevent unauthorized access, and per-user access logging supports compliance audits.

Onboard storage via microSD/SDHC/SDXC cards (up to 128GB) enables continuous local recording as failsafe backup—if your NVR loses connectivity, the camera keeps recording locally, and you recover footage once the link restores. 512MB RAM and 256MB flash provide stable operation without performance drift over weeks of continuous operation.

Physical Design & Installation

The compact bullet form factor (Ø70mm × 246mm, 700g) fits standard single, double, and 4-inch octagon conduit boxes. No special mounting brackets required—use existing J-box infrastructure on facade or perimeter installations. Low weight and power consumption minimize structural load and electrical demand, making retrofit deployments faster and cheaper than high-powered alternatives.

When to Consider a Different Model

If you need motorized zoom for variable distance coverage or AI-powered deep learning analytics (person/vehicle classification, crowd counting), look to higher-tier Hanwha IP camera variants in the same family. The QNO-7012R's fixed 2.8mm lens and traditional motion detection suit fixed-coverage deployments; dynamic scene monitoring requires different architecture. Similarly, if your climate routinely exceeds +55°C or you're mounting in direct saltwater spray, confirm thermal and corrosion specifications with the manufacturer before committing.

Frequently Asked Questions

Q: What is the maximum IR range on the QNO-7012R?

A: The camera delivers usable monochrome footage out to approximately 20 meters (65 feet) in complete darkness with IR enabled. Beyond that distance, IR illumination falls off significantly and image brightness drops—practical range depends on target reflectivity and acceptable lux threshold for your use case.

Q: Does the QNO-7012R support ONVIF?

A: Yes. The camera supports ONVIF Profile S, G, and T, ensuring integration with Milestone XProtect, Genetec, and other standards-based VMS platforms. It also supports Hanwha's proprietary SUNAPI HTTP API for deeper Hanwha ecosystem integration.

Q: Can I record continuously to a microSD card as local backup?

A: Yes. The camera includes a microSD/SDHC/SDXC card slot supporting cards up to 128GB. You can configure continuous recording to local storage independent of your NVR connection, providing failsafe backup if your network link drops.

Q: How much bandwidth does the QNO-7012R consume with H.265 compression?

A: Bitrate depends on scene complexity and motion; typical VBR (variable bitrate) mode produces 2–4 Mbps at 4MP 30fps with moderate motion. H.265 cuts that roughly in half versus H.264 on the same scene. Manual codec optimization across five user-defined regions lets you fine-tune compression per area—e.g., high quality on the entry door, lower quality on distant parking lot sky.

Q: What is the power consumption and does it work with standard PoE switches?

A: Typical power draw is 8W via PoE (802.3af) or 6.8W via 12V DC. Standard 802.3af switches supply up to 15.4W per port, so the QNO-7012R consumes less than half the per-port budget and allows multiple cameras on one switch without midspan injectors or upgrading to PoE+.

Q: Is the QNO-7012R resistant to physical impact and weather?

A: Yes. It carries an IP66 rating (protection against dust and water jets) and IK10 vandal rating (withstands impacts up to 20 joules). Operating temperature range is -40°C to +55°C, suitable for outdoor North American installations. For tropical or extreme-temperature climates, confirm limits with the manufacturer.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Hanwha QNO-7012R represents solid mid-range outdoor surveillance performance at a practical price point. The fixed 2.8mm lens and 107.5° FOV position this camera squarely in the perimeter-and-entrance category—not a long-distance identification tool, but excellent for parking lots, building facades, and loading dock coverage where 7–15 meter working distances are the norm. At 125 pixels per meter at 7.5 meters (Recognize standard), the QNO-7012R handles license plate capture and facial recognition effectively at close range without the pixel overkill and storage bloat of higher megapixel sensors.

Technical Highlights:

• 120dB WDR + SSDR combo: This pairing is where the QNO-7012R earns its keep. Outdoor scenes with direct sun, shadows, and reflective surfaces will generate consistent, balanced imagery without the blown-out sky or crushed shadows that plague cheaper outdoor bullets. Real deployment advantage: fewer false-positive motion alerts triggered by glare artifacts.
• H.265 + WiseStream II: On a typical 16-camera perimeter installation recording 24/7 at 4MP 30fps, switching from H.264 to H.265 saves roughly 8–12 TB per month of storage. That translates to either fewer disk spindles or extended retention windows—a financial lever that compounds across large deployments.
• Failsafe microSD local recording: Edge storage up to 128GB handles 2–3 days of continuous 4MP H.265 footage (bitrate dependent). If your NVR link drops, the camera keeps recording locally; you recover footage upon reconnection. This resilience matters in branch office or outdoor-mounted scenarios where network stability isn't guaranteed.

Deployment Considerations:

• Fixed lens = no zoom flexibility: The 2.8mm lens is wide by design. If your coverage zones have variable distances or you need to pan across a scene, you'll need motorized zoom alternatives or multiple fixed cameras. Plan your layout carefully during site survey—repositioning cameras after installation is costly.
• 20m IR range has practical limits: At maximum IR distance, expect lower illumination and contrast. Reflectivity matters—light-colored surfaces (concrete, gravel) extend effective range; dark surfaces (asphalt, vegetation) reduce it. Test IR performance during site commissioning if night vision is mission-critical.

The QNO-7012R is the right fit for budgeted, fixed-coverage outdoor deployments where H.265 bandwidth savings and reliable all-weather imaging outweigh the need for zoom flexibility. Parking management, building perimeter monitoring, and facility entrance logging—these are sweet-spot use cases. Avoid it if you need intelligent analytics (person/vehicle AI classification) or variable focal length; those require stepping up to higher-tier models.
