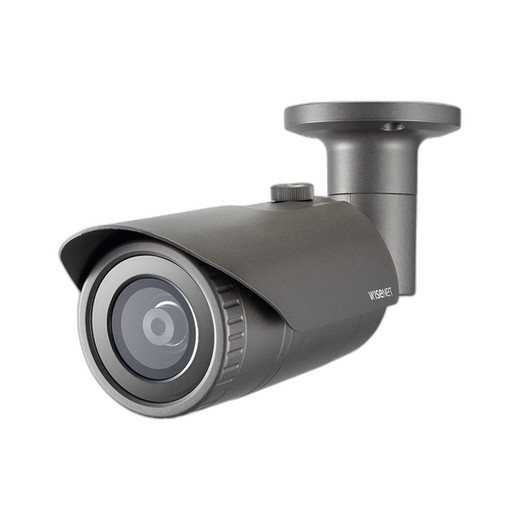

Hanwha QNO-7022R 4MP Outdoor IR Bullet Camera

Hanwha QNO-7022R 4MP Outdoor IR Bullet Network IP Camera

The Hanwha QNO-7022R is a professional-grade 4MP outdoor bullet camera engineered for reliable surveillance in demanding environments. Built on a 1/3" CMOS sensor with a fixed 3.6mm lens and F1.6 aperture, this camera delivers sharp, detailed imagery across a 78.2° horizontal field of view. With support for H.265, H.264, and MJPEG compression at up to 30fps, the QNO-7022R balances image quality with efficient bandwidth utilization through Hanwha's WiseStream II smart codec technology.

Key Features

• 4MP resolution (2560 x 1440) with multiple output formats for flexible deployment
• Infrared night vision with 25-meter illumination range and 0 Lux B/W capability
• 120dB Wide Dynamic Range (WDR) with BLC, SSDR, and digital noise reduction for challenging lighting
• Auto day/night switching with infrared cut filter (ICR) for seamless transitions
• IP66 weatherproof and IK10 vandal-resistant construction rated for extreme conditions
• Dual power input: PoE (IEEE 802.3af) or 12VDC for installation flexibility
• MicroSD/SDHC/SDXC edge storage slot supporting up to 128GB for local recording
• Hallway view and Lens Distortion Correction (LDC) for optimized positioning

Advanced Analytics & Security

The QNO-7022R integrates intelligent video analytics including defocus detection, directional and motion detection across 4 polygonal zones, virtual line crossing, enter/exit events, and tampering alerts. These features enable proactive threat identification and reduce false alarms. The camera supports 6 rectangular privacy masking zones to protect sensitive areas, and includes 1 alarm input and 1 alarm output for integration with external security systems. Alarm events trigger FTP/email uploads, local NAS recording, and email notifications.

Network & Connectivity

Full ONVIF Profile S/G/T compliance ensures broad software ecosystem compatibility, with HTTP API support via SUNAPI. The camera streams via unicast (6 simultaneous users) or multicast with up to 3 encoding profiles. Security features include HTTPS/SSL encryption, digest authentication, IP address filtering, 802.1X authentication, and user access logging. Audio support includes selectable mic or line-in inputs with G.711/G.726 compression.

Performance Specifications

Minimum illumination reaches 0.15 Lux in color mode (F1.6, 1/30 sec) and 0 Lux in B/W with IR enabled. Electronic shutter speeds from 1/5 to 1/12,000 sec provide precise exposure control with anti-flicker capability. The camera operates across -40°C to +55°C with less than 95% humidity, and consumes only 8W typical (PoE) or 6.8W (12VDC), making it energy-efficient for large deployments.

Applications

Ideal for parking lot monitoring, building perimeter surveillance, gate access points, and outdoor facility monitoring where weather resistance and 24/7 clarity are critical. The combination of IR capability, WDR processing, and compact aluminum construction makes this camera suitable for both fixed and semi-recessed mounting on walls, corners, and conduit systems.

James Everett

The QNO-7022R represents Hanwha's mid-range outdoor IP camera platform, balancing 4MP resolution with practical power consumption and codec efficiency. The 120dB WDR specification is particularly strong for scenes mixing deep shadows and bright sky exposure, while the 25-meter IR range covers most standard perimeter monitoring distances. WiseStream II compression is a significant advantage for storage-constrained deployments, as it intelligently reduces bitrate in low-motion areas without visible degradation.

The fixed 3.6mm lens and F1.6 aperture are conservative but appropriate for outdoor daytime use; note that ultra-low-light performance requires IR activation. ONVIF compliance and SUNAPI support provide vendor independence, a key consideration for enterprise integrators. Edge storage via microSD is suitable for failover recording but not primary archival.

Operating temperature support down to -40°C positions this camera for northern climates and refrigerated facility perimeters. Overall, this is a reliable, standards-compliant choice for mid-scale outdoor surveillance requiring proven durability and mature software support.
