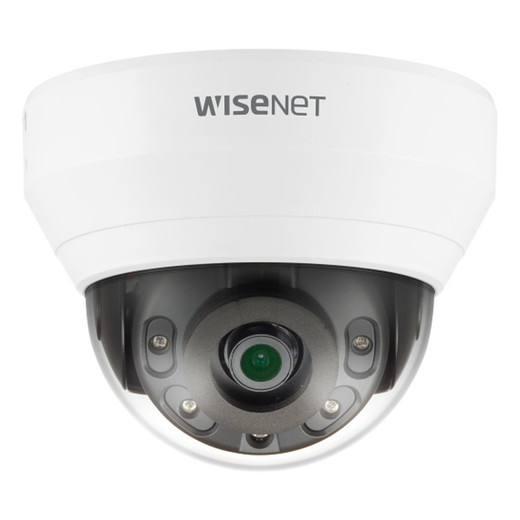

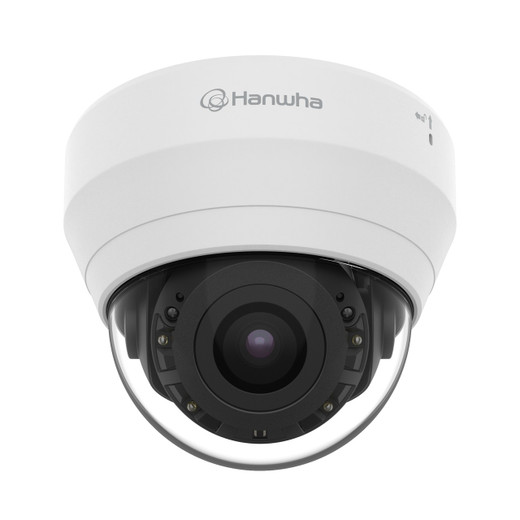

Hanwha QND-6082R1 2MP Varifocal IR Dome Camera

Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: QND-6082R1

UPC: 8801089208927

Condition: New

Availability: Usually Ships Same Business Day

Warranty 3-year warranty

Write a Review 31% OFF

Hanwha QND-6082R1 2MP Varifocal IR Dome Camera

2MP motorized varifocal dome with IR and 0.03 Lux color night vision

$500.00 $343.99 SAVE $156

Ships same business day

In stock

Current Stock:

Quantity:

Adding to cart… The item has been added

Compatibility guidance available for your deployment

Senior specialists for pre and post-sales support

Authorized sourcing and documentation support

Shipping and lead-time confirmation before install

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Type Dome
Frame Rate 30fps
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920×1080
Max. Framerate 30fps
Thermal Sensitivity (NETD None
Pixel Size None
Min. Illumination 0.03 Lux color / 0 Lux IR
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Video Transmission Distance None
Focal Length (Zoom Ratio 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
Angular Field of View H: 109.0°, V: 57.4°
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus
Lens Type DC auto iris
Mount Type None
Optional Lens None
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Pan Range None
Pan Speed None
Tilt Range None
Tilt Speed None
Rotate Range None
Sequence None
Preset Accuracy None
Camera Title Displayed up to 85 characters
Direction Indicator None
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Digital Image Stabilization None
Defog None
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Digital PTZ None
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Business Intelligence None
Serial Interface None
Alarm Inputs/Outputs Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Audio In None
Audio Out None
IR Viewable Length 20m(65.62ft)
IR Illuminator (Optional None
Water Removal None
Auto Tracking None
Coaxial Protocol None
Color Palettes None
Temperature Detect Range None
Temperature Accuracy None
Temperature Detection None
Additional None
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression None
Smart Codec WiseStreamⅡ
Video Quality Adjustment H.264/H.265 bitrate, MJPEG quality control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Webpage Language English, Korean, Chinese, French, Italian, +more
Web Viewer None
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
RAM 512MB RAM, 256MB Flash
Operating Temperature / Humidity -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification None
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power (Max 7.70W
Color / Material White / Plastic
RAL Code RAL9003
Product Dimensions / Weight Ø119.8x98.8mm(Ø4.72x3.89"), 320g(0.71 lb)
Compatible Conduit hole / Gangbox None
Hanging Mount (Dome None
Skin Cover (Dome None
Weather Cap (Dome None
Power Module None
Backbox None
Detect (25PPM/ 8PPF Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft)
Observe (63PPM/ 19PPF Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft)
Recognize (125PPM/ 38PPF Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft)
Identify (250PPM/ 76PPF Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft)
Product Type Dome
Connectivity Wired
Features WDR
Night Vision IR
Power Type PoE
PoE Class 3
Form Factor Dome
Compatibility ONVIF
IR Distance 0.5m
Built-in IR Yes
Day/Night Yes
Storage Support microSD
HTTPS Encryption Yes
WDR WDR
Weight Lbs 0.71
Housing Color White
Environment Rating Indoor
Warranty 3-year warranty
Poe Power PoE (802.3af)
Ir Lowlight IR
Compression H.265; H.264; MJPEG
Onvif Yes
Audio Audio input
Lens Focal Length Varifocal
Camera Title Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution
Ethernet Rate RJ-45 (10/100BASE-T)
Application Programming Interface SUNAPI (HTTP API)
Memory 512MB RAM, 256MB Flash
Operating Temp / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Power PoE

Support & deployment services are available

Hanwha QND-6082R1 2MP Varifocal IR Dome Camera

$500.00

$343.99

Build a complete system in one click

Manufacturer-verified compatible cameras, recorders, mounts, accessories, and licenses for this product.

Item Qty Status Price

Mounts & Accessories recommended

Recorders, NVRs & Storage recommended

Licenses & Software where applicable

Services & Training optional

Bundle Summary

Bundle Subtotal: $0.00

Mounts & Accessories: $0.00

Recorders & NVRs: $0.00

Licenses: $0.00

Services: $0.00

Total: $0.00

Overview

SKU: QND-6082R1

UPC: 8801089208927

Condition: New

Availability: Usually Ships Same Business Day

Warranty 3-year warranty

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)

Description
Expert Analysis
Specifications
Product Video
Q&A
Reviews

Description

Hanwha QND-6082R1 2MP Varifocal IR Dome Camera

The Hanwha QND-6082R1 is a compact 2MP indoor dome camera engineered for professional surveillance installations requiring flexible focal length adjustment and exceptional low-light performance. Built around a 1/2.8" 2MP CMOS sensor, this camera delivers 1920x1080 resolution with motorized 3.2~10mm varifocal optics, enabling operators to optimize field of view for diverse indoor environments from entry lobbies to office spaces and retail areas.

Key Features

3.1x motorized varifocal zoom lens (3.2~10mm) with DC auto iris
Integrated IR illumination with 20-meter night vision range
Exceptional low-light sensitivity: 0.03 Lux (color) / 0 Lux (B&W IR mode)
120dB Wide Dynamic Range (WDR) with SSDR technology for backlit scenes
Multiple video compression formats: H.265, H.264, MJPEG with WiseStream II smart codec
Advanced video analytics including motion detection, tampering, defocus detection, and virtual line crossing
PoE powered (IEEE 802.3af Class 3) with optional 12VDC supply
Micro SD/SDHC/SDXC card slot (up to 128GB) for local edge storage
6 rectangular privacy masking zones and 4 motion detection zones
Video rotation modes: flip, mirror, and 90°/270° hallway view

Technical Specifications

The camera operates at up to 30fps in H.264/H.265 and 15fps in MJPEG, with electronic shutter speeds ranging from 1/5 to 1/12,000 seconds. Its optical design spans a 109° horizontal field of view in wide mode to 33.2° in telephoto, with minimum object distance of 0.5 meters. Lens Distortion Correction (LDC) and multiple white balance modes (ATW, AWC, manual, indoor, outdoor presets) ensure accurate color reproduction across varying lighting conditions. The camera supports full IP protocol compliance including IPv4/IPv6, RTSP, ONVIF Profile S/G/T, and Wisenet open platform APIs for seamless integration into third-party management systems.

Security & Connectivity

Network security is reinforced through HTTPS/SSL encryption, digest and login authentication, IP address filtering, 802.1X EAP authentication, and comprehensive user access logging. The camera streams simultaneously to up to 6 unicast users or multicast groups with three selectable quality profiles. Alarm I/O connectivity (1 input, 1 output) supports event triggering via analytics, network disconnection, or external sensors, with notification delivery through email and FTP file upload.

Ideal Applications

This camera is suited for indoor surveillance in corporate offices, retail stores, education facilities, and access control monitoring where discreet dome form factors are preferred and flexible zoom capability is essential for framing distant subjects. Its compact dimensions (Ø119.8 x 98.8mm) and low power consumption (6W typical via PoE) make it suitable for ceiling-mount installations in space-constrained environments.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QND-6082R1 balances practical affordability with intelligent surveillance features. The motorized varifocal lens eliminates the need for multiple fixed-focal cameras during installation, reducing inventory complexity and deployment cost. WiseStream II codec optimization maximizes storage efficiency—critical for edge recording scenarios where microSD capacity is limited.

The 120dB WDR addresses a common indoor challenge: mixed lighting from windows and artificial sources. However, the 20-meter IR range and modest 2MP resolution target short-to-medium distance applications; recognize performance at full zoom reaches only 25.8 meters, limiting identification capabilities in large open spaces. The extensive video analytics suite and ONVIF compliance ensure vendor-neutral platform integration, making this camera a reliable choice for VMS systems from major manufacturers.

Product Documentation

Expert Analysis

Specifications

Type: Dome

Frame Rate: 30fps

Imaging Device: 1/2.8" 2MP CMOS

Resolution: 1920×1080

Max. Framerate: 30fps

Thermal Sensitivity (NETD: None

Pixel Size: None

Min. Illumination: 0.03 Lux color / 0 Lux IR

Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation

Video Transmission Distance: None

Focal Length (Zoom Ratio: 3.2~10mm(3.1x) motorized varifocal

Max. Aperture Ratio: F1.6(Wide)~F2.9(Tele)

Angular Field of View: H: 109.0°, V: 57.4°

Min. Object Distance: 0.5m (1.64ft)

Focus Control: Simple focus

Lens Type: DC auto iris

Mount Type: None

Optional Lens: None

Pan / Tilt / Rotate Range: 0°~350° / 0°~67° / 0°~355°

Pan Range: None

Pan Speed: None

Tilt Range: None

Tilt Speed: None

Rotate Range: None

Sequence: None

Preset Accuracy: None

Camera Title: Displayed up to 85 characters

Direction Indicator: None

Day & Night: Auto(ICR)

Backlight Compensation: BLC, WDR, SSDR

Wide Dynamic Range: 120dB

Digital Noise Reduction: SSNR

Digital Image Stabilization: None

Defog: None

Motion Detection: 4ea, polygonal zones

Privacy Masking: 6ea, rectangular zones

Gain Control: Low / Middle / High

White Balance: ATW / AWC / Manual / Indoor / Outdoor

LDC: Support

Electronic Shutter Speed: Minimum / Maximum / Anti flicker (1/5~1/12,000sec)

Digital PTZ: None

Video Rotation: Flip, Mirror, Hallway view(90˚/270˚)

Analytics: Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line

Business Intelligence: None

Serial Interface: None

Alarm Inputs/Outputs: Input 1ea / Output 1ea

Alarm Triggers: Analytics, Network disconnect, Alarm input

Alarm Events: File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output

Audio In: None

Audio Out: None

IR Viewable Length: 20m(65.62ft)

IR Illuminator (Optional: None

Water Removal: None

Auto Tracking: None

Coaxial Protocol: None

Color Palettes: None

Temperature Detect Range: None

Temperature Accuracy: None

Temperature Detection: None

Additional: None

Ethernet: RJ-45(10/100BASE-T)

Video Compression: H.265/H.264: Main/High, MJPEG

Audio Compression: None

Smart Codec: WiseStreamⅡ

Video Quality Adjustment: H.264/H.265 bitrate, MJPEG quality control

Bitrate Control: H.264/H.265: CBR or VBR MJPEG: VBR

Streaming: Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)

Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP

Security: HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)

Application Programming Interface: ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

Webpage Language: English, Korean, Chinese, French, Italian, +more

Web Viewer: None

Edge Storage: Micro SD/SDHC/SDXC 1slot 128GB

RAM: 512MB RAM, 256MB Flash

Operating Temperature / Humidity: -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH

Storage Temperature / Humidity: -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH

Certification: None

Input Voltage: PoE(IEEE802.3af, Class3), 12VDC

Power (Max: 7.70W

Color / Material: White / Plastic

RAL Code: RAL9003

Product Dimensions / Weight: Ø119.8x98.8mm(Ø4.72x3.89"), 320g(0.71 lb)

Compatible Conduit hole / Gangbox: None

Hanging Mount (Dome: None

Skin Cover (Dome: None

Weather Cap (Dome: None

Power Module: None

Backbox: None

Detect (25PPM/ 8PPF: Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft)

Observe (63PPM/ 19PPF: Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft)

Recognize (125PPM/ 38PPF: Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft)

Identify (250PPM/ 76PPF: Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft)

Product Type: Dome

Connectivity: Wired

Features: WDR

Night Vision: IR

Power Type: PoE

PoE Class: 3

Form Factor: Dome

Compatibility: ONVIF

IR Distance: 0.5m

Built-in IR: Yes

Day/Night: Yes

Storage Support: microSD

HTTPS Encryption: Yes

WDR: WDR

Weight Lbs: 0.71

Housing Color: White

Environment Rating: Indoor

Warranty: 3-year warranty

Poe Power: PoE (802.3af)

Ir Lowlight: IR

Compression: H.265; H.264; MJPEG

Onvif: Yes

Audio: Audio input

Lens Focal Length: Varifocal

Camera: Title Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution

Ethernet Rate: RJ-45 (10/100BASE-T)

Application: Programming Interface SUNAPI (HTTP API)

Memory: 512MB RAM, 256MB Flash

Operating Temp: / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

Storage: Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Q&A

Reviews

Product Video

Have Questions?
