Hanwha PWR-DR12033 DIN Rail Mounting 33W Hardened Power Supply

High Temperature-Rated, Hardened Power Supply for Wisenet Transmission products -40?C to +71?C With -40?C Start-Up Universal AC input: 90 to 264 VAC, …

Add to cart for sale price
$99,999.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Hanwha PWR-DR12033 DIN Rail Mounting 33W Hardened Power Supply

$99,999.99
Add to Cart

Overview

SKU: PWR-DR12033
Availability: No Longer Available
Description
  • High Temperature-Rated, Hardened Power Supply for Wisenet Transmission products
  • -40?C to +71?C With -40?C Start-Up
  • Universal AC input: 90 to 264 VAC, 47-63Hz
  • Supplies 12VDC 33 Watts (2.75A)
  • Adjustable output voltage range support
  • Mounts on standard 7.5 or 15 mm DIN-rail
  • Small package for limited space installations, fan-less design
Expert Analysis
Specifications
Rated Input Voltage: 90 to 264 VAC or 120 to 375 VDC
Input Current: 115 / 230 VAC, 680 / 410 mA
Line Frequency: 47 to 63 Hz
Inrush #urrent: 115 / 230 VAC, 25 / 50 A
Power Dissipation: 230 VAC, 7.3 W
Voltage Accuracy: 0.01
Minimum Load: 0
Line Regulation: ±1%
Voltage Trim Range: 12 to 14 VDC
Hold up time: 115 / 230 VAC, 20 / 100 ms
indicator threshold: 12 V: 9 to 10.8 VDC
Output Wattage: 33 Watts
Output Voltage: + 12 VDC
Output Current: 2750 mA
Effeciency min/typ: 80% / 80%
Isolation Resistance: Input-Output, @ 500VDC, 100 MΩ
Derating: +56º to 71ºC, max 2.5% / ºC
Cooling: Normal convection (Recommend all sides 25m/m free space)
Input fuse: 250 VAC internal T2A
Internal Surge Protection: IEC 61000-4-5
Rated Over Load Protection: 110 - 150 %
Over voltage protection: Auto Recovery 12 V: 15 to 16.5 VDC
Degree of protection: IP20
Indicating LEDs: DC ON: At Start Up (Green) DC LOW: After Start Up (Red)

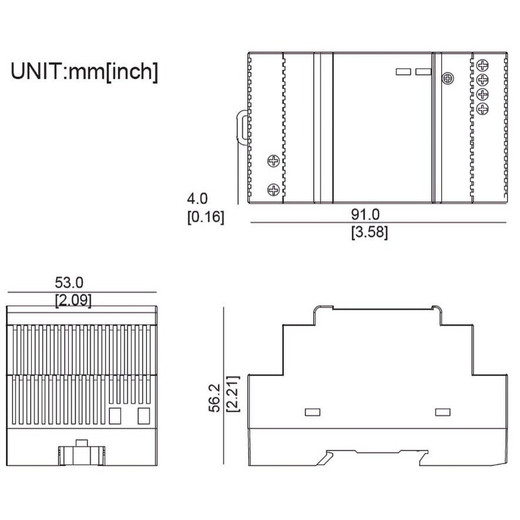

Size: 3.58 × 2.09 × 2.22 in (9.1 × 5.3 × 5.65 cm)
Weight Environmental: 0.42 lb / 190 g
MTBF: >500,000 hours @ 40ºC (104ºF)
Operating Temperature: -40˚ C to +71˚ C (-40ºF to 160ºF)
Storage Temp: -40˚ C to +85˚ C (-40ºF to 185ºF)
Relative Humidity: 20% to 90% (non-condensing)
UL / cUL: UL 508 Listed UL 60950-I, UL 1310 Class 2 Power (24LS model only) recognized ISA 12.12.01 (Class I, Div 2, Groups A, B, C, & D)
TUV: EN 60950-I, CB scheme
CE: EN 61000-6-3, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 55024, EN 61000-4-2 Level 4, EN 61000-4-3 Level 3, EN 61000-4-4-4 Level 4, EN 61000-4-5 L-N Level 3, EN 61000-4-6 Level 3, EN 61000-4-8 Level 4, EN 61000-4-11, ENV 50204 Lev
Vibration: Meets IEC 60068-2-6 Rail Mount: 10 - 500 Hz, 2G, 60 min for each Axis
Shock: Meets IEC 60068-2-27 15G, 11ms, 3 Axis, 6 Faces, 3 times for each Face
