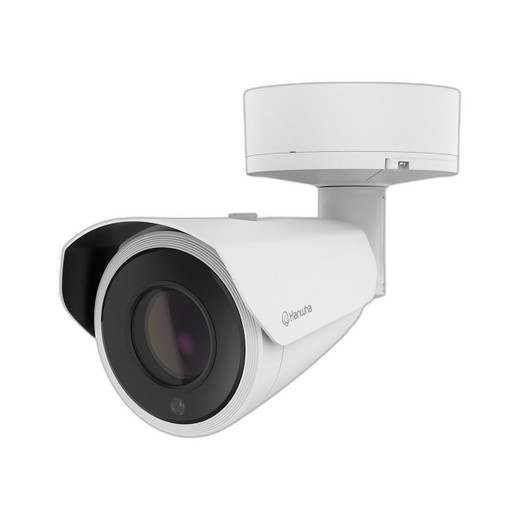

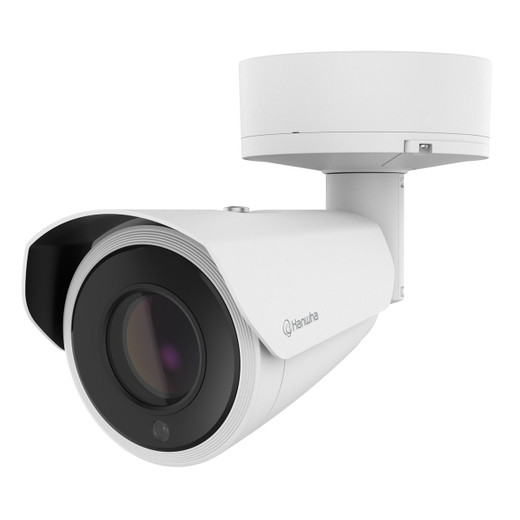

Hanwha PNO-A9311R 8MP Outdoor AI IR Bullet Camera

Hanwha PNO-A9311R 8MP Outdoor AI IR Bullet Camera

Overview

The Hanwha PNO-A9311R is a purpose-built outdoor bullet camera engineered for large perimeter and critical infrastructure surveillance. It pairs an 8MP sensor with a 31x motorized varifocal lens, delivering detection and identification across extreme focal ranges—from wide area monitoring to vehicle plate recognition at distance. The on-camera AI engine performs object detection and classification without offloading to external servers, keeping bandwidth predictable and analytics responsive. Outdoor durability is non-negotiable here: IP66/IK10 ratings mean rain, dust, and vandalism attempts won't degrade operation across the -40°C to +55°C temperature spectrum.

Key Features & Deployment Benefits

• 8MP 1/1.8" CMOS sensor: Captures fine detail at distance. The larger sensor size (compared to 1/2.8" alternatives) preserves image fidelity in low-light preroll, reducing false positives when AI classifies objects at extreme zoom.
• 31x motorized varifocal lens (6.91–214.7mm): Eliminates the need for separate fixed-lens models across coverage zones. Wide angle handles parking lot perimeter; tele mode reaches vehicle plates or faces at 60+ meters for license plate capture and facial attribute recognition.
• 70-meter IR LED array (WiseIR): Extends night surveillance to distances most competitors cannot reach. Zero-lux operation means you're not dependent on ambient light; IR illumination is baked in and tunable per deployment.
• AI object detection and classification: Edge-based WiseAI engine detects persons, faces, vehicles, and license plates without streaming full resolution to a central server. Real-time alerts cut response time; people counting and crowd analytics run locally, reducing infrastructure strain.
• 120dB Wide Dynamic Range (WDR) with backlight compensation: Critical for installations facing windows, reflective surfaces, or mixed sun/shadow scenes (e.g., building entrances, toll booths). SSDR (Smart Sensor Dynamic Range) adapts exposure per zone, preventing blown highlights when a subject moves from shadow to direct sunlight.
• H.265 + H.264 + MJPEG codec support with WiseStream II/III: H.265 cuts storage footprint roughly 40–60% versus H.264 at equivalent quality. On 24/7 multi-camera deployments, this translates to measurable NVR capacity savings or extended retention windows without hardware scaling.
• PoE+ powered (14.0W typical): Standard 802.3at PoE delivers all power and data via a single RJ-45 run. No separate 12V supply or power injector needed; simplifies cabling in outdoor runs and reduces points of failure.
• Dual microSD slot (up to 512GB total): On-device edge storage acts as a failsafe if network connectivity drops. Locally buffers video during WAN outages; recovered on reconnect or manually extracted for forensic review.
• IP66 / IK10 rating: IP66 means pressurized water jets and dust ingress won't cause leaks or sensor contamination. IK10 handles direct impact from a 5kg hammer at 40cm—relevant where camera placement puts it within reach of vandals or machinery.
• Digital image stabilization with gyro sensor: Mechanical vibration (wind, nearby traffic) is compensated in firmware. Reduces blur on tele-mode video when the camera is pole-mounted in exposed locations.

Integration & Compatibility

The PNO-A9311R supports ONVIF Profile S/G/T/M, ensuring interoperability with VMS platforms like Milestone XProtect, Genetec, and AcuSense ecosystems. SUNAPI HTTP API and Wisenet SDK enable custom integration. Enterprise security is baked in: TPM 2.0 (FIPS 140-2 Level 2), signed firmware, secure boot, and IEEE 802.1X network authentication protect against unauthorized access. MQTT alarm integration works with standard managed PoE switches for integrated power and event forwarding.

When to Choose a Different Model

If your deployment doesn't require motorized zoom or 8MP resolution, consider a lower-megapixel fixed-lens variant in the Hanwha outdoor camera line to reduce cost and complexity. If the scene is fully indoors or in a sheltered enclosure, an indoor bullet with standard operating temperature range will be more cost-effective. If edge storage isn't a requirement and your NVR has headroom, the microSD redundancy may not justify the premium.

Typical Deployments

Airport perimeter and airfield monitoring, where aircraft must be tracked across large areas with license-plate legibility; ports and logistics yards, where container identification and vehicle movement require both wide coverage and tele-mode precision; highway toll plazas and border checkpoints, where plate capture and facial attribute recognition drive compliance; critical infrastructure (substations, water treatment, chemical plants), where 24/7 outdoor surveillance with local analytics reduces bandwidth and latency constraints; retail parking lots and parking structures, where people counting and heatmap analytics inform occupancy management and loss prevention.

Frequently Asked Questions

Q: What's the maximum detection range for the PNO-A9311R?

A: In tele mode (214.7mm), the camera can reach 4,000 meters for vehicle observation depending on ambient lighting and lens aperture. At closer ranges (60–150m), facial attributes and license plates become legible with adequate illumination.

Q: Does the PNO-A9311R work with standard ONVIF VMS platforms?

A: Yes. It supports ONVIF Profile S, G, T, and M, enabling integration with Milestone XProtect, Genetec, and other compliant video management systems. Hanwha-specific features (WiseAI analytics, microSD failover) are accessed via SUNAPI or Wisenet SDK.

Q: What happens if the network connection drops?

A: The dual microSD card slots (up to 512GB combined) buffer video locally. When connectivity is restored, recorded video can be recovered or exported for forensic analysis without loss of event data.

Q: Can the lens be adjusted after installation, or is it fixed?

A: The 31x motorized varifocal lens is adjustable in software via P-iris control and electrical zoom. You don't need to physically access the lens once commissioned; focus and zoom are remote-configurable.

Q: Is the PNO-A9311R suitable for -40°C deployments?

A: Yes. Operating temperature range is -40°C to +55°C. Ensure the PoE power supply is also rated for that range, as standard 12V PoE injectors may de-rate below -20°C.

Q: How much bandwidth does H.265 save compared to H.264?

A: H.265 typically reduces bitrate 40–60% at equivalent visual quality, depending on scene complexity and motion. On continuous recording across multiple PNO-A9311R units, this translates to measurable NVR storage savings or extended retention without scaling infrastructure.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PNO-A9311R excels where optical reach and edge-based AI intelligence intersect. The 31x varifocal lens delivers genuine 4,000-meter detection capability in tele mode, while the WiseAI engine processes object classification locally—no codec overhead from centralized analytics servers. This combination is rare in the 8MP outdoor category and directly addresses perimeter and infrastructure surveillance where bandwidth is constrained and response time matters.

Technical Highlights:

• 31x motorized varifocal (6.91–214.7mm): Eliminates lens swaps or multi-camera angle clustering. A single PNO-A9311R covers wide perimeter monitoring and vehicle-plate legibility from the same mount point. The P-iris maintains consistent exposure across the entire zoom range.
• 70-meter IR with 0Lux operation: Infrared illumination is self-contained; no external IR floods required for night operation at distance. WiseIR tuning prevents washout on reflective surfaces (water, metal, wet pavement).
• H.265 codec with WiseStream II/III: On 24/7 deployments, bitrate reduction of 40–60% versus H.264 is material. A multi-camera NVR recording 8 units at 30fps will consume roughly 40% less storage or allow 60% longer retention without scaling.
• 120dB WDR and SSDR backlight compensation: Mixed-lighting scenes (sun facing glass, toll booths, gatehouse entrances) are handled without image artifacting. SSDR adapts exposure per zone, preventing the blown-out windshield problem common in vehicle plate capture.
• Dual microSD slots (512GB total): Acts as autonomous edge cache. If your NVR loses connection during a critical event window, the camera continues recording locally. Video is recovered on reconnect or manually exported.

Deployment Considerations:

• PoE power budget: At 14W typical draw, the PNO-A9311R won't strain a standard 48-port managed PoE switch, but verify switch PoE budget if deploying 8+ units on the same switch. Daisy-chaining or power injectors may be necessary on older infrastructure.
• Zoom & focus calibration: Motorized zoom and P-iris require initial commissioning to set parking position and focus. Network latency can introduce slight lag on zoom adjustment in software; for real-time pan-tilt-zoom, consider integrating with a PTZ controller if available in your VMS.
• AI model tuning: WiseAI object detection and facial attribute recognition perform well out of the box, but lighting conditions, subject distance, and obstructions affect accuracy. Test the camera in your actual deployment lighting before finalizing placement.

The PNO-A9311R is the right choice for perimeter and infrastructure deployments where a single motorized bullet can handle both detection and identification, network bandwidth is a constraint, and 24/7 outdoor durability is non-negotiable. Airports, ports, toll plazas, and utility substations are where this camera pays for itself.

Key Specifications:
Field of View: H: 60.92°, V: 35.26°
Color: White
