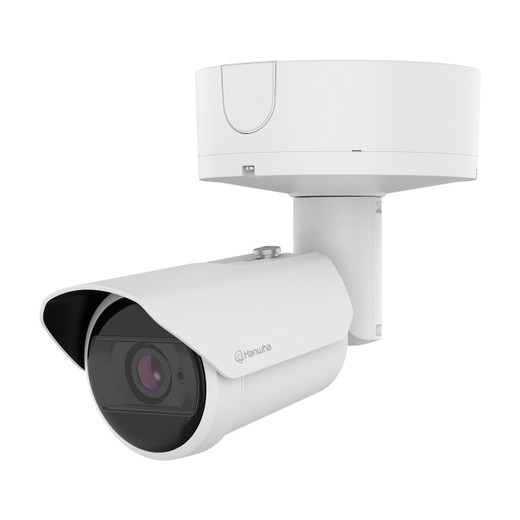

Hanwha PNO-A9082R 8MP Outdoor AI IR Bullet Camera
The Hanwha PNO-A9082R is an 8MP outdoor AI-enabled IP camera engineered for enterprise perimeter and critical infrastructure surveillance. Built on Hanwha's WN9 AI platform, it captures 3840 × 2160 resolution at 30 fps with exceptional low-light performance: 0.03 lux in color mode and true zero-lux imaging via integrated IR LEDs effective to 60 meters. The motorized 5.9–13.3 mm varifocal lens (2.25× zoom) eliminates the need to pre-mount multiple fixed-focal cameras—you adjust coverage remotely after installation, reducing deployment time and cost.
Key Features
- 8MP Resolution (3840 × 2160 at 30 fps): Delivers sufficient detail for facial recognition and license plate capture at outdoor ranges, reducing the need for supplemental close-up cameras in many deployments.
- Motorized 5.9–13.3 mm Varifocal Lens: Remote zoom and focus control means you avoid climbing ladders to adjust field of view after commissioning. Horizontal field of view spans 109° (wide) to 49° (medium telephoto)—one camera can cover what typically requires two fixed-lens units.
- Integrated IR Illumination (60 meters): Built-in 850nm LEDs provide true 24/7 monochrome imaging without mode switching or reliance on external light. Sixty-meter reach covers perimeter fencing and parking lot extremities in most enterprise layouts.
- 0.03 Lux Color Sensitivity: Maintains usable color detail in deep twilight and under minimal ambient lighting—critical for facial recognition and vehicle identification when supplemental lighting isn't practical.
- extremeWDR (120 dB): Handles high-contrast scenes (backlit gates, reflective surfaces, direct sunlight) without clipping shadows or highlights. Prevents the common failure mode where license plates or faces disappear in harsh outdoor lighting.
- WiseStream AI Compression with WiseNR II Noise Reduction: Reduces file size 40–60% compared to standard H.264, cutting storage footprint and bandwidth strain on your NVR or cloud recorder. WiseNR II cleans up low-light grain that would otherwise bloat motion-triggered clips.
- Digital Image Stabilization with Gyro Sensor: Compensates for wind sway, vibration from nearby traffic, or installation on flexible poles—eliminates the blurred-motion artifact that degrades AI analytics and viewer confidence.
- Dual microSD Card Slots: Supports up to 512GB per slot (1TB total). Enables edge recording and failover if your NVR connection drops, protecting critical footage without requiring a separate edge appliance.
- Operating Temperature Range –50°C to +55°C: Sustains function through arctic winters and desert summers without thermal shutdown or image degradation. Hard-coated front window resists scratches and weather coating breakdown.
- FIPS 140-3 Level 3 Secure Element: Hardware-backed cryptographic storage for keys and audit logs. Non-negotiable for government, defense contractor, and regulated finance deployments where encryption compliance is audited.
Integration & Compatibility
The PNO-A9082R supports ONVIF Profile S/T/G, enabling integration with NVRs and VMS platforms including Milestone XProtect, Hanwha Wisenet, and generic ONVIF-compatible systems. WiseStream codec (H.265/H.264) and dual codec output allow you to record high-bitrate color streams to a central recorder while streaming low-bitrate IR to edge or mobile clients. Draws 12.95W max via PoE+ (IEEE 802.3at), leaving headroom on standard PoE+ switches without requiring high-wattage injectors. Supports IPv6 and 802.1X for enterprise network segmentation.
When to Choose a Different Model
If you need fixed-focal cost reduction and can pre-determine exact coverage angles, consider fixed-lens Hanwha variants in the same outdoor portfolio. If your site requires extreme zoom reach (e.g., monitoring a distant building 200+ meters away), a dedicated PTZ camera with 30x+ optical zoom may be more appropriate. If you need subsecond response time from analytics triggers (people on perimeter), verify that your VMS platform supports low-latency streaming from this model's edge processing engine.
Deployment Considerations

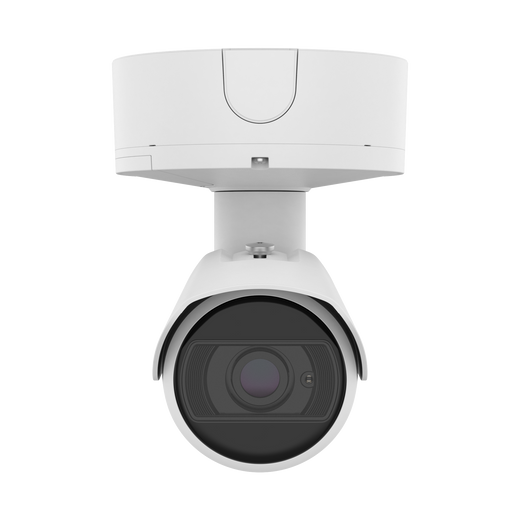

Mount this bullet on a horizontal pole or eave using the included swivel bracket; wall mounting is possible but may require custom brackets to achieve optimal angle without blind spots. Account for mounting height and obstruction when setting zoom: a 5-meter mounting height with 13.3mm telephoto lens will provide relatively narrow field of view—verify coverage in your site layout before ordering. The gyro sensor stabilization is effective for wind and vibration but does not replace mechanical damping on severely resonant structures. Verify your PoE switch has sufficient power budget: a 48-port switch with 375W total budget can typically support 20–25 of these cameras plus other PoE devices, depending on load.
Frequently Asked Questions
Q: What is the maximum microSD card capacity for the PNO-A9082R?
A: The camera has dual microSD card slots, each supporting up to 512GB, for a maximum total of 1TB of edge storage. This enables several days of continuous 8MP 30fps recording depending on compression settings and motion detection thresholds.
Q: Does the PNO-A9082R support H.265 compression?
A: Yes. WiseStream compression includes H.265 (HEVC) output, which reduces bandwidth and storage requirements 40–60% compared to H.264. Dual-codec streaming allows you to record H.265 to your NVR while serving H.264 to legacy VMS clients simultaneously.
Q: What is the infrared range, and will it work in complete darkness?
A: Integrated IR illumination is effective to 60 meters (196 feet). The camera achieves true zero-lux monochrome imaging with IR on, enabling 24/7 surveillance without external lighting or mode switching between day and night profiles.
Q: Is the PNO-A9082R suitable for NDAA Section 889 compliance?
A: Consult Hanwha's current NDAA compliance statement directly; the evidence provided does not confirm Section 889 status. FIPS 140-3 Level 3 certification supports regulated industry deployments, but NDAA compliance requires separate verification.
Q: What is the power consumption, and will a standard PoE+ switch power it?
A: Maximum power draw is 12.95W. A single IEEE 802.3at PoE+ port (30W budget) easily supports this camera without risk of power starvation. A typical 48-port PoE+ switch with 375W total budget can safely provision 20–25 of these units alongside other PoE devices.
Q: Can I mount the PNO-A9082R on a wall, or is it designed for ceiling mounting only?
A: The bullet form factor supports horizontal pole or eave mounting natively. Wall mounting is possible using standard brackets, though you may need custom fixtures to achieve optimal horizontal angle and avoid glare or shadows depending on your site lighting.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PNO-A9082R (often searched as PNO A9082R) stands out for its integration of AI analytics, zero-lux IR capability, and motorized zoom flexibility in a single hardened outdoor form factor. The 2.25× varifocal lens eliminates the deployment friction of pre-determining coverage angles and installing multiple fixed-focal cameras—you adjust field of view remotely after commissioning, saving weeks of re-work in large perimeter installations. The combination of 120 dB extremeWDR and built-in gyro stabilization addresses real-world challenges in outdoor surveillance where lighting contrast and mechanical vibration frequently degrade image quality and AI detection confidence.
Technical Highlights:
- WiseStream + WiseNR II: H.265 compression cuts storage footprint 40–60% versus H.264; WiseNR II noise reduction eliminates low-light grain that would otherwise inflate file sizes and slow playback on edge devices. On a 24/7 multi-camera deployment, this translates to 30–50% reduction in NVR storage capacity, a material cost factor.
- 60-Meter IR Range with 0.03 Lux Color: No mode switching between color and IR. The camera maintains usable color detail in near-total darkness, enabling continuous facial and license plate analytics without the false-negative artifact that plagues day/night toggles.
- FIPS 140-3 Level 3 Secure Element: Hardware-backed key storage and audit logging. Government and regulated finance deployments can satisfy encryption compliance audits without separate HSM infrastructure.
- Dual microSD Failover: Edge storage on both slots enables local recording if your WAN link drops—critical in sites without redundant connectivity to your central NVR.
Deployment Considerations:
- Gyro stabilization is effective for wind and light vibration (poles, eaves), but does not replace mechanical damping on resonant structures. If your mounting point oscillates visibly, consider additional isolation or a fixed-focus model mounted lower.
- The 5.9–13.3 mm zoom range covers typical perimeter and parking lot scenarios well, but does not provide long-range telephoto capability. If you need to resolve faces or plates beyond 40–50 meters, supplement with a dedicated PTZ or higher-magnification lens.
- Verify your PoE+ switch has headroom: 12.95W per camera leaves adequate margin on a 30W port, but a fully loaded 48-port deployment requires ~311W for 24 cameras—check your switch's total power budget before ordering.
Position the PNO-A9082R for enterprise perimeter and facility surveillance where 24/7 color and IR operation, motorized zoom flexibility, and FIPS-level security compliance are non-negotiable. Avoid this model if your site demands extreme zoom reach or submersion-rated enclosures; those require a PTZ variant or a different form factor, respectively.
