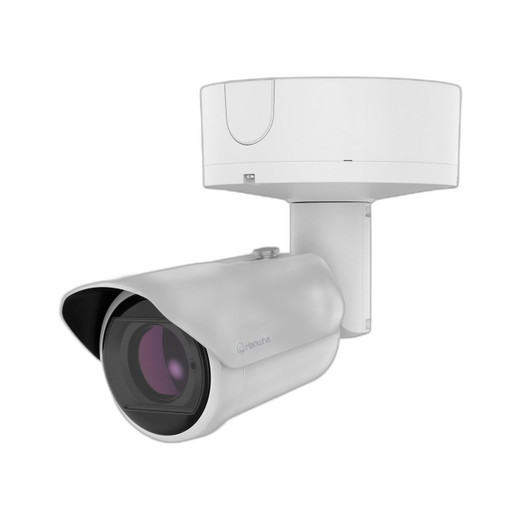

Hanwha PNO-A9092R 8MP Outdoor AI IR Bullet Camera

Hanwha PNO-A9092R 8MP Outdoor AI IR Bullet Camera

The Hanwha PNO-A9092R is an enterprise-grade 8MP outdoor AI IR bullet camera engineered for long-range surveillance in perimeter, wide-area, and mission-critical deployments. Built on the WN9 AI SoC platform, this camera combines ultra-high-definition 4K video, advanced analytics, robust weatherproofing, and FIPS 140-3 Level 3 security to meet the demands of harsh outdoor environments and demanding surveillance applications.

Key Features

• 8MP resolution (3840 × 2160) at up to 30 fps for detailed, actionable video
• Motorized 15–50 mm varifocal lens (3.33× zoom) with 42.7°–12.6° horizontal field of view for flexible long-range coverage
• Integrated IR illumination with true zero-lux capability in complete darkness
• Exceptional low-light performance: 0.03 lux in color mode
• Extreme Wide Dynamic Range (120 dB) for balanced exposure in high-contrast scenes
• WiseStream AI-based compression for bandwidth efficiency without sacrificing detail
• WiseNR II noise reduction for clean video in low-light conditions
• Digital image stabilization via integrated gyro sensor to counteract vibration and environmental movement
• Hardened bullet housing with hard-coated front window rated for extreme outdoor conditions
• Operating temperature range: –50 °C to +55 °C for arctic and desert deployments
• Integrated secure element (FIPS 140-3 Level 3 certified) for encrypted key storage and cyber protection

Technical Highlights

The PNO-A9092R's motorized varifocal lens enables remote zoom and focus adjustment during installation and ongoing system tuning, eliminating on-site lens adjustment complexity. Its extreme WDR capability (120 dB) ensures consistent image quality when the camera spans bright and dark zones simultaneously—critical for perimeter surveillance at dawn, dusk, or mixed indoor-outdoor boundaries. The integrated IR LEDs provide supplemental illumination to 0 lux, extending effective coverage into complete darkness without external lighting infrastructure.

Bandwidth efficiency is achieved through WiseStream compression, which intelligently allocates bitrate to high-motion regions and complex scenes while compressing static or uniform areas, reducing storage and network load. The built-in gyro-stabilization compensates for vibration from wind, vehicle movement, or building sway, maintaining focus and reducing motion blur in long-range telephoto shots.

Applications

• Perimeter and border surveillance
• Port, airport, and critical infrastructure monitoring
• Industrial and warehouse coverage
• Traffic and transportation hubs
• Remote site and unmanned facility surveillance
• Military and government installations requiring FIPS-validated cybersecurity

Eden Phillips

The PNO-A9092R stands out for its combination of optical performance, AI-driven efficiency, and military-grade security hardening. The WN9 AI SoC and native support for analytics reduce edge processing overhead, while the FIPS 140-3 Level 3 secure element addresses zero-trust and compliance mandates increasingly common in government, utility, and defense verticals. Its extreme temperature tolerance and robust mechanical design eliminate the need for environmental enclosures in most climates, reducing total cost of ownership.

The 15–50 mm motorized lens strikes a practical balance between flexibility and long-range identification capability, making it ideal for wide-area surveillance where fixed telephoto lenses would sacrifice situational awareness.
