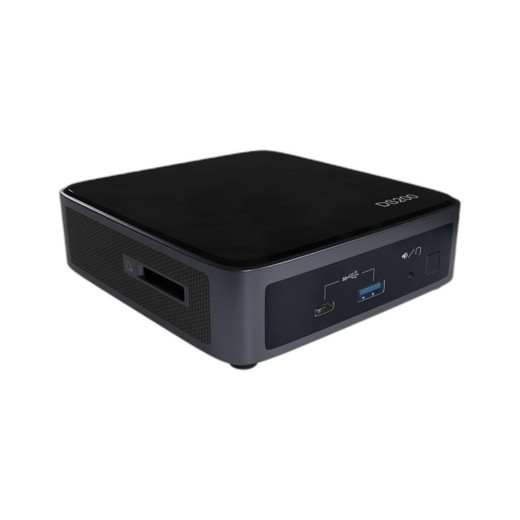

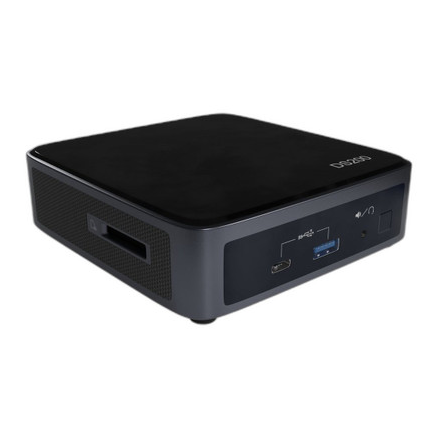

Hanwha DS200 Wisenet SKY Local Display Station

Hanwha DS200 Wisenet SKY Local Display Station

The Hanwha DS200 is a compact, network-attached local display station engineered for centralized camera monitoring without internet dependency. This versatile monitor controller supports flexible dual-display output configurations—single 4K or dual 1080p displays—making it ideal for security control rooms, retail environments, and distributed monitoring applications where reliable, low-latency performance is critical.

Key Features

• Dual display support: 1x 4K or 2x 1080p output via HDMI 1.4
• Up to 64 camera streams with 16 on-screen maximum display capacity
• Ultra-low latency under 200ms for real-time monitoring response
• 8 flexible layout configurations including 1x1, 2x2, 3x3, 4x4, and custom multi-view arrangements
• 5 static views plus 4 configurable view sequences for automated monitoring workflows
• Gigabit Ethernet with optional 802.11ac WiFi connectivity
• Web-based GUI for remote configuration and maintenance
• Embedded Linux operating system for reliable, secure operation
• Compact form factor with VESA 100x100/75x75 mounting included

Technical Specifications

• Network Throughput: Up to 160 Mbps maximum capacity
• Connectivity: Gigabit RJ-45 Ethernet, 802.11ac WiFi, 4x USB 3.1, 1x USB-C Display Output
• On-Screen Display: 4-string OSD entries for camera identification and status
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 0% to 70% RH, non-condensing
• Power: 19V @ 25W external AC-DC adapter (100-240VAC, 50/60Hz)
• Form Factor: Compact shelf/tabletop or VESA wall mounting
• Dimensions: 4.60" W x 1.41" D x 4.40" H
• Weight: 2.86 lbs (1.3 kg)
• Certifications: FCC, CE, UL, NOM

Applications

• Security control room centralized monitoring
• Retail and commercial surveillance command centers
• Distributed multi-site monitoring without cloud dependency
• Critical infrastructure surveillance requiring local processing
• Access control and event management displays

James Everett

The DS200 excels in environments requiring local, air-gapped monitoring infrastructure. Its sub-200ms latency and support for up to 64 streams make it suitable for enterprise-scale deployments, while the compact form factor and dual mounting options enable flexible installation in space-constrained control rooms. The combination of 802.11ac WiFi and Gigabit Ethernet provides redundant connectivity without sacrificing performance.

The configurable view sequences automate common monitoring patterns, reducing operator fatigue in continuous surveillance operations. Embedded Linux eliminates licensing complexity and reduces attack surface compared to Windows-based alternatives.
