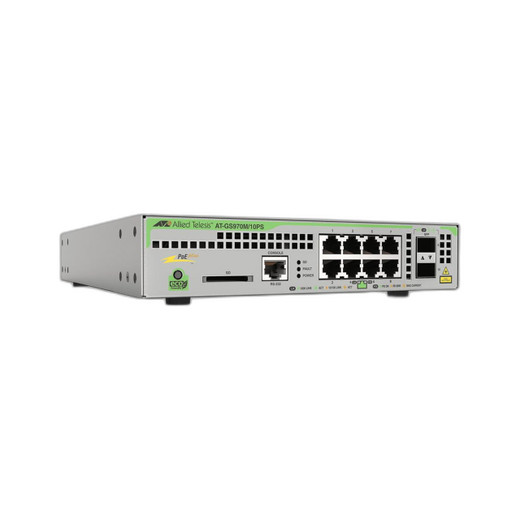

Hanwha AT-GS970M/10PS-R-10 8-Port PoE+ Managed Network Switch
The Hanwha AT-GS970M/10PS-R-10 is a compact managed Gigabit network switch engineered for enterprise security deployments that demand reliable Power over Ethernet (PoE+) functionality. Combining eight Gigabit PoE+ ports with dual SFP uplinks in a lightweight, fanless form factor, this switch delivers the performance and power budget necessary for distributed IP camera systems, wireless access points, and other networked security infrastructure without added complexity or noise.
Key Features
- 8 × 10/100/1000T Gigabit PoE+ Ethernet ports
- 2 × 100/1000X SFP ports for fiber or high-speed copper uplinks
- 124W total PoE power budget (8 ports @ 15W or 4 ports @ 30W)
- 20Gbps switching fabric with 14.9Mpps forwarding rate
- Fanless design operating at 33 dB for silent operation
- Compact chassis: 210 × 275 × 42.5 mm, 2.1 kg
- 180W maximum power consumption; 126 BTU/hr heat dissipation
Technical Highlights
The 20Gbps switching fabric and 14.9Mpps forwarding rate eliminate bottlenecks in surveillance networks, ensuring non-blocking performance across all ports even when handling multiple high-bandwidth video streams simultaneously. The dual SFP ports provide critical flexibility for network expansion and redundancy—supporting fiber connectivity for long-distance uplinks to core infrastructure or aggregation switches, while also accommodating high-speed copper modules for shorter runs.
The 124W PoE power budget is intelligently designed to support real-world deployment scenarios: simultaneously power all eight ports at 15W each for standard IP cameras and access points, or mix-and-match with up to four higher-power devices rated for 30W (such as PTZ cameras or heated dome enclosures). This eliminates the need for separate inline power supplies and simplifies cable management in ceiling cavities and equipment racks.
The fanless, passively cooled design generates only 33 dB of noise—ideal for deployments in noise-sensitive environments including offices, retail spaces, and educational facilities. At just 2.1 kg, the switch integrates seamlessly into DIN-rail racks or compact wall-mount installations without requiring reinforced mounting hardware.
Applications
Purpose-built for mid-market and enterprise security networks, this switch excels in:
- IP video surveillance systems with 6–12 camera deployments
- Distributed PoE wireless access point networks
- Building automation and access control systems
- Industrial IoT and remote monitoring installations
- Multi-site aggregation points requiring fiber uplink redundancy
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The AT-GS970M/10PS-R-10 occupies a strategic middle ground in the managed switch market. Its 124W PoE budget is sufficient for typical enterprise camera deployments without oversizing infrastructure, while the dual SFP ports provide the redundancy and distance advantages of fiber at a lower total cost of ownership than separate fiber converters. The fanless design and compact footprint make it ideal for remote or confined installations where noise and heat are constraints.
Managed features ensure VLAN segmentation, QoS prioritization, and SNMP monitoring—critical for security-focused network operations. For organizations deploying 8–16 PoE devices across multiple floors or buildings, this switch serves as an intelligent aggregation point that scales without introducing unnecessary complexity.
