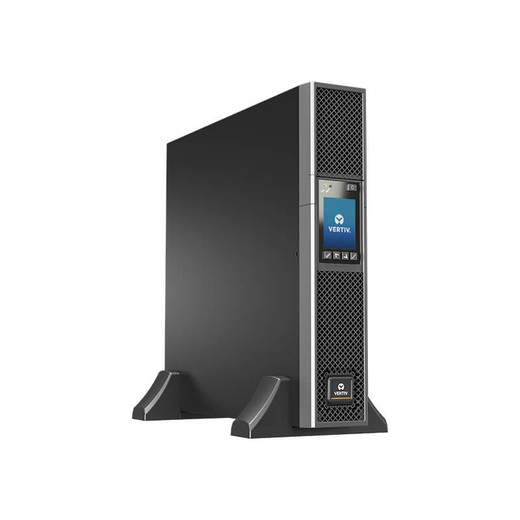

Vertiv GXT5-3000LVRT2UXL Liebert GXT5 3000VA TAA Online UPS
The Vertiv Liebert GXT5-3000LVRT2UXL delivers 3000VA/2700W of online double-conversion backup power engineered for mission-critical surveillance NVRs, network core switches, and access control panels. Built on true online topology with zero transfer time and continuous power conditioning, this 2U rack/tower UPS eliminates the voltage sags, harmonics, and frequency drift that cause camera drops and controller lockups. TAA compliant for federal and government installations, Energy Star 2.0 certified, and backed by a 3-year advanced replacement warranty—this is the power backbone integrators specify when uptime and regulatory compliance are non-negotiable.
Key Features
- Online Double Conversion Topology: Zero transfer time to battery, continuous voltage regulation, and pure sinewave output protect sensitive electronics from every power anomaly—sags, surges, harmonics, frequency drift, and total outage.
- 3000VA / 2700W Capacity: Powers a fully-loaded 16-channel 4K NVR with PoE switch, plus margin for access panels and network gear, with 0.9 power factor efficiency that delivers 90% of the VA rating as usable watts.
- TAA Compliant & Energy Star 2.0: Meets Trade Agreements Act sourcing requirements for federal and DoD projects; Energy Star certification reduces operating cost and qualifies for utility rebates in compliance-driven deployments.
- Scalable Runtime with External Battery Cabinets: Internal VRLA battery provides baseline runtime; field-expandable with Vertiv external battery cabinets (EBCs) to extend runtime from minutes to hours without replacing the UPS frame—critical for remote sites with long utility repair windows.
- Rack/Tower Convertible 2U Form Factor: Ships with tower stand and rack ears; mount in standard 19-inch rack or deploy freestanding in equipment closets without wasted RU or custom brackets.
- Programmable Outlet Groups: Seven total outlets (1× NEMA L5-30R, 6× NEMA 5-20R) with independent sequencing control—delay power-on for inrush-sensitive loads, shed non-critical peripherals to extend battery runtime, or restart locked equipment remotely via network card without a site visit.
- Generator-Friendly Input & Dual Bypass: Wide 60–150V input range accommodates portable generators and brownout conditions; internal and external maintenance bypass paths allow hot-swap servicing without powering down protected loads.
- SNMP/Modbus/BACnet Ready via Intellislot: Optional network cards integrate with building management systems (BMS), VMS platforms, and DCIM tools—trigger graceful NVR shutdown scripts, log power events to SIEM, or federate UPS status into centralized dashboards.
True Online Protection for Always-On Systems: The GXT5 runs in double-conversion mode 24/7—AC input charges the battery while a regenerated, tightly-regulated sinewave powers your load, completely isolated from utility anomalies. Unlike line-interactive or standby UPS topologies that react to problems after they start, online conversion prevents the problem from reaching your equipment. There's no relay to throw, no detection delay, no brief gap while the inverter spins up—your NVR, PoE switch, and access panels see clean, stable 120VAC ±3% whether utility power is perfect, sagging to 80V, or gone entirely. This zero-transfer-time continuity is why integrators specify online UPS for IP camera systems: dropping to battery mid-stream doesn't cause a camera to reboot, a PoE port to cycle, or a recording segment to corrupt. The GXT5's microprocessor-controlled inverter also corrects frequency drift (generator or unstable grid), filters harmonics from non-linear loads (switch-mode power supplies in cameras and encoders), and provides galvanic isolation that breaks ground loops responsible for video noise and Ethernet link flaps.
Scalable Runtime Without Rip-and-Replace: The internal VRLA battery delivers baseline runtime—typically 8–12 minutes at full 2700W load, longer at partial load (a 1500W NVR + switch draws roughly half capacity, extending runtime to 20+ minutes). When that's insufficient—remote sites with slow utility response, coastal areas with long storm outages, or high-value installations where every minute of recording matters—add Vertiv GXT5 External Battery Cabinets without replacing the UPS or rewiring outlets. EBCs connect via plug-and-play cabling, automatically detected by the UPS controller; stack multiple cabinets to scale runtime from 30 minutes to 3+ hours depending on load and battery count. This pay-as-you-grow model avoids over-provisioning: size the UPS for load capacity today, add runtime tomorrow when the client's risk tolerance or budget changes. Hot-swappable, user-replaceable battery modules mean you swap aged cells in under five minutes with zero downtime and zero tools beyond a screwdriver—no vendor service call, no maintenance window, no risk of touching live AC.
Programmable Outlets and Load Segmentation: Not all connected equipment has equal priority. The GXT5's seven outlets break into independently controllable groups: use the L5-30R twist-lock for the primary NVR, reserve four 5-20R receptacles for PoE switches and door controllers (critical loads), and assign the remaining two 5-20R outlets to a workstation monitor and peripheral switch (non-critical). During a power outage, configure the UPS to shed the non-critical group after 5 minutes on battery, extending runtime for the NVR and access panel by 40%. On power restoration, program a 60-second stagger between outlet groups to prevent inrush current from tripping upstream breakers when ten PoE cameras and four hard drives spin up simultaneously. For equipment prone to firmware hangs (we've all seen the PoE switch that needs a reboot every six weeks), schedule remote outlet cycling via the optional SNMP card—no truck roll, no after-hours site access, just a web UI click or automated script that power-cycles the problem device and logs the event.
Federal Compliance and Datacenter-Grade Build: TAA compliance certifies that the GXT5 is manufactured in a TAA-designated country with TAA-compliant components, satisfying Trade Agreements Act requirements for GSA Schedule purchases, Defense contracts, and federal-funded projects where country-of-origin matters. Energy Star 2.0 rating confirms high-efficiency operation (typically 92–94% in double-conversion mode, 98%+ in ECO mode), reducing heat output and cooling load in rack environments—important when you're adding 2700W of UPS to a comms closet with marginal HVAC. The UPS monitors battery temperature and adjusts charge voltage in real time (temperature-compensated charging), preventing overcharge degradation in hot environments and undercharge sulfation in cold ones—extending battery service life from the typical 3–4 years to 5+ in well-conditioned spaces. ANSI C62.41 Category B surge protection on input and output absorbs lightning-induced transients and switching spikes; EMI/RFI filtering suppresses electrical noise that can introduce Ethernet packet errors and analog video interference in hybrid systems.
Integration with VMS, BMS, and Monitoring Platforms: The included USB and RS-232 serial ports connect to a locally-attached server running Vertiv's Environet software or open-source NUT (Network UPS Tools), enabling graceful NVR shutdown scripts when battery hits 20% (write the buffer to disk, close files cleanly, power down the OS before the UPS cuts out). For distributed installations—corporate campuses, multi-building retail, regional government sites—add a Vertiv Intellislot network card (SNMP, Modbus TCP, or BACnet) to federate UPS status into your building management system or VMS health dashboard. Trigger email/SMS alerts when the UPS switches to battery (utility outage), when runtime falls below a threshold (generator didn't start), or when battery end-of-life is detected (schedule replacement before failure). Modbus RTU and BACnet MS/TP support integrates the GXT5 into industrial facilities and smart buildings where HVAC, lighting, and access already speak those protocols. SNMP traps feed Nagios, PRTG, or SolarWinds; you get the same infrastructure monitoring for power that you have for switches and servers.
Rack or Tower, 2U Density, Real-World Serviceability: The convertible form factor ships with both tower feet and 2U rack-mount brackets in the box—no accessory SKU to order separately, no discovery three weeks later that the client's rack rails don't match. Rack-mounted, the 21.3-inch depth fits standard network racks with rear clearance for cable bend radius; front-panel LCD and control buttons remain accessible for local diagnostics and configuration without pulling the unit. Freestanding tower mode works in equipment closets, under desks, or in makeshift IDF spaces where rack infrastructure doesn't exist. Front-access battery compartment and tool-free battery tray mean you replace a failed battery module in under five minutes without removing the UPS from the rack, without touching AC wiring, and without powering down protected loads—the internal bypass keeps the output live during the swap. Input and output connections are clearly labeled, color-coded terminal blocks accept 10 AWG wire for the L5-30P input, and the included output pigtail provides the L5-30R receptacle plus six 5-20R outlets pre-wired and strain-relieved—no field splicing, no guesswork about which neutral goes where.
Built for integrators who anchor their reputation on uptime and compliance, the Vertiv Liebert GXT5-3000LVRT2UXL combines online double-conversion protection, federal procurement eligibility, and scalable runtime in a 2U package that installs in twenty minutes and survives the next decade of power grid uncertainty. This is how you protect a $30K NVR installation and ten years of forensic video—not with a consumer-grade line-interactive brick, but with true online isolation, programmable load management, and the ability to scale runtime when the stakes get higher.
