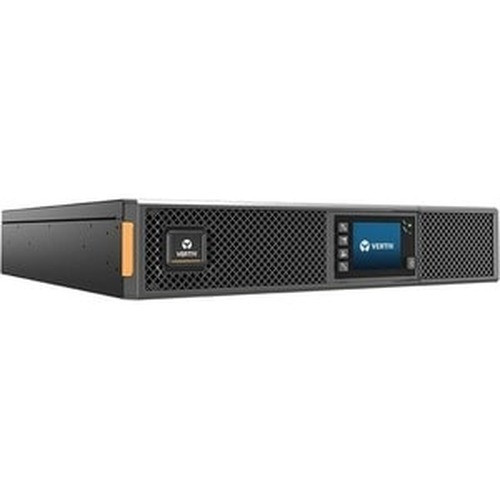

Vertiv GXT5-1500IRT2UXL 1500VA 2U Rack-Mount Online UPS

Overview

The Vertiv GXT5-1500IRT2UXL is a 1500VA / 1500W online double-conversion rack UPS in a 2U form factor, built for IT closets, edge deployments, and security infrastructure where utility power quality is unpredictable and downtime isn't an option. Unlike line-interactive designs that switch to battery only on outages, the GXT5's online topology continuously regenerates a clean sine wave output — meaning your connected equipment never sees the raw grid. At 200/208/220/230/240 VAC input compatibility, a single unit covers North American and international rack environments without a separate step-up transformer.

The GXT5 family runs on a DSP-based microcontroller, which handles real-time power conditioning decisions faster than legacy analog circuitry. Firmware has been actively maintained since 2018 (currently at V250 as of January 2025), which matters for long-lifecycle deployments: you're not buying into an abandoned platform.

Power Delivery

1500VA / 1500W capacity: Unity power factor (1.0) means the VA and watt ratings are identical — no derating penalty. An 1800W load on a competing 1500VA / 1200W unit would trip the breaker; this one doesn't force that math. Size your connected load at 80% of capacity (1200W) for thermal and battery headroom.

8x IEC outlet bank: The GXT5-1500IRT2UXL ships with 8 IEC C13/C19-compatible receptacles, covering standard server PSUs, PoE switches, NVRs, and managed network gear without requiring outlet adapters in most rack environments.

Wide input voltage range (200–240 VAC): The unit accepts the full international mains range, so it can absorb voltage sags and browndowns that would otherwise force a battery transfer — preserving battery cycles for true outages.

Management and Firmware

The DSP controller supports Vertiv's GXT5 firmware ecosystem (see GXT5-1500IRT2UXL firmware archive for the 500–3kVA LV/HV/I release track). Communication card options and SNMP monitoring integrate with standard data center infrastructure management (DCIM) workflows — confirm the specific card slot type against current rack UPS accessories before ordering.

Deployment Context

This unit fits naturally behind network video recorders, PoE switch stacks, and edge compute nodes where a 1U–2U budget and IEC outlet compatibility are standard constraints. For deployments needing extended battery runtime beyond the internal pack, the XL designation indicates compatibility with external battery modules — verify against Vertiv's Vertiv power infrastructure accessory lineup for the correct EBM model. If your load exceeds 1500W or requires 120VAC output for North American IEC-A outlets, evaluate the GXT5 3000VA variant or the 120VAC-output models in the same family.

Frequently Asked Questions

Q: What is the output voltage of the GXT5-1500IRT2UXL?

A: The GXT5-1500IRT2UXL outputs 200/208/220/230/240 VAC (selectable or auto-sensing depending on configuration) — it is the international/high-voltage variant, not the 120VAC North American model. Verify your connected equipment accepts this voltage range before deploying.

Q: What does
