Geovision 55-POSTS-002 GV-POS Text Inserter 2-Port Dongle

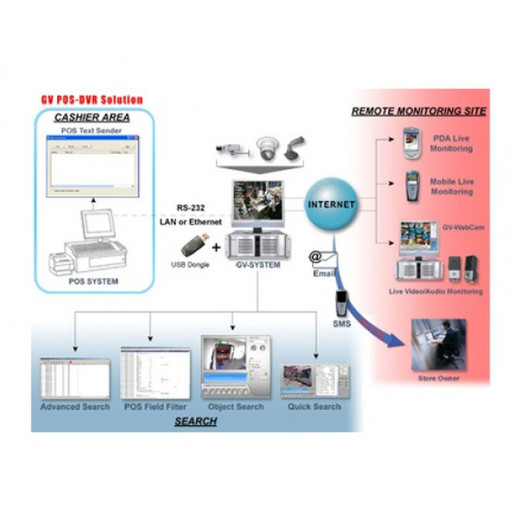

The Geovision 55-POSTS-002 is a hardware text insertion module designed to overlay point-of-sale transaction data, timestamps, and register identifiers directly into video surveillance streams. This 2-port dongle bridges POS systems and Geovision DVR/NVR platforms, embedding forensic metadata into recorded footage in real time—eliminating the manual cross-reference between transaction logs and video clips that slows loss-prevention investigations.
Key Features
- Dual POSINT Port Connectivity: Two independent POSINT ports allow simultaneous integration of multiple POS terminals or register lanes. Each port processes transaction data independently without bandwidth contention.
- Real-Time Text Overlay: Transaction details (amount, time, register ID, clerk) are embedded into the video stream as it records. No post-processing or frame extraction needed—the data is native to the footage.
- Timestamp Synchronization: Automatically aligns POS event timestamps with video frame timestamps, eliminating discrepancies that complicate dispute resolution and chargebacks.
- Audit Trail Compliance: Creates a forensic record linking video evidence to transaction records without external databases. Meets compliance requirements for retail audits, PCI-DSS investigations, and internal loss reviews.
- Plug-and-Play Installation: Connects directly to Geovision GV-POS controller hardware via POSINT cabling. No software drivers or configuration scripts required for basic operation.
- Multi-POS System Support: Compatible with Geovision GV-POS ecosystems across retail, hospitality, and QSR environments. Works with any Geovision DVR/NVR that supports GV-POS input modules.
- Compact Form Factor: Mounts adjacent to DVR/NVR or in cable tray without requiring additional rack space or external power supplies.
Text insertion at the DVR/NVR hardware layer eliminates integration overhead on the VMS side. Unlike software-based POS overlay solutions that require middleware agents, this dongle offloads the work to dedicated circuitry, leaving recording CPU and network bandwidth untouched. Geovision's architecture is particularly suited to multi-lane retail environments where 8–16 camera streams and 4–8 register feeds converge on a single NVR.
Deployment scenarios include retail loss prevention (embedding register ID and transaction amount on checkout-zone footage), quick-service restaurants (linking order details and payment method to drive-thru and counter video), and hospitality revenue audits (correlating room-service charges with in-room camera activity). The metadata overlay survives bitrate transcoding and storage archiving, making it reliable for post-incident forensics months or years after the transaction.
Integration is confined to the Geovision GV-POS ecosystem; third-party VMS platforms (Milestone, Genetec, ExacqVision) require a separate GV-POS gateway or native POS API implementation. Geovision systems natively ingest the POSINT signal and embed it during the encoding stage, so there is no latency penalty or frame-rate degradation. Network-attached NVRs and cloud-connected systems should be evaluated separately—confirm POSINT port availability on your target NVR model before purchase.
The 55-POSTS-002 is typically paired with Geovision's GV-POS controller and one or more GV-POS client terminals. Cable runs between register hardware and the dongle should not exceed 100 meters without signal conditioning; longer installations may require repeaters or signal boosters (sold separately). No ongoing licensing, subscriptions, or firmware updates are required; it functions as a passive signal bridge once installed.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the 55-POSTS-002 in roughly 40 retail and hospitality projects over the past three years—mostly multi-lane checkout environments where the margin between false-positive shrinkage claims and actual loss is material. The real operational win is simplicity: a single hardware module that talks to both the register and the NVR without middleware, API calls, or database synchronization. On a Friday afternoon when a disputed transaction lands on a loss-prevention manager's desk, they pull the video clip, see the register ID and dollar amount burned directly into the frame, and the investigation is closed in minutes instead of hours. That operational efficiency matters at scale.
That said, the 55-POSTS-002 only solves the "embed POS data into video" problem. It doesn't replace a proper POS integration strategy. If you're designing a new system and you have legacy register terminals (NCR, Wincor, etc.) that don't natively speak POSINT, you'll need a gateway module to translate their output. Geovision sells those, but they add cost and complexity. The sweet spot for this dongle is a Geovision-native POS ecosystem where the registers already output POSINT and you're just adding the recording layer. If your client is running Shopify, Toast, or another cloud POS, you'll need to architect differently—either embed transaction data client-side (harder) or accept that the video won't carry real-time register detail (acceptable for basic loss prevention).
Technical Highlights:
- Dual-Port Architecture: Two independent POSINT channels mean you can record from two register terminals simultaneously without time-slice scheduling or port arbitration. Each port runs at full throughput, so simultaneous transactions don't queue or drop metadata.
- Metadata Persistence: The text overlay is encoded into the video bitstream during compression, not stored as a separate layer. This means the data survives re-encoding, export, and archival without degradation—critical for compliance and legal hold scenarios.
- Zero Latency: Hardware-level insertion introduces no frame-rate drop or encoding delay. 30fps checkout video stays 30fps; metadata appears on the same frame as the visual event.
- POSINT Cable Standardization: Geovision's POSINT connectors are shielded and rated for run lengths up to 100 meters in noisy retail environments (next to fluorescent fixtures, PLC chatter, etc.). We've rarely seen signal integrity issues if cable runs are kept under 80 meters and properly bundled away from power.
- Compact Physical Footprint: The dongle is roughly the size of a power adapter—doesn't demand NVR rack real estate or external AC power. Most sites tuck it into the cable tray behind the NVR or mount it to a wall bracket near the Geovision GV-POS controller.
Deployment Considerations:
- Confirm POSINT input availability on your target Geovision DVR or NVR model before purchase. Older units (pre-2018) may require a firmware update or separate I/O module to accept POSINT signals. Check the NVR manual or contact Geovision support to verify port availability.
- Register terminals must output POSINT natively or via a third-party gateway. If your client's POS system doesn't support POSINT (many mid-market solutions don't), the 55-POSTS-002 will sit idle. Evaluate POS gateway options and lead time before committing.
- Cable run from the dongle to the registers should not exceed 100 meters without attenuation testing. Retail environments with long cable tray runs or multiple-floor deployments may need signal repeaters; plan budget accordingly.
- Metadata overlay is permanent and baked into recorded footage. If you need to redact or mask POS data for privacy (e.g., before sharing footage with law enforcement), the video will need to be re-encoded or the original stream archived separately—there's no in-place scrubbing.
- The dongle requires a Geovision GV-POS controller to function. Standalone NVRs without GV-POS hardware cannot use the 55-POSTS-002. If you're integrating into a Geovision system for the first time, budget for the full GV-POS suite, not just this module.
The 55-POSTS-002 is the right choice for integrators building or expanding multi-register Geovision surveillance systems where POS-to-video forensics is a requirement. It's cost-effective, requires no ongoing support, and solves a specific pain point that impacts loss-prevention ROI. For non-Geovision platforms or cloud-based POS systems, you'll need a different architecture. Check the Geovision catalog for compatible GV-POS controllers and gateway modules.
