Panduit CJSGK-XY Grounding Kit for Giga-TX Style
Overview
The Panduit CJSGK-XY is a grounding kit designed to provide essential electrical bonding for Panduit Giga-TX style modular connectors. Proper grounding is critical for protecting network infrastructure from transient voltage surges, lightning strikes, and electrostatic discharge (ESD), particularly in exposed or industrial environments. This kit ensures that connected equipment, such as network cameras or access points, is safely bonded to the facility's grounding system, mitigating potential damage and ensuring operational reliability.
Compatibility
This grounding kit is specifically engineered for use with Panduit Giga-TX style modular connectors. It is intended for applications where network cables are terminated with these connectors and require a robust grounding solution. Ensure your network cabling infrastructure utilizes Panduit Giga-TX connectors to achieve full compatibility and protective benefits.
Installation Notes
Installation requires a suitable grounding point (e.g., a grounding rod or bus bar) and appropriate tools for crimping or securing the grounding wire. The kit includes a grounding lug designed to attach to the connector housing and a wire for connection to the ground point. Follow manufacturer guidelines for torque specifications on the grounding lug to ensure a secure and effective bond. A minimum wire gauge of 10 AWG is recommended for the grounding conductor, depending on local electrical codes and the specific grounding point.

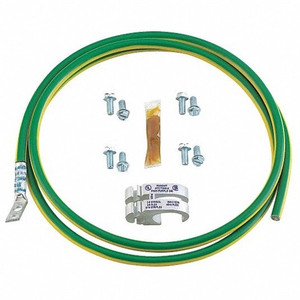

What's in the Box
- 1x Grounding lug
- 1x Grounding wire
- 1x Installation instruction sheet
