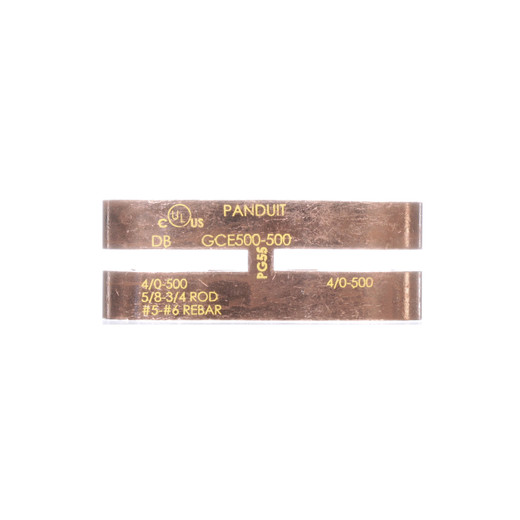

Panduit GCE500-500 E-Tap Grounding Connector
Overview
The Panduit GCE500-500 is a copper E-Tap grounding connector from Panduit's StructuredGround™ series, engineered for utility and ground grid applications where a reliable, code-compliant tap connection is required without cutting or splicing the main conductor. The GCE500-500 (often searched as GCE500 500) accepts installation in direct burial environments — a meaningful distinction on job sites where grounding runs pass through grade before reaching equipment rooms or exterior panels. If you're specifying grounding infrastructure for a security installation, utility yard, or substation perimeter, this connector addresses the mechanical and listing requirements in a single compact package measuring 3.7 in. tall and 1.38 in. wide.
Key Features
- cULus Listed to UL 467 for Direct Burial: UL 467 is the governing standard for grounding and bonding equipment in North American electrical installations. The cULus listing means an independent lab has verified this connector meets both U.S. and Canadian requirements — relevant when your AHJ (Authority Having Jurisdiction) requires documented listing on submitted plans. Direct burial listing eliminates the need for additional conduit or enclosure protection where the conductor transitions below grade, reducing installation materials and labor on outdoor grounding grids.
- Pure Copper Construction: Copper-to-copper connections are the baseline expectation in grounding systems — dissimilar metals introduce galvanic corrosion over time, which increases resistance and defeats the purpose of a low-impedance fault path. This connector is copper throughout, so it pairs correctly with copper grounding conductors without requiring anti-oxidant compound or bi-metal hardware.
- E-Tap (C-Tap) Geometry: The E-Tap form factor makes a branch connection off a continuous run conductor without cutting the main. That matters in ground grid topologies where the primary conductor must remain intact across multiple tap points — you tap the grid wire at each equipment grounding point rather than daisy-chaining cut ends, which maintains grid continuity if a single tap point ever loosens.
- StructuredGround™ Series: Part of Panduit's structured grounding line, the GCE500-500 is designed to integrate with Panduit's broader grounding and bonding connector ecosystem, which simplifies procurement when a project specifies Panduit end-to-end from cable tray through grounding terminations.
- Compact Form Factor — 3.7 in. × 1.38 in. × 1.61 in.: At under 4 inches tall and 1.4 inches wide, this connector fits in congested junction areas, pull boxes, and shallow trenches where a bulkier compression lug would require repositioning adjacent conductors. The compact envelope also simplifies inspection — the connection geometry is visible without disassembly.
- Single-Piece Package: Sold as a package quantity of one. That matters when you're specifying exact quantities per connection point on a bill of materials — you're not forced to purchase a box of ten when a single connector completes the job, and you can match your BOM line-for-line without managing leftover stock on a project site.
- Application: Utility / Ground Grid: The stated application covers exterior utility infrastructure and dedicated ground grid installations — environments that see wide temperature swings, soil moisture, and potential fault current. A connector rated for this application class is appropriately specified for security perimeter grounding, camera pole bases, gate operator grounding, and utility pad bonding, not just interior panel work.
Integration & Compatibility
The GCE500-500 is a compression connector — installation requires a compatible compression tool sized for the conductor gauges being joined (4/0 AWG and 500 kcmil, per the model designation). Verify your compression tool die set against Panduit's tool compatibility chart before ordering; using an undersized or mismatched die will produce a cold crimp that passes visual inspection but fails pull-test and thermal-cycle requirements. For projects pairing this connector with cable management or bonding hardware, Panduit's StructuredGround™ line includes compatible compression lugs, irreversible connectors, and grounding bars that share the same listing basis. This connector is intended for copper conductors; do not use with aluminum conductors without explicit manufacturer guidance on the specific application, as UL 467 listing parameters may differ by conductor material.
Frequently Asked Questions
Q: What conductor sizes does the Panduit GCE500-500 accommodate?
A: Based on the model designation, this connector is sized for 4/0 AWG and 500 kcmil (KCMIL) conductors. Verify the exact wire range in Panduit's product documentation before installation to confirm compatibility with your specific conductor gauge.
Q: Is the GCE500-500 listed for direct burial without additional conduit protection?
A: Yes. The GCE500-500 is cULus Listed to UL 467 specifically for direct burial grounding applications, so no additional conduit or enclosure is required at the burial point for code compliance — confirm with your local AHJ as local amendments may apply.
Q: What compression tool is required for the GCE500-500?
A: The GCE500-500 requires a compression tool with a die set compatible with 4/0 AWG and 500 kcmil conductors. Consult Panduit's tool compatibility guide to identify the correct die — using a mismatched die can result in an undercompressed connection.
Q: Can the GCE500-500 be used with aluminum conductors?
A: The connector is copper construction and the evidence supports copper conductor applications. For aluminum conductors, consult Panduit's product documentation and your AHJ — bi-metal applications may require different connector models or additional anti-oxidant treatment.
Q: Does the GCE500-500 meet Canadian electrical code requirements?
A: The cULus listing covers both U.S. (UL) and Canadian (cUL) standards under UL 467, so this connector is listed for use in both U.S. and Canadian grounding applications subject to direct burial requirements.
The GCE500-500 is a compression E-Tap connector I'd reach for on exterior ground grid work where the conductor has to stay continuous across multiple tap points. The cULus listing to UL 467 for direct burial is what matters most here — it's not an office-grade lug dressed up for outdoor use, it's listed for the environment where it actually gets installed.
Technical Highlights:
- UL 467 Direct Burial Listing: Covers both U.S. and Canadian grounding applications and specifically authorizes below-grade installation — eliminates the conduit-at-grade detail that adds cost and potential corrosion ingress points on exterior runs.
- E-Tap Geometry: Tap branch connections without cutting the main conductor — preserves ground grid continuity at every node, which matters when ground fault current needs a low-impedance return path across the full grid rather than through a chain of cut-and-splice points.
- Copper-Throughout Construction: No bi-metal interface, no galvanic corrosion over time. On a ground grid that's expected to perform for the life of the facility, that's the right material choice for conductors that won't be periodically inspected or re-torqued.
Deployment Considerations:
- Confirm your compression tool die set matches 4/0 AWG and 500 kcmil before mobilizing — a cold crimp on a grounding connector is a latent failure that won't show up until a fault event, and the connector's compact 3.7 × 1.38 in. envelope leaves little room for a re-do in a crowded pull box.
- Package quantity is 1 unit — price accordingly on your BOM for multi-tap grid layouts; the per-unit cost at $59.53 adds up quickly on a 20-tap perimeter grid, and bulk ordering in advance avoids field delays if supply is constrained.
Best fit for utility yard perimeter grounding, security camera pole base bonding, and gate operator grounding runs where the conductor passes below grade and the AHJ requires a listed, direct burial connection at each tap point.
