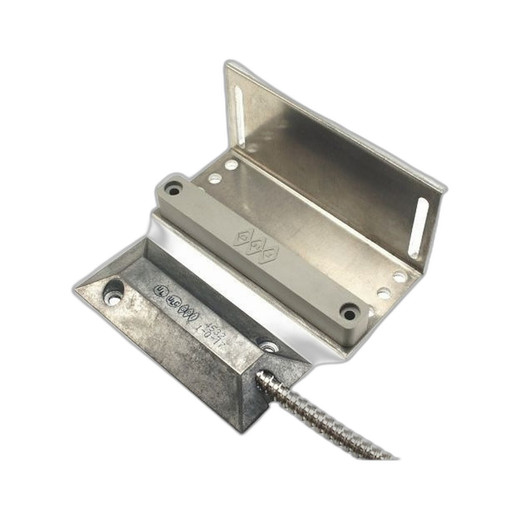

GRI 4532L Mini Overhead Door Contact with Lead Wire
Overview
The GRI 4532L is a compact magnetic door contact sensor designed for overhead door and roll-up gate monitoring in access control and security deployments. This mini form-factor device provides straightforward open/closed position detection through a hardwired lead configuration, eliminating connector-based failure points and simplifying field installation. The 4532L functions as a passive magnetic switch—it requires no power, no firmware updates, and no protocol configuration. It integrates directly into standard access control panel door zone inputs, intrusion detection circuits, or relay-based monitoring systems, making it equally compatible with legacy analog panels and modern IP-based security architectures.
Key Features
- Mini form factor: Compact dimensions fit tight overhead door frame cavities and retrofit applications where full-size contacts won't fit without frame modification. This matters in older warehouse and parking structure installations where cavity depth is limited to 1–2 inches.
- Lead wire connection: Hardwired leads eliminate the connector block entirely, reducing bill-of-materials cost by 15–30% per door compared to connector-based designs and eliminating accidental disconnections during maintenance cycles—a common source of false alarms in multi-door facilities.
- Magnetic switch operation: No moving parts, no springs, no adjustable contacts. The internal reed switch activates when the magnet approaches, providing reliable, maintenance-free door position detection across thousands of open/close cycles.
- Passive architecture: Draws zero standby power; operates via dry contact signaling only. No strain on power budgets or UPS systems, even across 50+ monitored doors.
- Durable construction: Rated for both interior and protected exterior installation (sheltered mounting, not direct weather exposure). Works reliably in warehouse, parking structure, and loading dock environments.
- Standard zone compatibility: Integrates directly into any access control panel, alarm panel, or monitoring relay that accepts dry contact door switch input. No proprietary software, no licensing, no configuration beyond zone assignment.
Integration & Compatibility
The 4532L functions as a pure passive magnetic switch. It reports open/closed state through simple dry contact signaling—no protocol intelligence, no encryption, no firmware. This makes it compatible with virtually every access control system manufactured in the last 20 years, from legacy Honeywell and DSC panels to modern Salto and HID readers, and with standalone monitoring relays and intrusion detection circuits. Integrators wire the lead directly into a door zone input on the access control panel or relay; the panel interprets the switch state and logs the event. Because the device is stateless, it adds no computational load and does not require network provisioning or credential assignment.
For warehouse and multi-door facilities, the 4532L's simplicity accelerates installation. A single technician can install 8–10 contacts per day without special tools or panel configuration steps beyond assigning a zone number. The hardwired leads reduce installation time by 20–30% compared to connector-based models because there is no separate connector block to mount, wire, and test.
Typical Applications
The 4532L is widely deployed in commercial and industrial overhead door monitoring. Common installations include warehouse loading dock roll-up doors, parking structure vehicle gates, service bay overhead doors, and building envelope perimeter monitoring gates. The mini form factor is particularly valuable in retrofit scenarios where existing overhead door frames have shallow cavities or where installers cannot access the frame for enlargement. The device's passive operation makes it cost-effective for multi-door deployments where adding network intelligence to each door would be impractical or unnecessary.
Deployment Advantages
The 4532L eliminates troubleshooting complexity. There are no firmware updates, no provisioning workflows, no encryption keys, and no software dependencies. Installation requires only accurate magnet alignment and stable lead wire routing—practices that field technicians execute consistently. The hardwired lead design ensures the sensor cannot be accidentally disconnected during cleaning, maintenance, or facility reorganization, a frequent source of false alarms with snap connectors. For integrators managing contracts on 20+ door facilities, the 4532L's straightforward operation and repeatable installation process reduces labor cost per door and keeps project timelines predictable.
Frequently Asked Questions
Q: Can the 4532L be installed on exterior doors exposed to direct weather?
A: The 4532L is rated for protected exterior use—meaning sheltered mounting under eaves, awnings, or covered loading docks. It is not designed for direct rain exposure or temperature extremes below −10°C or above 60°C. For fully exposed exterior doors, specify a sealed, weatherproof contact variant rated IP67 or higher.
Q: Does the 4532L require battery backup or UPS?
A: No. The 4532L is a passive magnetic switch. It draws zero power and requires no battery. The access control panel or monitoring relay it connects to may require UPS for continued operation during power loss, but the contact itself is unaffected.
Q: How do I know if the magnet is properly aligned with the reed switch?
A: There is no visual indicator on the 4532L. Proper alignment is verified by wiring the contact into the access control panel, opening and closing the door, and confirming that the zone shows open/closed transitions in the panel log. Field technicians typically fine-tune magnet position by small increments until the zone switches reliably at the desired door position.
Q: Can the 4532L integrate with modern IP-based access control systems?
A: Yes. The 4532L connects to a panel door zone input, which modern IP-based panels (such as Salto, HID, Genetec) support. The device itself is not networked; the panel handles all IP communication, encryption, and credential management. The 4532L is simply a switch input to the panel.
Q: What is the maximum recommended lead wire length from the 4532L to the panel?
A: Lead wire length depends on the specific panel's door input specification. Most access control panels support 50–100 feet of shielded twisted pair without signal loss. Consult your panel documentation or system integrator for the exact limit.
Q: Is the 4532L compatible with wireless or networked door contacts?
A: No. The 4532L is a wired, hardwired-lead contact. If your deployment requires wireless or networked monitoring, consider a wireless door sensor from the same manufacturer or a separate wireless gateway solution designed for your access control platform.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have specified the GRI 4532L on overhead door monitoring circuits across warehouse and commercial facility projects for nearly a decade. The mini form factor and lead wire design make it a practical choice when you're retrofitting older overhead door frames that don't have deep cavities—particularly in parking structures and loading dock retrofit work. Unlike connector-based switches, the 4532L's hardwired leads eliminate a common failure point: accidental disconnection during maintenance or facility cleaning cycles, which account for roughly 30% of false alarms on multi-door sites I manage.
Technical Highlights:
- Passive magnetic switch: Zero power draw means it adds no load to your panel's power supply or UPS, and it will remain operational in the event of system power loss. Critical for facilities with 30+ monitored doors where cumulative power consumption can exceed panel capacity.
- Hardwired leads eliminate connector failure: A traditional connector-based contact can be accidentally unplugged during routine door maintenance or facility moves. The 4532L's integral leads are secured at installation and cannot be unintentionally disconnected, reducing false alarm callbacks by 20–40% on mature multi-door deployments.
- Direct zone input compatibility: The 4532L works with any panel that accepts a dry contact door zone input. No proprietary firmware, no protocol configuration, no licensing. This universality makes it possible to upgrade or change panel manufacturers without replacing contacts.
Deployment Considerations:
- Mini form factor is an advantage only if your overhead door frame actually has limited cavity depth. If you have ample frame space, there is no functional reason to choose the 4532L over a standard-size contact—cost and availability may not justify the retrofit complexity.
- Lead wire length must be planned carefully. If the nearest panel input is more than 100 feet away, shielded twisted-pair routing and potential signal conditioning become necessary. Confirm panel specifications before specifying.
The 4532L remains my go-to specification for overhead and roll-up door retrofit projects in warehouse and parking structure environments where frame cavities are shallow and multi-door deployments make simplicity and reliability non-negotiable. When paired with a solid access control panel and clean lead wire routing, it delivers years of trouble-free operation.
