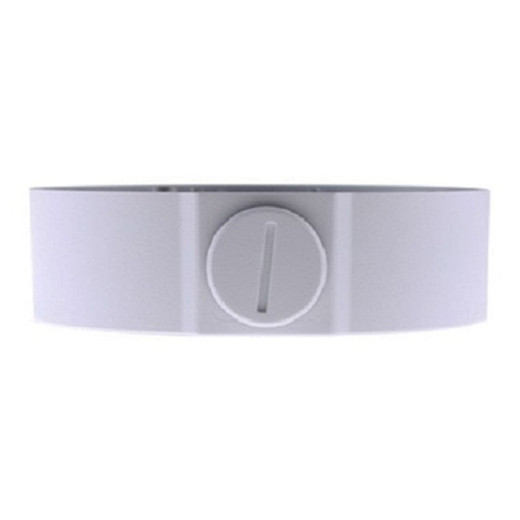

Geovision 81-MT21220-0001 Wall-Ceiling Box Mount
Overview
The Geovision 81-MT21220-0001 is a dual-purpose mounting bracket designed to support IP PTZ camera installations in both wall and ceiling configurations. This box mount provides integrators and installers with installation flexibility across diverse deployment environments, from control rooms and lobbies to outdoor perimeter and high-bay facility monitoring. The 81-MT21220-0001 is engineered as a universal mounting solution for IP PTZ camera systems, enabling rapid deployment without requiring environment-specific hardware variants.
Key Features
- Dual Mounting Orientation: Supports both wall and ceiling installation, reducing SKU complexity in integration projects
- IP PTZ Camera Compatibility: Purpose-built for IP-based pan-tilt-zoom camera systems with standard PTZ mounting interfaces
- Structural Stability: Box design provides rigid support for motorized pan-tilt mechanisms and optical zoom optics
- Cable Management: Integrated routing allows organized pass-through for network cabling and power connections
- Universal Mounting Pattern: Accommodates standard IP PTZ bracket attachment points across major manufacturers
- Compact Profile: Box form factor minimizes visual footprint while maintaining load-bearing capacity for camera head weight and motor torque
Integration & Compatibility
The 81-MT21220-0001 is classified as an IP PTZ camera accessory and integrates with any IP-based pan-tilt-zoom camera system using standard ONVIF-compliant interfaces. Network configuration and video stream setup depend on the host camera's firmware and the VMS platform in use. Integrators should verify mounting hole spacing and weight ratings against the specific PTZ camera model before installation. Cable routing through the box mount is compatible with standard Cat6A Ethernet and PoE++ power supplies commonly deployed in IP surveillance systems.
Installation Considerations
Wall mounting is recommended for fixed perimeter installations and indoor monitoring applications where ceiling space is limited or inaccessible. Ceiling mounting is ideal for high-bay facilities, large open areas, and locations requiring overhead camera placement. Integrators should assess structural load capacity of mounting surfaces and confirm adequate cable slack for PTZ motor operation. The box mount design accommodates both recessed and surface-mounted configurations depending on wall or ceiling composition.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Geovision 81-MT21220-0001 is a straightforward, purpose-built mounting accessory that solves a real integration challenge: eliminating the need to stock separate wall and ceiling brackets for IP PTZ camera deployments. During facility surveys and design phases, this dual-orientation capability reduces engineering time and simplifies bill-of-materials development.
Technical Highlights:
- Mount Flexibility: Wall and ceiling orientation support enables rapid adaptation to site-specific constraints without design rework
- IP PTZ Optimization: Purpose-built form factor accommodates the weight, torque, and cable management requirements of motorized pan-tilt-zoom optics
Deployment Considerations:
- Verify mounting surface load capacity before installation, particularly for ceiling mounts supporting PTZ camera heads exceeding 5 kg
- Pre-stage cable routing and confirm slack allowances for full pan-tilt motor range during integration testing
- Confirm compatibility with your specific PTZ camera's bracket attachment pattern and weight specifications
The 81-MT21220-0001 is a reliable accessory for integrators standardizing on Geovision IP PTZ systems. Its dual-mount design reduces logistics overhead and accelerates project delivery timelines across mixed deployment environments.
